General Module: Service and Repair

Vehicle Electrical System Control Module -J519-, Removing And Installing

Removing
- Remove driver's storage compartment:

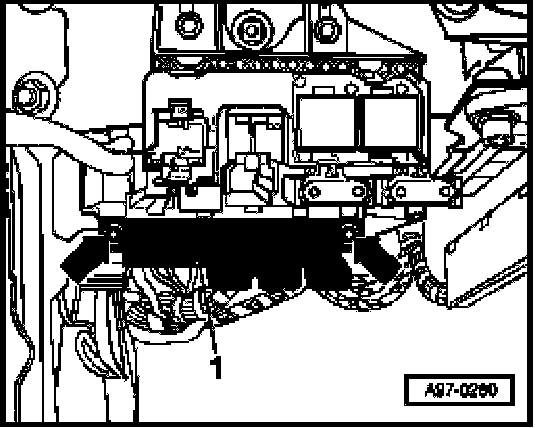

- Remove nuts -arrows-and detach vehicle electrical system control module -J519- -item 1-.

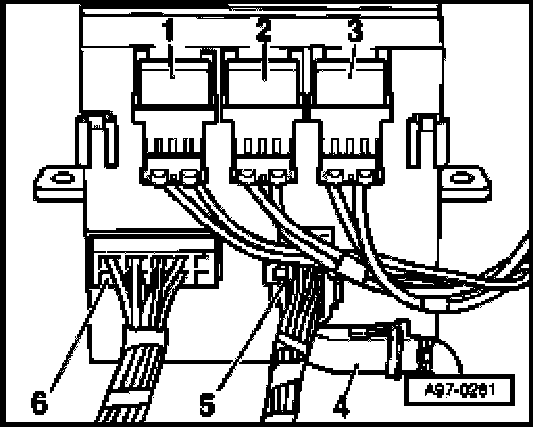

- Unclip fuse carriers -1- to -3-.
- Release catch at connector -item 4- and pull off.
- Unplug connectors -5- and -6-.

Installing
Installation is carried out in the reverse order.

Tightening torque
Component Nm
Vehicle electrical system control module to center tube for instrument panel 2.4
