Aerial Multiplexer (Gps) -R110-, Removing and Installing

Aerial Multiplexer (GPS) -R110- (Avant), Removing And Installing

Removing
- Remove the side trim on the left-hand luggage compartment storage.

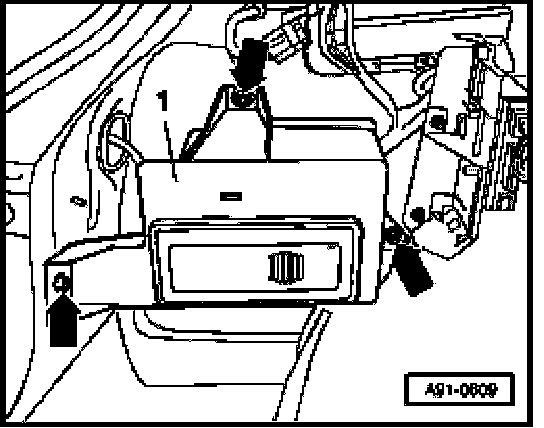

- Remove bolts -arrows-and remove basic holder -1-.

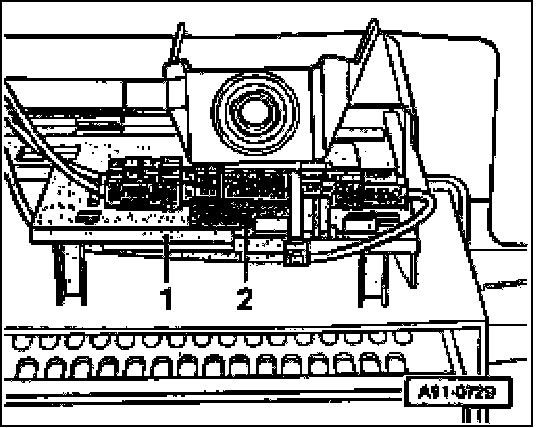

- Release mounting plate -1-.







- Remove the antenna multiplexer -2-.

Installing
- Install in reverse order of removal.
- Tighten threaded connections of basic holder to 14 Nm.
