Tail Lamp: Locations

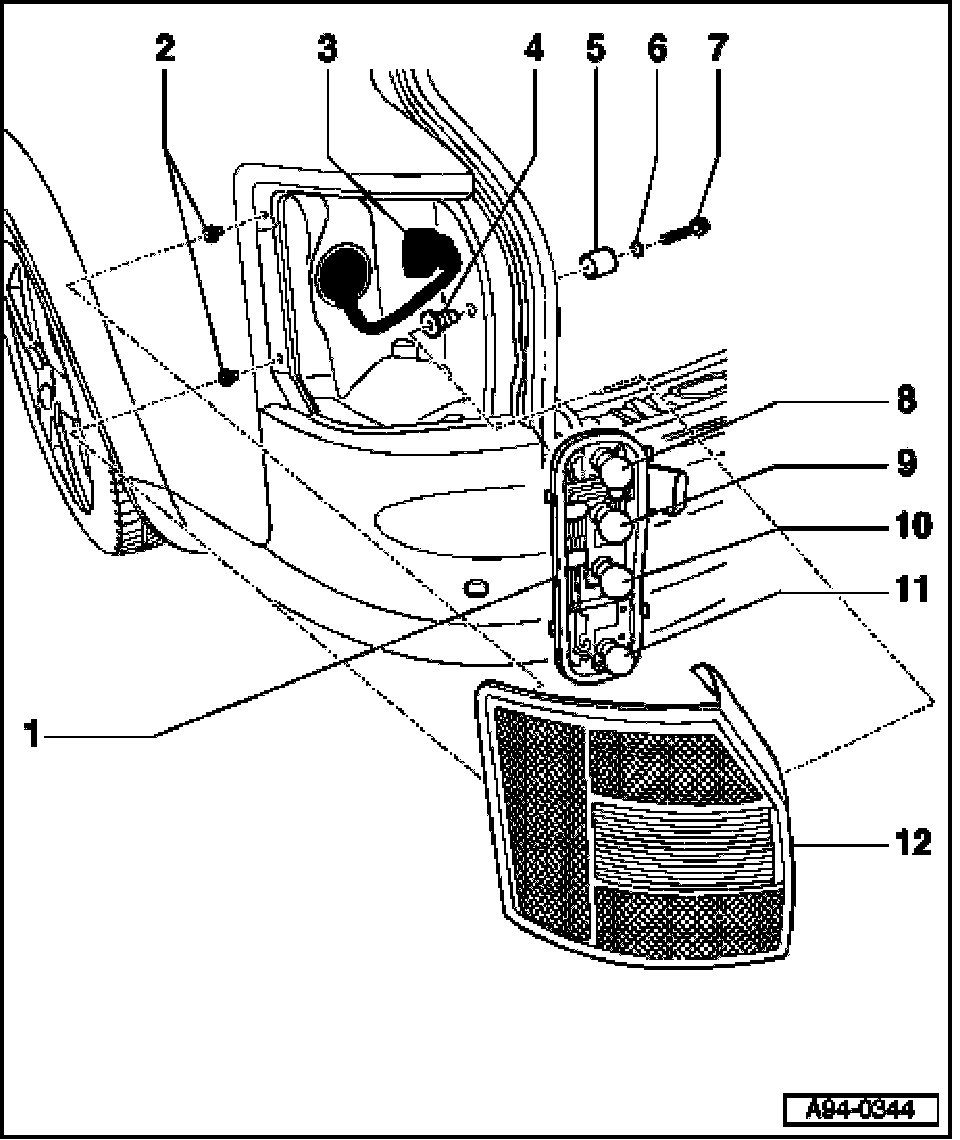

Overview (Avant)

1 - Bulb carrier
2 - Clip nut
- Qty. 2
3 - Electrical harness connector
4 - Securing piece
- Replace if seal is damaged
5 - Nut - 12 Nm
6 - O-ring
- Replace if damaged
7 - Bolt - 6 Nm
8 - Light bulb for fog light
- 12 V, 21 W
9 - Light bulb for turn signal
- 12 V, 21 W
- Orange
10 - Light bulb for back up light
- 12 V, 21 W
11 - Light bulb for brake light/rear light
- 12 V, 21/5 W
12 - Housing
