Wiper Motor: Service and Repair

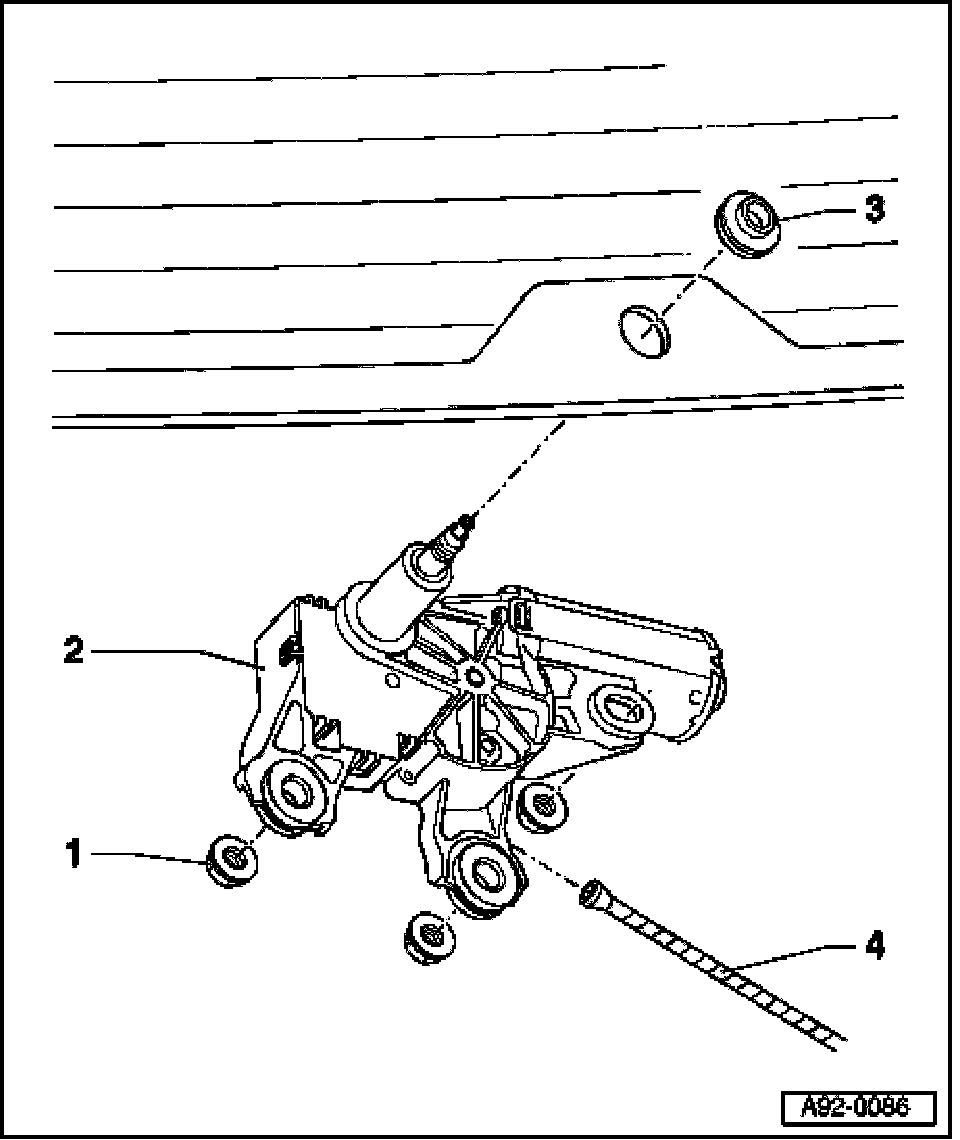

Rear Windshield Wiper Motor, Removing And Installing

1 - Securing nut - 8 Nm
2 - Wiper motor
3 - Rubber seal
4 - Water hose

Removing
- Remove rear windshield wiper.
- Remove bottom trim of rear lid.
- Disconnect electrical harness connector.
- Carefully pull off water hose -4- from connection line.
- Remove securing nuts -1-.
- Remove wiper motor -2-.

Installing
Installation is the reverse order of removal, while observing the following:

NOTE: Carefully insert rubber seal -3- into hole in rear window.

- Tighten securing nuts -1- (8 Nm).
- Water hose must audibly engage into spray jet connection.
