Oil Pan, Engine

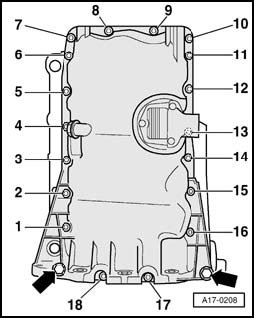

Oil PanInstall oil pan immediately and tighten bolts in sequence shown:
Pre-tighten bolts -1 to 18- 5 Nm in diagonal sequence.
Tighten bolts securing oil pan to transmission 45 Nm.
Tighten M10 bolts (arrows) 40 Nm.
Tighten bolts -1 to 18- 15 Nm in diagonal sequence.
