Windshield Washer Spray Nozzle: Service and Repair

Spray Jets, Removing And Installing

Removing
- Switch ignition off and remove ignition key.

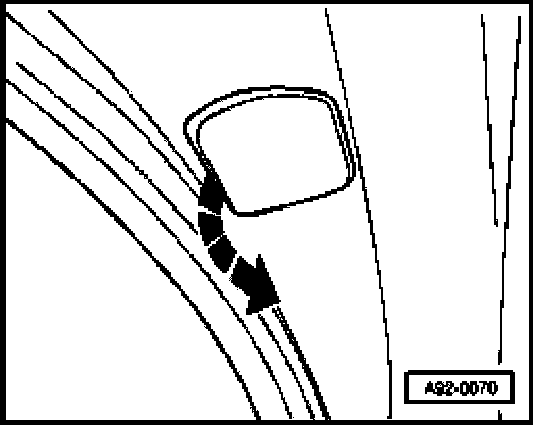

- Unclip base of spray jet from bottom of hood -arrow-.
- Disconnect washer fluid hose from undipped spray jet.
- Disconnect electrical harness connector, if present.

Installing
Installation is reverse of removal, paying attention to the following:

NOTE: Washer fluid hose must engage audibly into connection for spray jet.
