Wiper Blade: Service and Repair

Wiper Blades, Replacing

Removing
- Lift off wiper arm from front windshield.

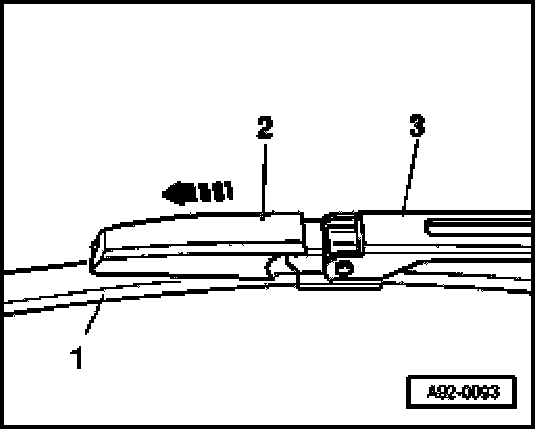

- Slide off retaining clip -2- from wiper arm -3- in direction of arrow.
- Remove wiper blade -1- downward from wiper arm.

Installing

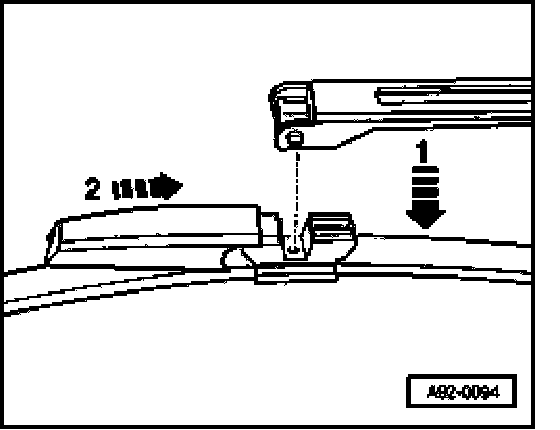

- Insert joint piece of wiper arm into guide on wiper blade -arrow 1-; make sure that the joint piece is inserted completely into guide.
- Lock wiper blade by sliding on retaining clip -arrow 2-.
