P1851

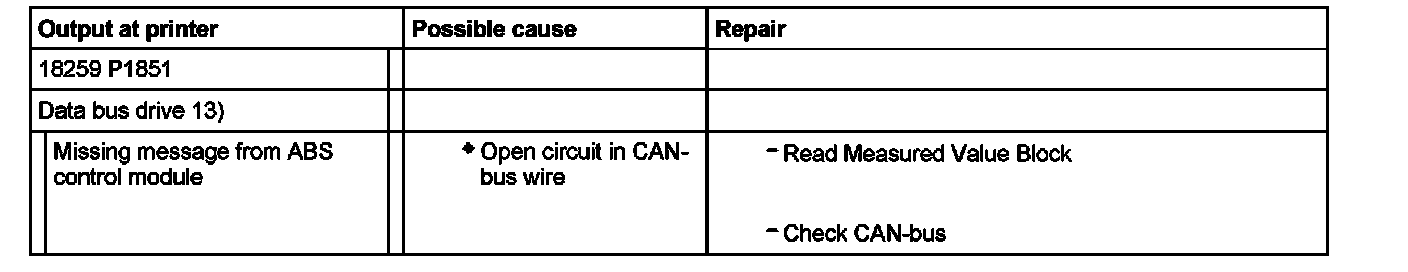

DTC 18259 / P1851





13) The data bus is also described as a CAN-bus.

Notes on DTC 18259 / P1851:
^ Condition for DTC recognition: The Transmission Control Module (TCM) is not receiving a signal from the ABS control module. However, communication with the Engine Control Module (ECM) and the instrument cluster is functioning.
^ The exchange of data and information between the Engine Control Module (ECM), ABS control module, Transmission Control Module (TCM) and instrument cluster is carried out over what is called a CAN-bus. All information signals are transmitted over 2 lines.
