License Plate Lamp: Service and Repair

License Plate Lamp, Removing And Installing

Removing
- Turn light switch to position "O".

CAUTION:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

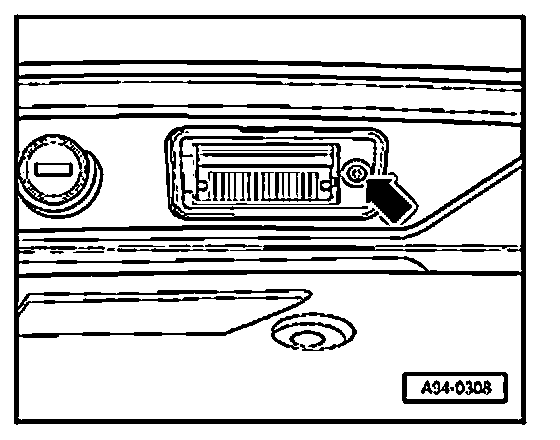

- Remove screw - arrow - in handle trim.
- Lever bulb holder out of handle trim.
- Remove bulb (12 V, 5 W) from bulb holder.

Installing
Install in reverse order of removal.
