Windshield Washer Spray Nozzle: Adjustments

Windshield Washer Spray Jets, Adjusting

Special tools, testers and auxiliary items required

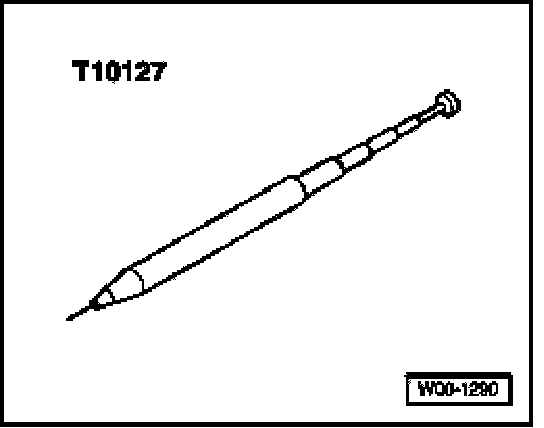

- Adjusting tool T10127 fitted with needle 3125/5 A







Adjustment

NOTE: The adjustment dimensions indicate the values for a moving vehicle, i.e. the spray from the jets is slightly offset when the vehicle is stationary.

- Use water-soluble pen to mark the four points on windshield:
- Dimension - a - = 250... 275 mm
- Dimension - b - = 465... 490 mm
- Dimension - c - = 270...415 mm
- Dimension - d - = 140... 225 mm

- Align individual washer jets with these points using adjusting tool.
