Windshield Washer Spray Nozzle: Service and Repair

Windshield Washer Spray Jets, Removing And Installing







Removing

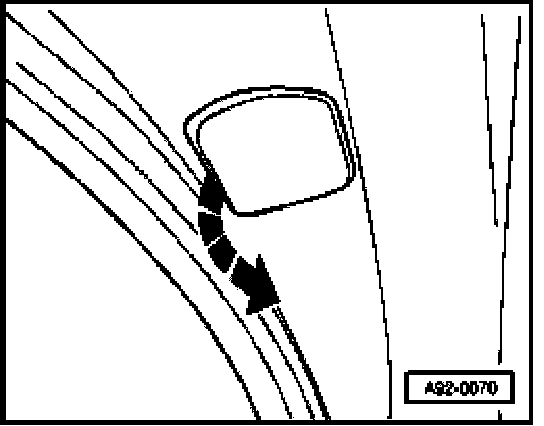

- Unclip base of spray jet (bottom) from front hood - arrow -.
- Remove fluid hose from unclipped spray jet.
- Disconnect electrical connection where applicable.

Installing
Install in reverse order of removal, noting the following:
- When installing, ensure the hose audibly engages in the connection on the spray jet.
