Audio System - Only One Station Is Displayed In List
91 Only One Satellite Radio Station Is Displayed And Playing With Activated Tuner91 09 23
2014223/3
March 25, 2009
Supersedes Technical Service Bulletin Group 91 number 08-99 dated November 10, 2008 for reasons listed below.

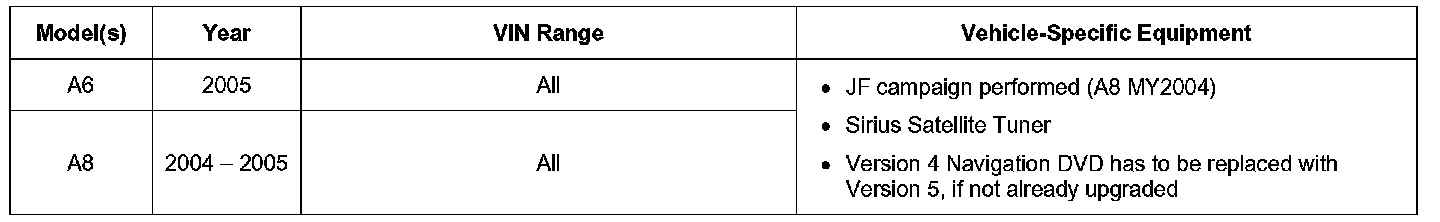

Vehicle Information
Condition

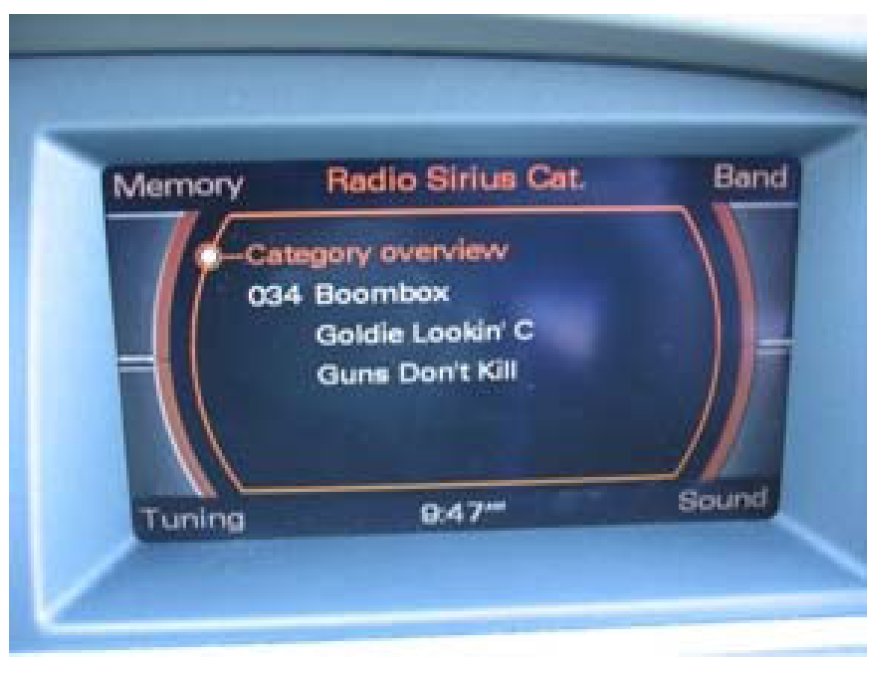

Only one satellite station is available in the station list. Other stations can be selected consecutively with Scan in the Tuning submenu. However, only one station is always listed and audible.
Technical Background
Due to a communication issue between the Sirius Satellite Tuner and Front Information Display Control Module J523, the complete station list is not transferred.
Production Solution
Software improvement.
Service
Do not replace the satellite tuner. A MMI system software update is required. Refer to Technical Service Bulletin 2019334 for directions to perform the update.
TIP:
Due to the incompatibility of Navigation DVD Version 4 and lower with the new MMI software, it may be necessary to replace the installed DVD with a Navigation DVD Version 5.
Warranty
All warranty claims submitted for payment must be in accordance with the Audi Warranty Policies and Procedures Manual. Claims are subject to review or audit by Audi Warranty.
Additional Information
The following Technical Service Bulletin(s) will be necessary to complete this procedure:
- TSB 2019334, 91 MMI High System software update (Zug 864 - update) procedure
All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
