Campaign - Electronic Park Brake Software Update: Overview
RVU - EPB control unit software update (IL)01 07 06
March 6, 2007
2012278/3. Supersedes Technical Service Bulletin Group 01 number 07-01 dated Jan. 5, 2007 due to addition of Saga warranty data.
Vehicle Information
Condition
Vehicle must meet ALL of the following criteria.
1. Procedure is valid only for vehicles that show the IL code in the OTIS View Campaign inquiry screen on the day of repair
2. Vehicle must be within the Limited New Vehicle Warranty.
3. Procedure must be performed within the allotted time frame stated in this Technical Service Bulletin. Procedure must also be performed on applicable vehicles in Dealer inventory.
This Required Vehicle Update (RVU) has been proactively released to prevent the following condition from occuring in the vehicle.
This Technical Bulletin is in effect for 15 months from date of publication as listed above. After that date, this Technical Service Bulletin will expire and no longer be in effect.
The Electronic Parking Brake (EPB) warning may turn on unnecessarily. This software update does not affect the operational functionality of the system.
Technical Background
On Audi A8 vehicles, the warning lamp for the electronic parking brake (EPB) may light up due to a memory overflow on the EPB control unit.
Production Solution
Updated EPB software implemented in the production of new vehicles.
Warranty

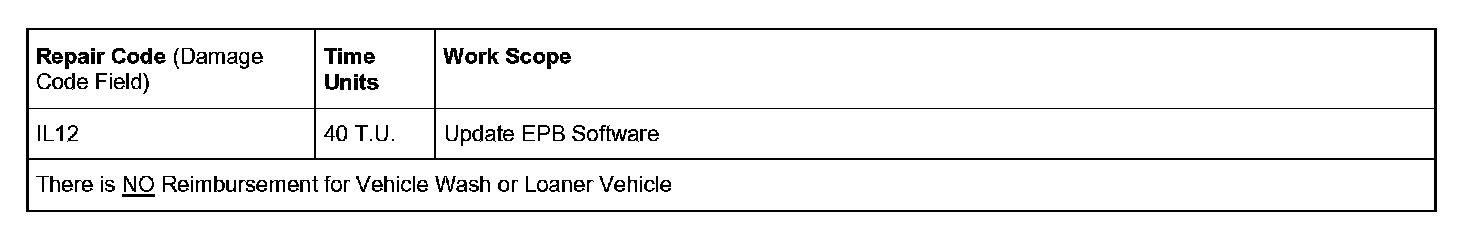

Required Vehicle Update Technical Bulletin Time Requirements/Reimbursement
To ensure prompt and proper payment, be sure to enter, immediately upon completion of the repair work, the applicable reimbursement code listed below. Claims will only be paid for vehicles that show the IL code in the ElsaWeb/OTIS View Campaign inquiry screen on the day of repair.
IL Data Entry Procedure Use Claim Type RC
The system automatically enters parts and labor applicable to the above listed code.
For vehicles that, according to your information, cannot be corrected or reached, and one of the codes below best describe the reason, please enter one of the applicable codes into the system:
^ IL20 Customer Refused Repairs
^ IL30 Total Loss
^ IL40 Vehicle Stolen
^ IL50 Vehicle Exported
IL 00 Saga Claim Entry Procedure
Additional Required Vehicle Update Technical Service Bulletins
Some of the affected vehicles may be involved in additional Required Vehicle Update Technical Service Bulletins. Please check your ElsaWeb/OTIS View Campaign inquiry screen so that any additional required work can be done simultaneously.
Required Vehicle Update Technical Service Bulletin Verification
For verification, always check the ElsaWeb/OTIS View Campaign inquiry screen. The ElsaWeb/OTIS system are the only binding inquiry and verification systems; other systems are not valid and may result in non-payment of a claim.
Help for Claim Input
For questions regarding claim input, contact your appropriate Warranty Claim specialist. Please do not contact the Campaign Helpline regarding claim input.
Required Customer Notification
Inform your customer in writing by recording on the Repair Order any and all work that was conducted on the vehicle, including any and all updates completed under this Technical Service Bulletin.
Required Parts and Tools
Additional Information
The following Technical Service Bulletin will be necessary to complete this procedure:
- 2011732; Software Version Management (SVM) Operating Manual
All part and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Dept. and service manuals for the latest information.
