Cell Phone - V60 Digital Phone Diagnostics Guideline: Overview
91 Telematics/V60 Digital Phone Diagnostics Guideline91 10 41
2009969/6
August 3, 2010

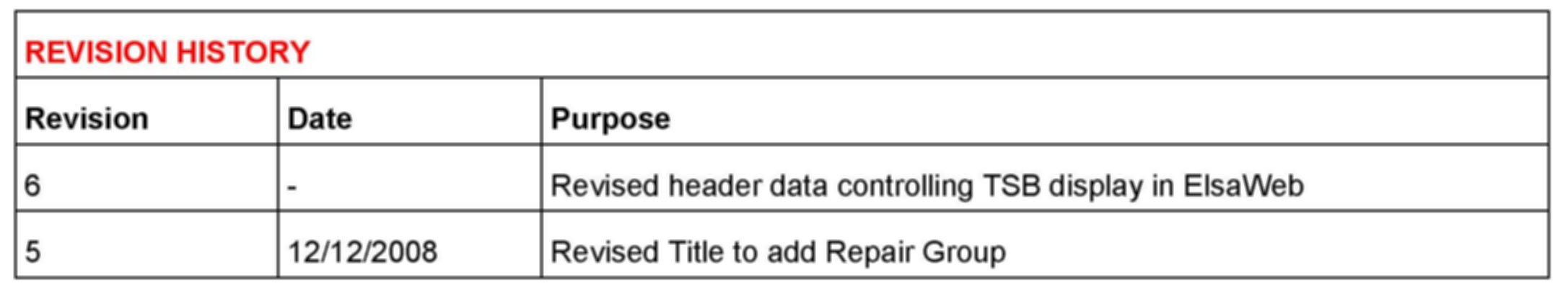

Supersedes Technical Service Bulletin Group 91 number 08-177 dated December 12, 2008 for reasons listed below.
Affected Vehicles
Condition
Telematics/V60 Digital Phone Diagnostics Guideline
The procedures outlined below will allow for complete integrated Telematics and V60 digital phone diagnosis.
Reference Material
For system overview and operations, please refer to the following pamphlets/ booklets:
^ SSP 993203 Audi Telematics by OnStar(R).
^ Audi Telematics by OnStar(R) Operating Instructions (Literature No.221.562.652.21).
^ 2004 Audi MMI Operating Instructions (Literature No. 243.562.691.21).
^ Quick Reference Guide Audi Telematics by OnStar(R) (Literature No. 221.562.655.21).*
^ Audi V60 Digital Phone Users Guide (Literature No. W53 123 3010).*
^ Selling Audi Communication System Brand Specialists Pocket Guide (Literature No.W42 552 503 74 062003).*
^ * Information also resides in AESIS under Additional Information.
Overview
The following Service Procedures apply to these modules:
^ Telematics (address word: 75).
^ Sound system (address word: 47).
^ Diagnostic interface for data-bus (address word: 19).
^ Steering wheel electronics (address word: 16).
^ Navigation (address word: 37).
^ 2004 A8L Display-/ control unit (MMI) (address word: 07).
Technical Background
Not applicable.
Production Solution
Not applicable.
Warranty
This TSB is informational only and not applicable to any Audi warranty.
Additional Information
All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
