Interior - Whirring Noise Form Console Area

68 08 12

2012954/2

December 2, 2008.

Supersedes Technical Service Bulletin Group 68 number 06-02 dated October 11, 2006 for reasons listed below.

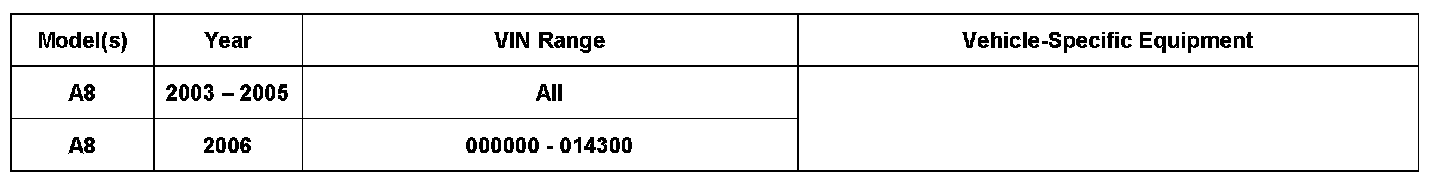

Affected Vehicles

68 Cup Holder Makes Noises

Condition





The center console makes a whirring noise when driving on poor roads.

Technical Background

The wooden trim on the cup holder cover may rattle against the cover.

Production Solution

Increased spacing between the lugs and the cover.

Service

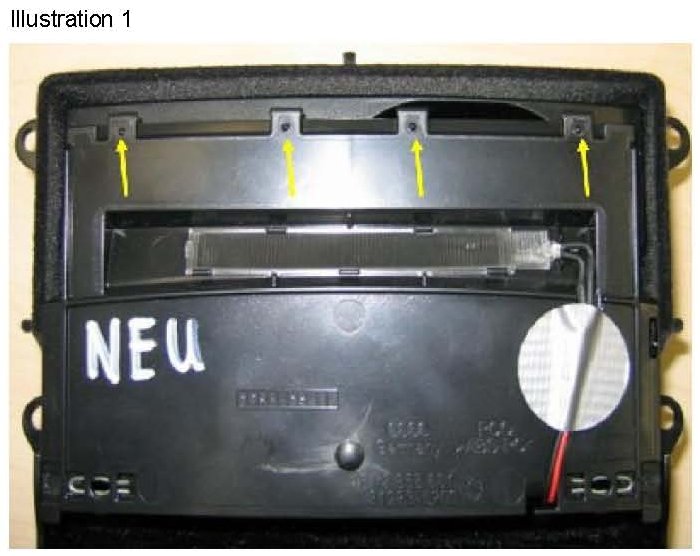

Illustration 1:

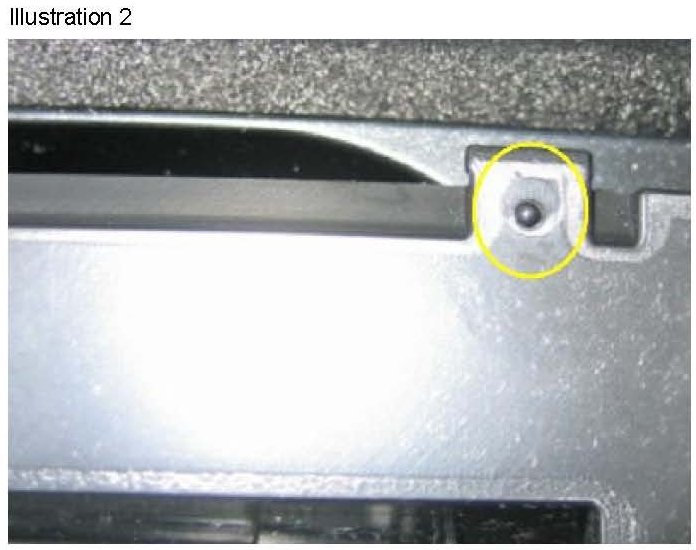

Illustration 2:

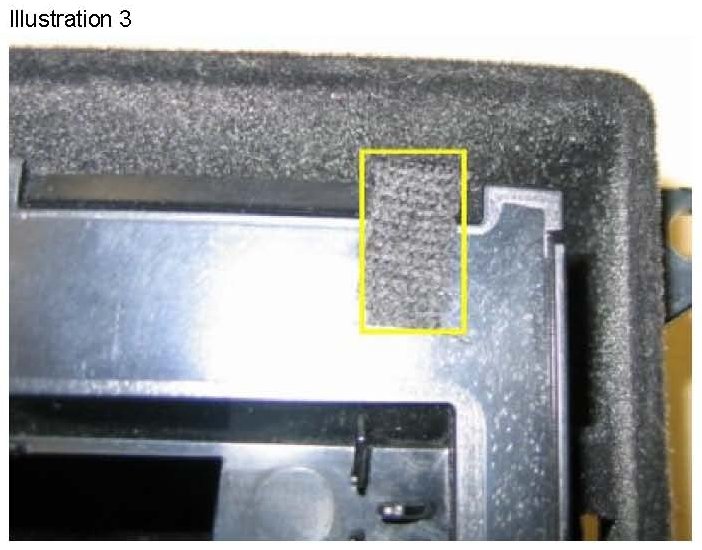

Illustration 3:

Unclip the wooden trim on the cup holder cover and stick thin textile adhesive tape on all four lugs. (See the yellow arrows in Illustration 1.)

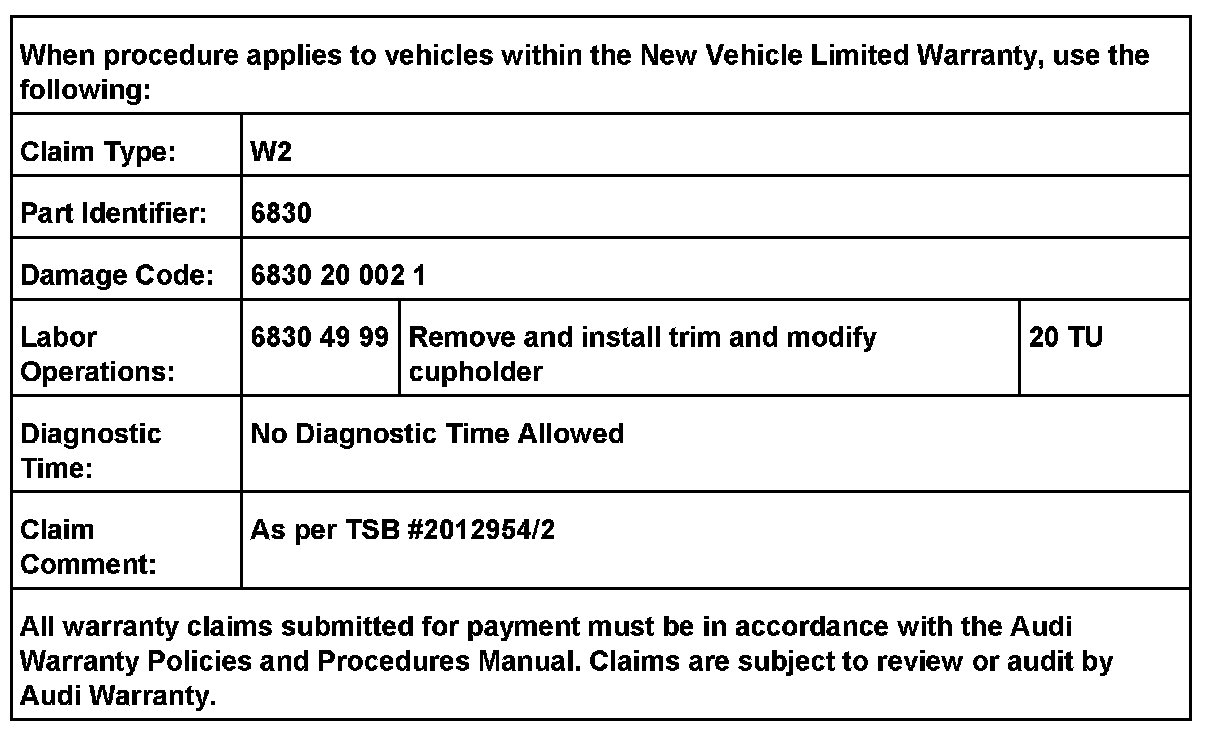

Warranty

All part and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Dept. and service manuals for the latest information.
