Lighting - Bulb Message After Headlamp Bulb Replacement

97 08 10

2016810/2

November 6, 2008.

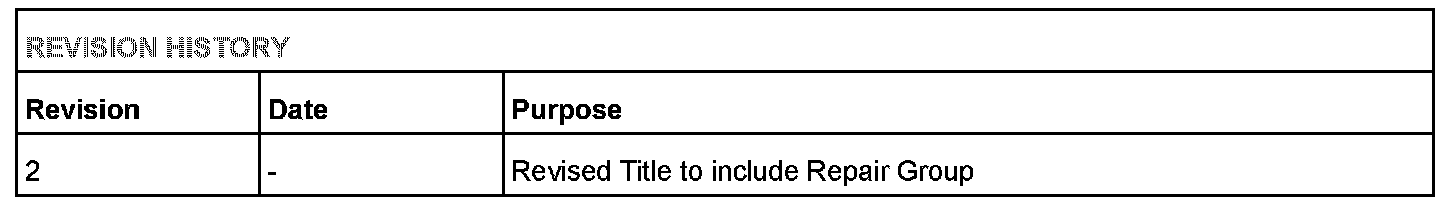

Supersedes Technical Service Bulletin Group 97 number 07-15 dated November 28, 2007 for reasons listed below.

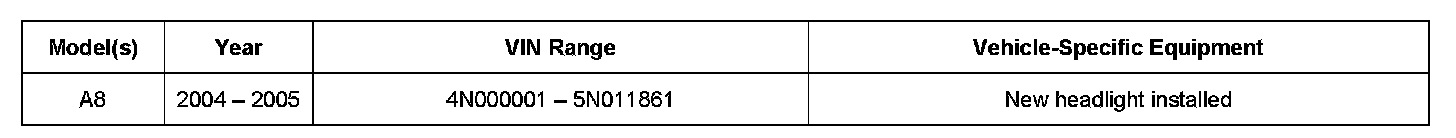

Affected Vehicles

90 Indicator bulb warning on





Condition

After replacing a headlight, a warning for an inoperative indicator bulb is displayed in the IP cluster. However, all indicator bulbs are functioning correctly.

Technical Background

Newly delivered headlights contain a silver 12 V/24 W bulb instead of the previous yellow 12 V/16 W bulb. The 09 - Electronic Central Electrics module identifies the higher current as a failure of the indicator bulb.

Production Solution

Modified electronic central electrics module.

Service

1. Find out which bulb was installed in the original headlight.

2. If a yellow 12 V/16 W bulb was installed in the original headlight, replace the 09 Electronic Central Electrics module. Fit control units from index K. A software update does not fix the issue.

Tip:

A yellow indicator bulb cannot be installed in the new headlights because the bulb holders are different.

Warranty

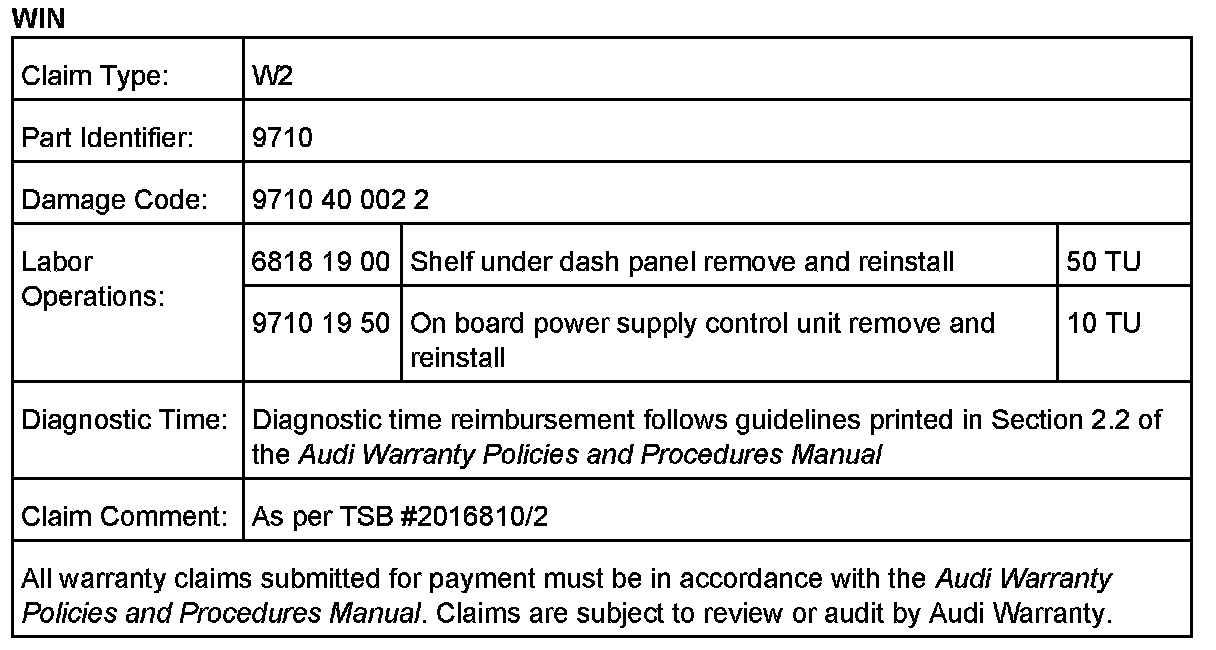

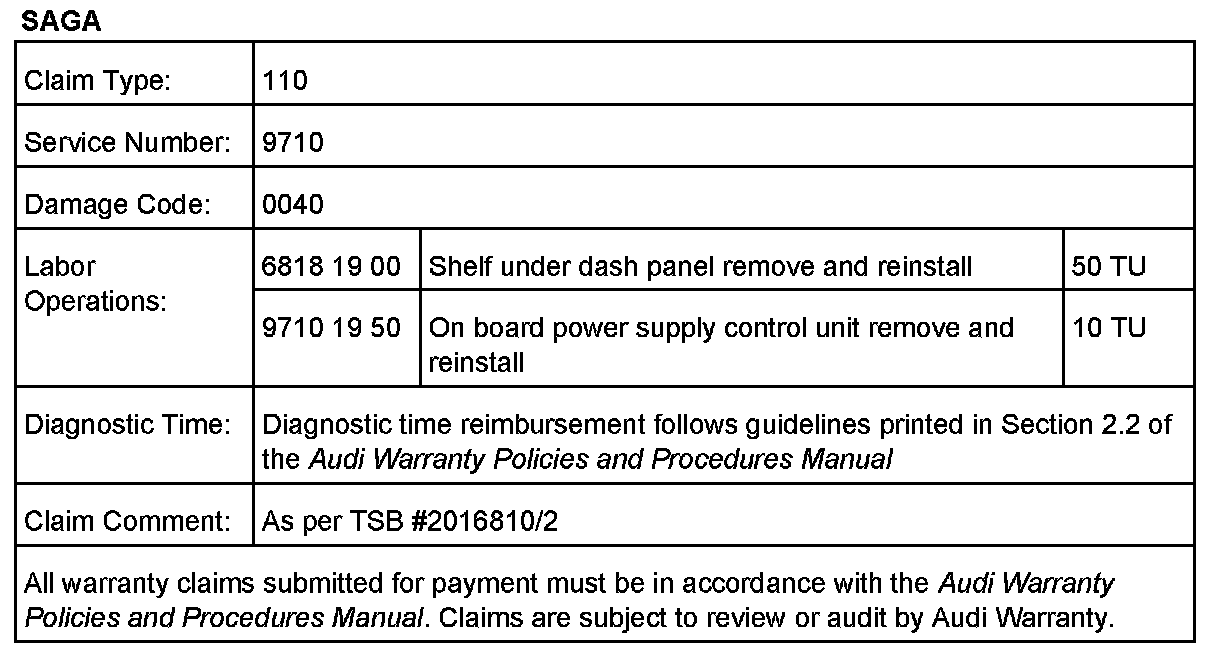

When procedure applies to vehicles under warranty, use the table.

Additional Information

All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
