Multi Media Interface - Navigation/Radio Malfunctions
91 08 1622010209/4
December 10, 2008.
Supersedes Technical Service Bulletin Group 91 number 05-12 dated August 17, 2005 to change the title.
91 NAV DestNot Avail/Radio Station Change at Restart/MMI Resets
Condition
Technical Background
Production Solution
Service
Please review the Technical Service Bulletin below.
Supersedes T.B. Group 91 number 05-08, dated July 8, 2005 due to added Update - Programming requirements.
Condition
No permanent fault codes are stored in MMI components and one or more of the following conditions are encountered:
- Previous or stored destinations are not available, or are delayed in the MMI Navigation menu.
- The radio station last selected prior to leaving the vehicle, is not the same when returning to the vehicle.
- Intermittent MMI reset, often at same location and same time or at locations with continued fast light and shade transitions for approx.
1-2 minutes (e.g. caused by rows of trees or rows of buildings).
Cause:
Audi has identified a manufacturing quality imperfection in the Multi Media Interface (MMI) software, that necessitates updating MMI components, Tire Pressure Monitoring System (TPMS), and in certain cases the Data Bus on Board Diagnostic Interface -J533-.
Service
Perform MMI software update using MMI Update CD: W42A8317.
Perform TPMS software update using Update CD - Part No. 4F0 906 961C.
Additionally, in the case of an older software version of the Data Bus on Board Diagnostic Interface -J533-, an update of -J533- using MMI Update CD: W42A8317 is required as well.
Required Tools
- MMI Update CD: W42A8317
- Battery charger (PSC 300 or equivalent).
- VAS 5051/5052 Diagnostic tool with online connection.
- TPMS Update CD Part No. 4F0 906 961C.
Tip:
The "MMI Update" CD: W42A8317 and TPMS Update CD: 4F0 906 961C have been provided to dealers free of charge.
Additional copies of the Update CDs' may be ordered from the Audi Technical Literature Ordering Center.
Preparation prior to performing Update Programming
- Attach battery charger (PSC 300 or equivalent) to vehicle.
- Remove navigation DVD from navigation drive (in trunk).
- Leave DVD out of drive during Update - Programming.
- Remove all CDs from glovebox CD Changer.
- Switch OFF ALL electronic consumers (lights, telephone, wiper climate control, etc.) when ignition is ON.
Tip: Illustrations and screen shots used in this procedure are used to help illustrate the procedure only and may vary from actual tester and MMI screens.
Select and record Adaptation "Channel 1" value of the Display Control Module as follows:
- Select "Address word 07 - Display-/ control unit" in Vehicle Self Diagnosis.
- Select Function "10 - Adaption" and Input "1" on keypad to select "Channel 1".
- Record "Channel 1" value.
- Verify that there are not DTCs stored in any control modules.
If any permanent DTCs are stored: Follow Guided Fault Finding (GFF) to solve these concerns first.
- Switch Ignition OFF and remove key from ignition lock or press the stop button until the steering column is locked.
- Disconnect VAS diagnostic tool (diagnostic tool may interfere with the Update Programming process).
NOTE:
To exit or enter the vehicle during the update, manually close the driver door latch first.
DO NOT OPERATE doors or trunk lid during the MMI update!
MMI components, Update programming
- Switch MMI ON by pressing and holding ON/OFF knob -A-.
- Press "load" button on glove box CD changer and insert Update CD: W42A8317 into the first slot (label side up).
- Wait at least 10 seconds for system to recognize CD.
- If necessary activate radio by pressing RADIO button -C-.

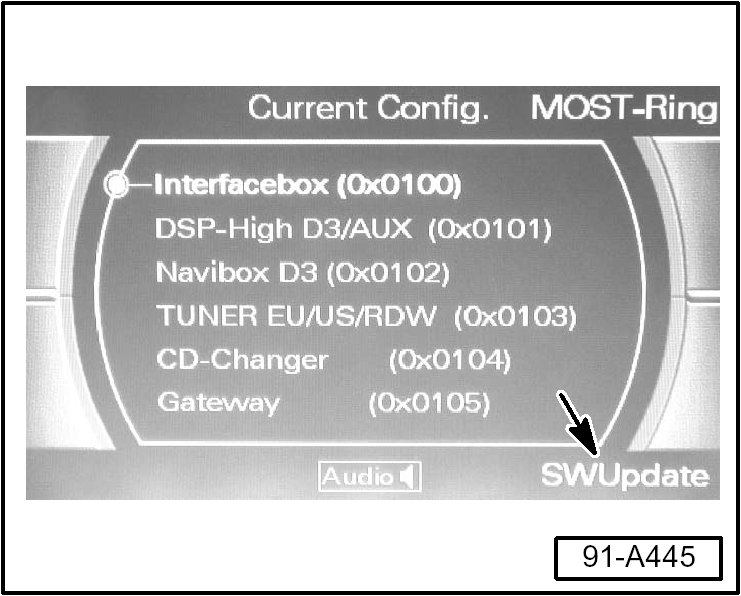

- Press and hold "SETUP" button and then press "RETURN" button (-D1 and D2-). Hold both buttons for approx. 5 seconds, until MMI screen displays "Current Config".
- MMI screen will display "SWUpdate" in lower right corner (arrow).

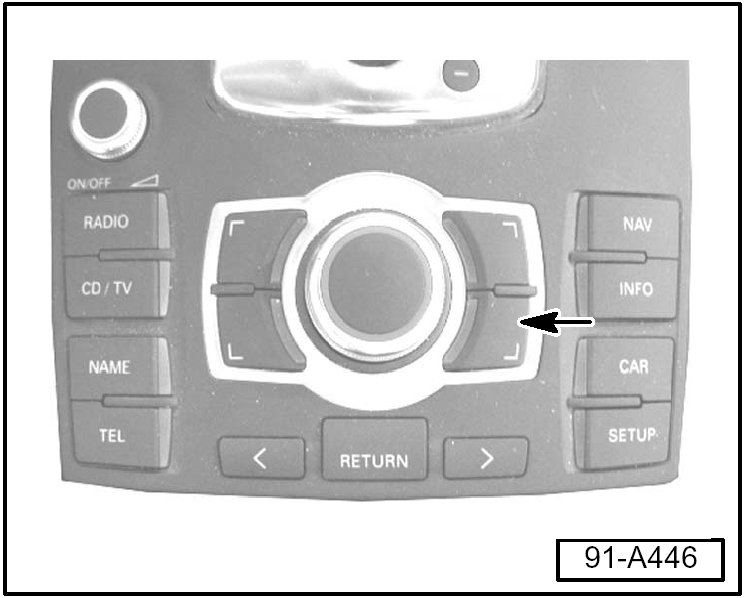

- Press lower right control button (arrow) to begin software update process.
- MMI screen will change to "CD-ROM" display.
- "CD-ROM" entry will be highlighted.
- Press center control knob to select highlighted entry.
- MMI screen will change to "Reading Meta Information" display.
Tip: Wait at least 20 seconds while "Meta Information" is being read.

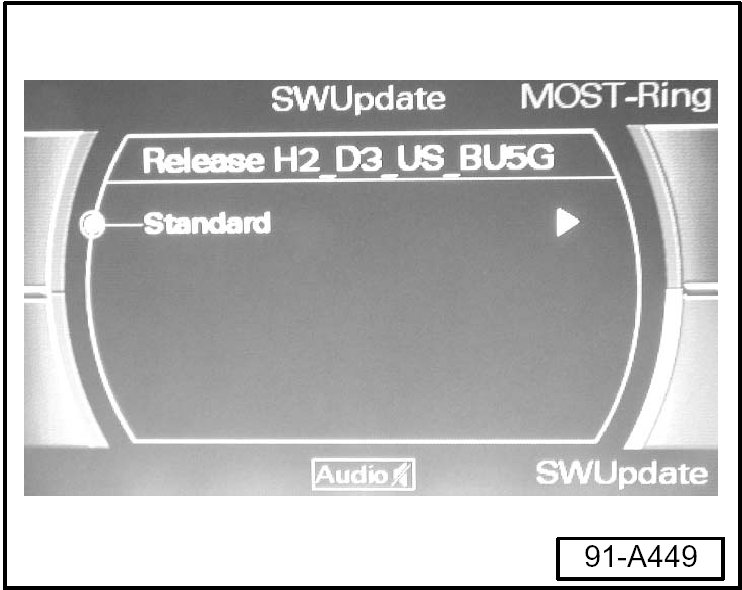

- MMI screen will change to "Standard" display.
- "Standard" entry will be highlighted.
- Press center control knob to select highlighted entry.

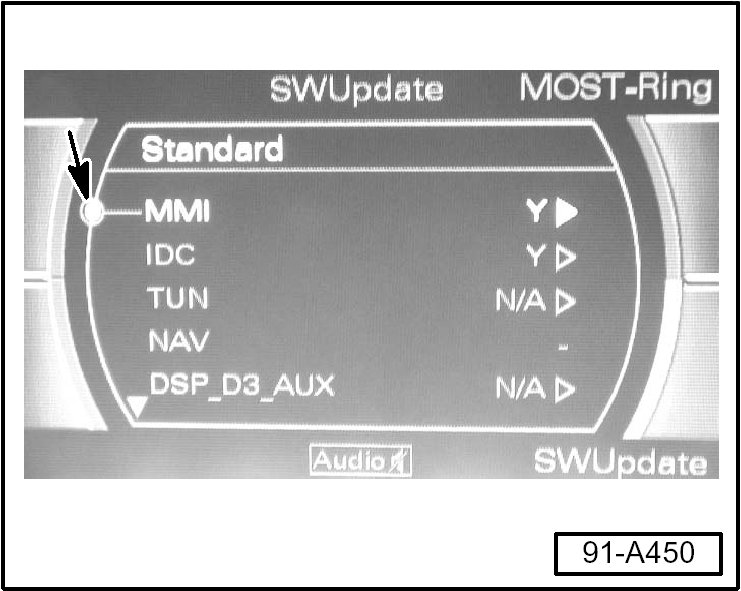

- A list of MMI components will appear.

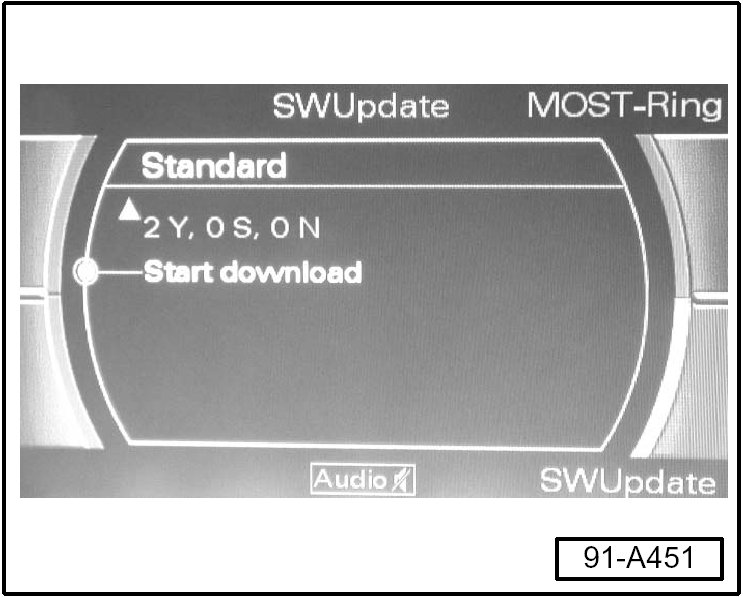

- Rotate center control knob counterclockwise to move cursor (arrow) on MMI screen downward until "Start download" is highlighted.
Tip: List is several pages long.
- When "Start download" is highlighted, press center control knob to select highlighted entry.

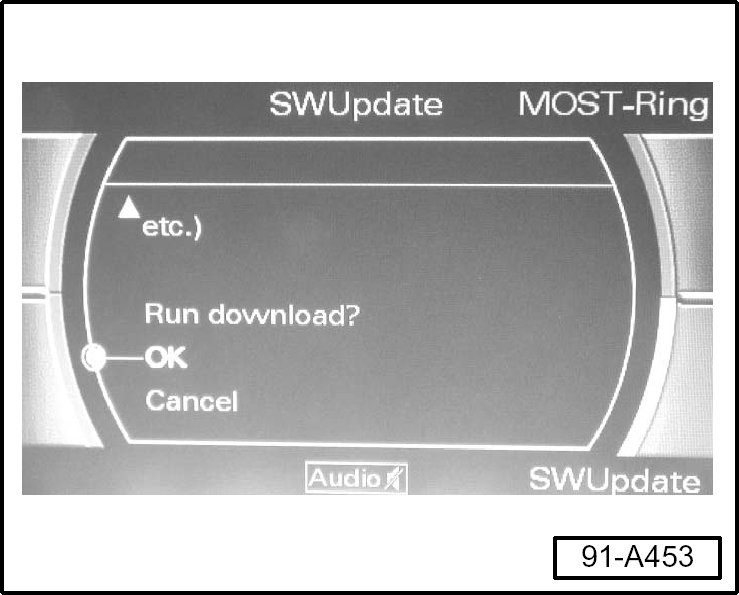

- Rotate center control knob counterclockwise to move cursor on MMI screen downward until "Run download OK" is highlighted.
- Start update programming by pressing center control knob.
Tip: Please wait. DO NOT touch any controls at this time.
- The MMI screen will change displays many times during the update process.
- When the new software is loaded, MMI screen will display "Starting applications".
Tip: While deleting flash or programming, If no progress appears for at least ten minutes:

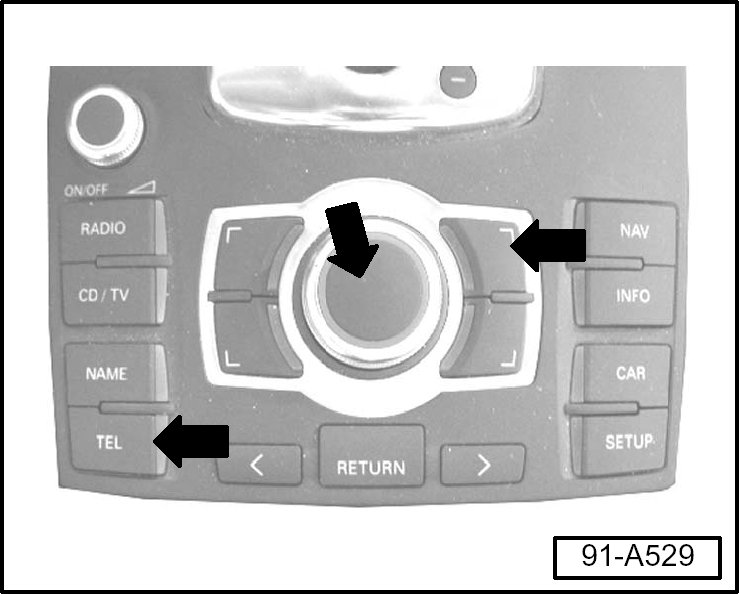

- Perform a 3 fingered reset by pressing all three buttons shown at the same time (DO NOT eject Update CD).
- Screen will return to the beginning.
- Perform procedure again until Run Download appears (see illustration 91-A453) and continue from there.
- Wait until all components have been initialized.
- Screen will change to a "standard" screen once all devices have been initialized.
- Scroll down to "Restart MMI" entry and press center control knob.
Tip: Wait up to 2 minutes until screen turns OFF (goes black).
MMI component update verification
- Repeat procedure of update programming until MMI component list appears.

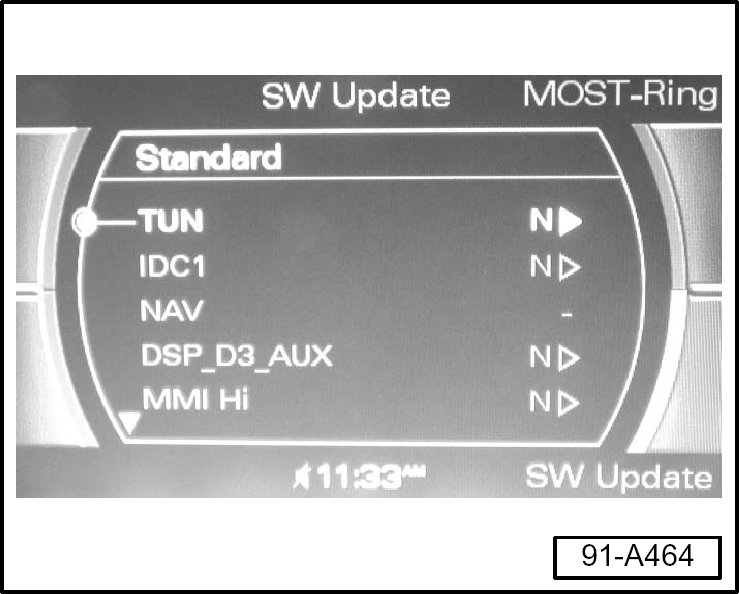

- Verify that all entries now have a "N" displayed.
- Press "Return" button 4 times to exit MMI Update Verification.
- Remove MMI Update CD: W42A8317 from CD changer.
Coding and Adaptation Verification after MMI component update
- Using the VAS 5051/5052, enter Vehicle Self-Diagnosis mode.
The coding and 3 Adaptation Channels of the head unit needs to be verified.
- Select "Address word 07 - Display-/ control unit".

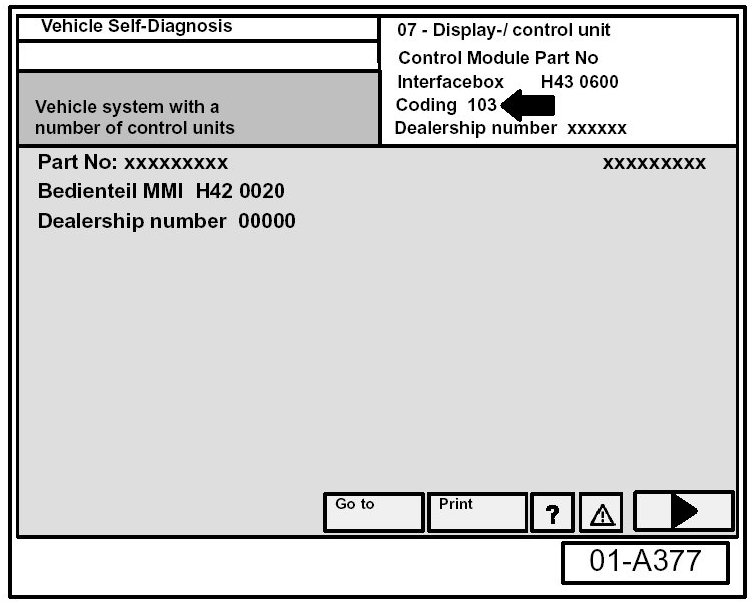

- Verify, if control unit coding is 103 (arrow). If not, code to 103

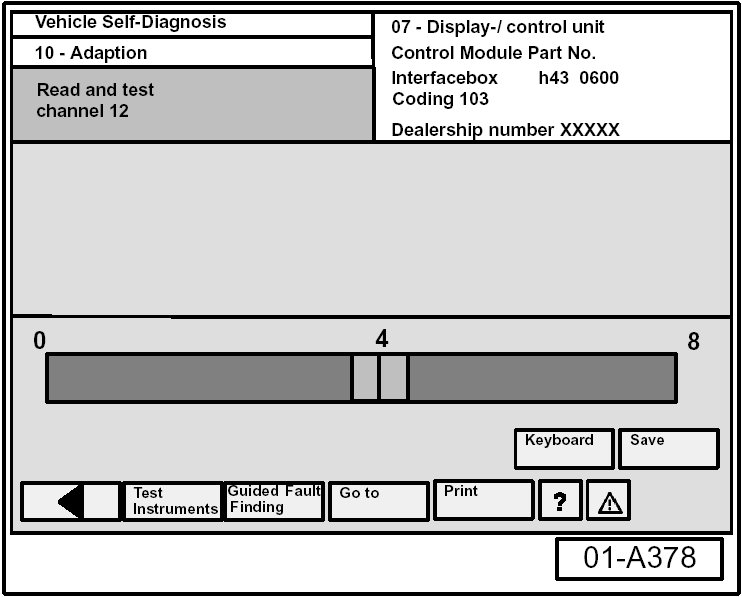

- Select Function "10 - Adaption" and enter Adaptation "Channel 12".
- Verify Adaptation Channel 12 - value is 4. If not, change value to 4.
- Select "Save" and then "Accept" button to record change.
- Change Adaptation Channel 111 value from 0 to 1.
Tip: The MMI will re-set when the Adaptation Channel 111 value is changed.
- Select Adaptation channel 1 and verify displayed value with recorded value during preparation.
If values don't match:
- Change displayed value to recorded value using keyboard button.
- Select "Save" and then "Accept" button to record change.
Perform Software 280 Update of the Tire Pressure Monitoring System (TPMS) -J502- if Vehicle Identification Number (VIN) is between those specified in following table:
- Refer to Technical Bulletin A440502 for complete TPMS Software Update instructions.
Tip: It is not necessary to clear DTCs following the TPMS Software Update if the Data Bus On Board Diagnostic Interface -J533- Update, which follows this Tip, is also performed. The DTCs will be cleared at the completion of the Data Bus On Board Interface -J533- Update.
Update of Data Bus On Board Diagnostic Interface -J533-
It is possible that a Software update of the Data Bus On Board Diagnostic Interface -J533- is necessary.
- Insert Update CD: W42A8317 in CD ROM drive of VAS 5051/5052.
- Connect the VAS 5051/5052 to vehicle and select "Vehicle Self diagnosis".

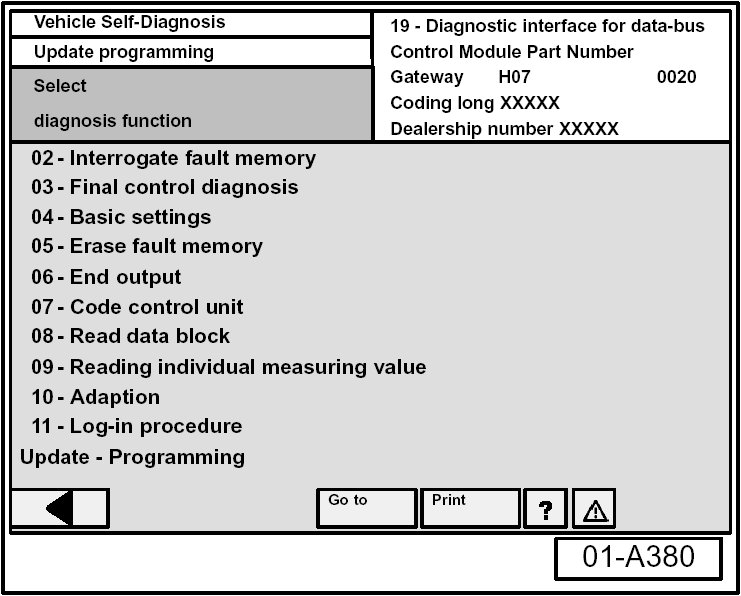

- Select vehicle system "19 - Diagnostic interface for data-bus" -J533-
- If Function "Update programming" is displayed, select and follow update procedure.
- After update, verify that software version 0040 is displayed (arrow).
Final System Check
- Insert navigation DVD back into navigation drive.
- Connect the VAS 5051/5052 with online connection to the vehicle:
- From Vehicle screen select "Vehicle Self Diagnosis".
- Erase ALL Sporadic DTCs after verification in "Gateway".
Tip: You may encounter a permanent fault code in the DSP Bose(R) Amplifier - Address word "47 - sound system for component protection".
- Follow steps in Guided Fault Finding (GFF) to disable component protection of the Amplifier.
- Verify MMI operation in all modes (Radio, CD, NAV etc.).
- Verify operation of OnStar(R) by attempting an OnStar(R) telephone call (Blue button).
- Radio should Mute and Green OnStar(R) light should flash.
If radio DOES NOT mute:
- Verify Part No. in Address word 47 - Sound System.
- Part No. should be 4E0 035 223B.
Data transfer to SVM database:
- Activate Radio menu by pressing the radio function selector button.
- Connect the VAS 5051/5052 with online connection to the vehicle and select "Guided Fault Finding".
- Select Audi, then select "Audi A8 2004>".
- Select correct engine version and follow directions given in the display.
After all control units have been read:
- Press forward > arrow.

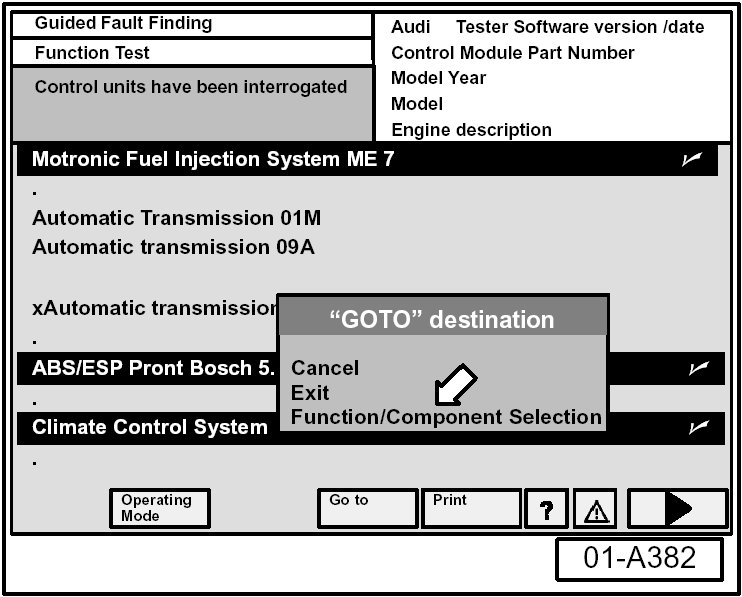

Select "Go To" then select "Function / Component selection".

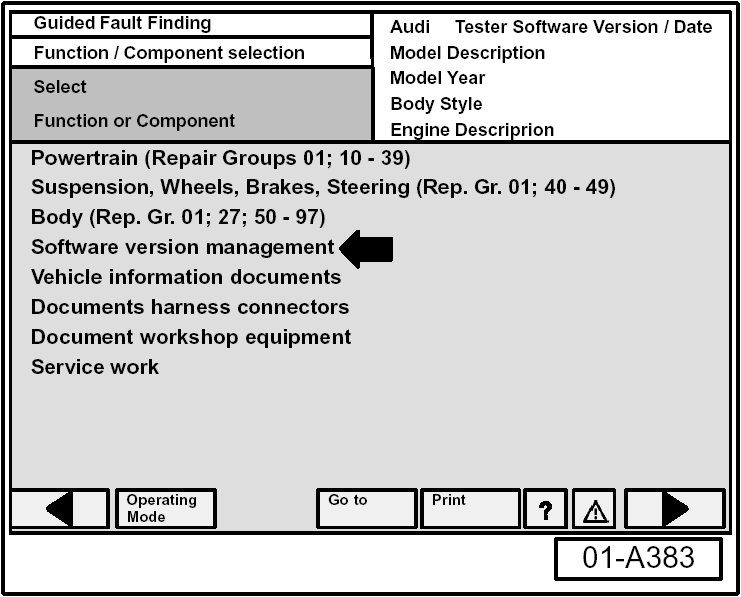

- Select "Software Version Management" (arrow).
- Highlight "Problem related hardware and software update" (arrow) and press forward arrow >.
- Select "Action code: Direct Input" (arrow) and press forward arrow >.
In the next screen, confirm the option "Own test plan" - "Action code: Direct input for problem update" by pressing forward arrow >.

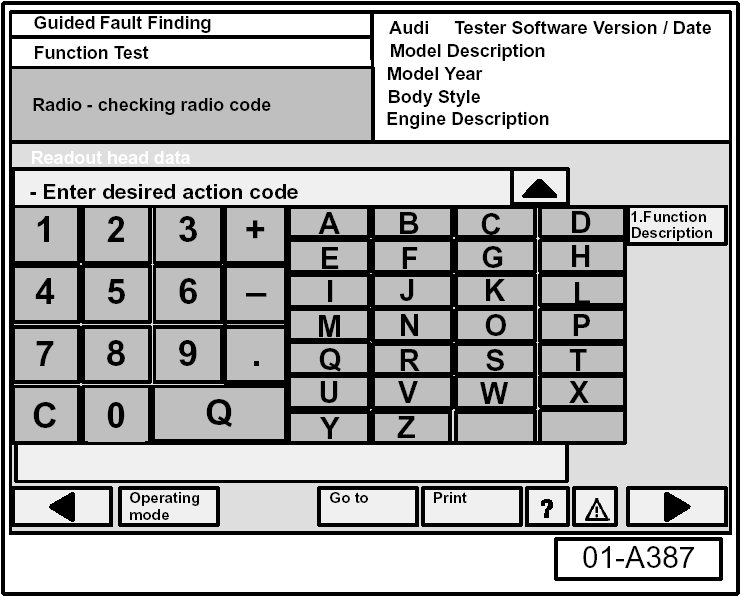

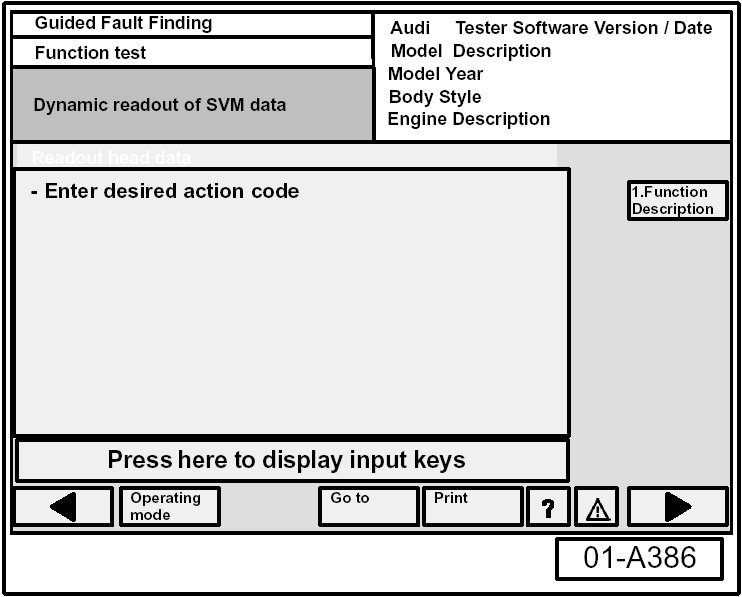

- Select "Press here to display input keys" button for activating the screen keypad.
- Using keypad, enter Action code "D3USMMI317".
- Press "Q" button to confirm then press forward arrow >.
- Similar screen appears.

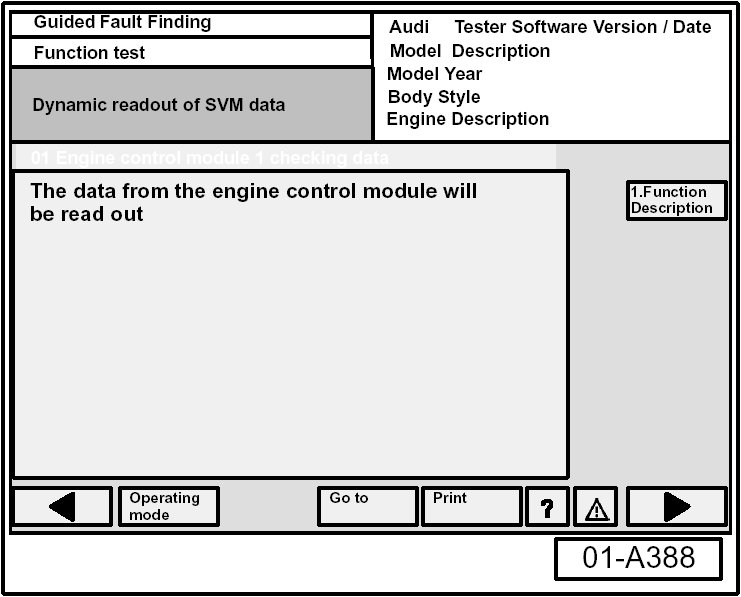

- Data from vehicle control units will then be read.

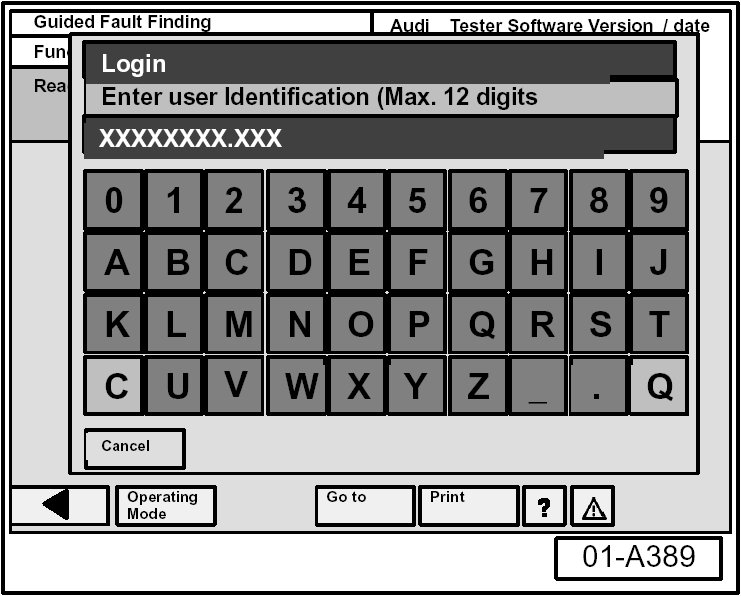

- Enter your GeKo user ID and password.

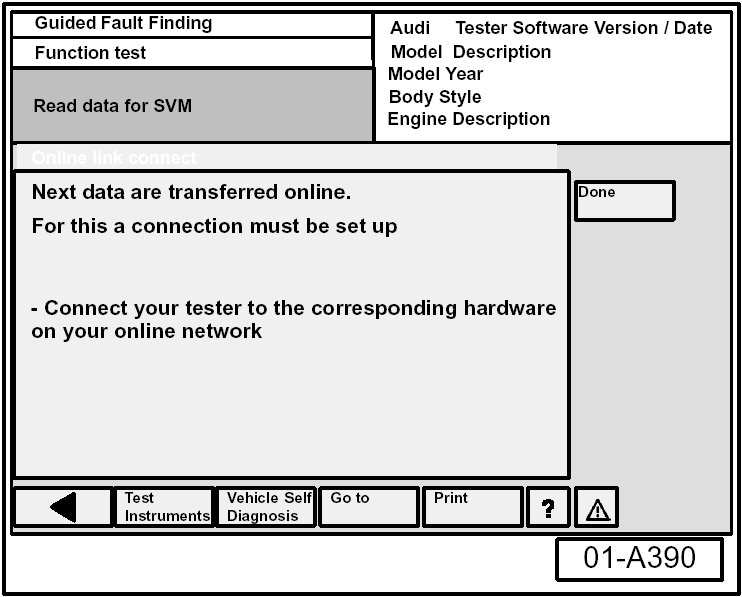

- Connect the VAS 5051/5052 to the corresponding hardware on your online network and press the "Done" Button.
- Data will be transferred and processed.
- A message will be received from the Software Versions Management.
- Select "Go to".
Tip: Disregard any error message about module needing updates.

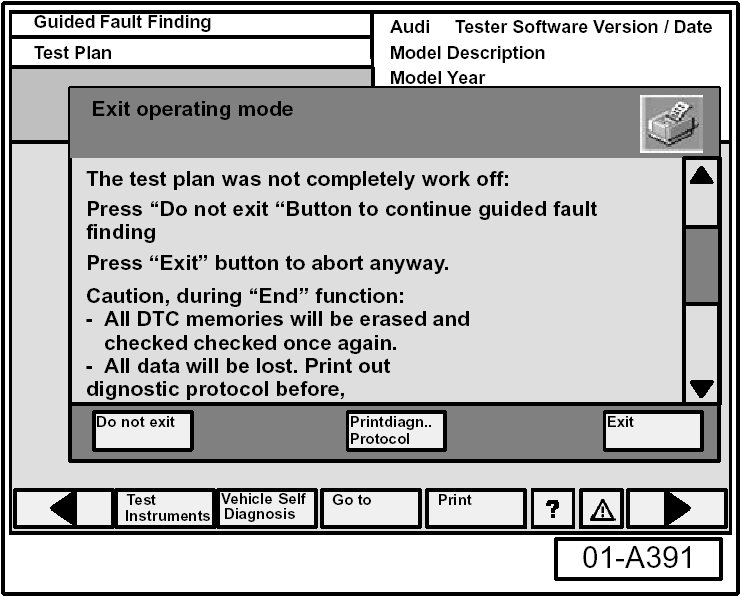

- Select "Exit" to end Guided Fault Finding (GFF).
- Select "Exit" to confirm exiting Guided Fault Finding (GFF).
- DTC memory of all control units will automatically be erased.

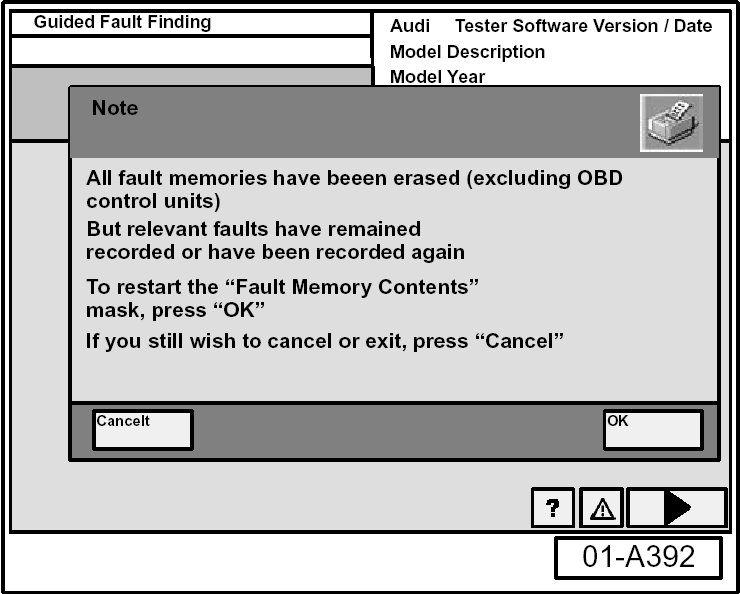

If the following message appears:
- Press "Cancel" button.
- Answer the following questions on the screen.
- Send your answers on line.
- Switch ignition to "OFF" position.
- Check navigation system for vehicle location by pressing "NAV" button to switch to the Navigation menu.
- Activate "MAP" display via bottom right control button located next to the rotary push button.
If the map appears and vehicle position is correct:
- Navigation system has been initialized, no further work is required.
If the arrow appears on an empty map:
- Place vehicle outside for 5 to 10 minutes with MMI switched "ON".
- Update programming is completed.
- Disconnect VAS 5051/5052 and remove battery charger.
- Insert customer's CDs in CD changer.
Warranty
When procedure applies to vehicles within the New Vehicle Limited Warranty, use the following:
Claim Type: W2
Part Identifier: 9194
Damage Code: 9194 39 000 1
Labor Operation: 9194 3100 130 TU
Update of the
MMI components
Labor Operation: 9144 1950 40 TU
Remove and Install
BOSE(R) Amplifier,
if necessary.
Diagnostic Time: No Additional Diagnostic Time Allowed
Claim Comment: Type "As per Technical Bulletin A910512" in comment section of Warranty Claim
