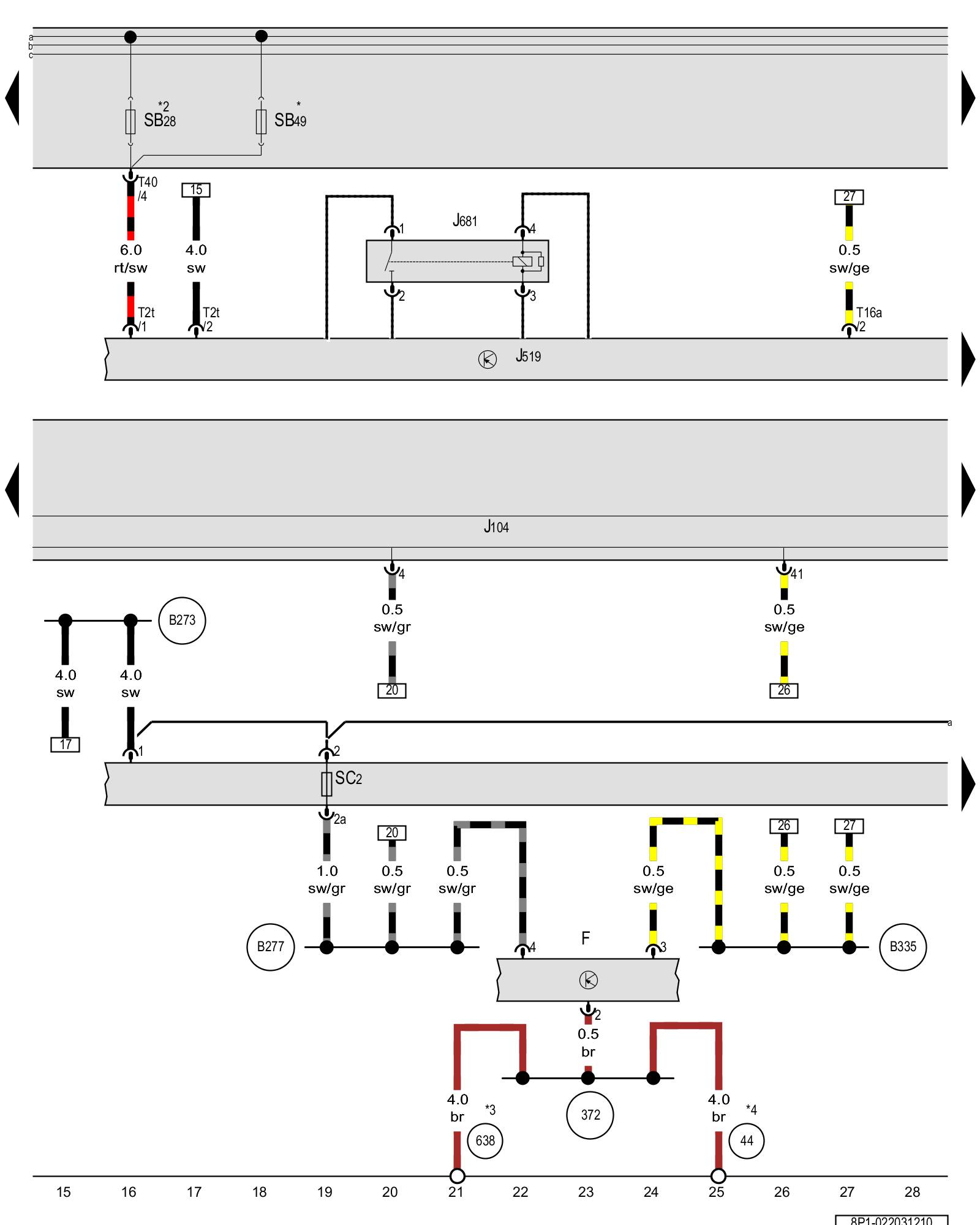

Diagram 22/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Brake lamp switch, ABS control module, Vehicle electrical system control module, Terminal 15 power supply relay 2





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F - Brake lamp switch Locations [1][2]Brake Light Switch

J104 - ABS control module Control Modules in Front Part Of Vehicle

J519 - Vehicle electrical system control module Control Modules in Interior Of Vehicle

J681 - Terminal 15 power supply relay 2 Overview Of Relay

SC2 - Fuse 2 (on fuse panel C) Overview Of Fuses

SB28 - Fuse 28 (on fuse panel B) Overview Of Fuses

SB49 - Fuse 49 (on fuse panel B) Overview Of Fuses

T2t - Double connector

T16a - 16-pin connector

T40 - 40-pin connector

(44) - Ground connection on A-pillar, lower left Overview Of Ground Connections in Interior Of Vehicle

(372) - Ground connection 7 (in main wiring harness)

(638) - Ground connection on right A-pillar Overview Of Ground Connections in Interior Of Vehicle

(B273) - Positive connection (15) (in main wiring harness)

(B277) - Positive connection 1 (15a) (in main wiring harness)

(B335) - Connection 1 (54) (in main wiring harness)

* - E-Box high

*2 - E-Box low

*3 - Only for left-hand drive vehicles

*4 - Only for right-hand drive vehicles
