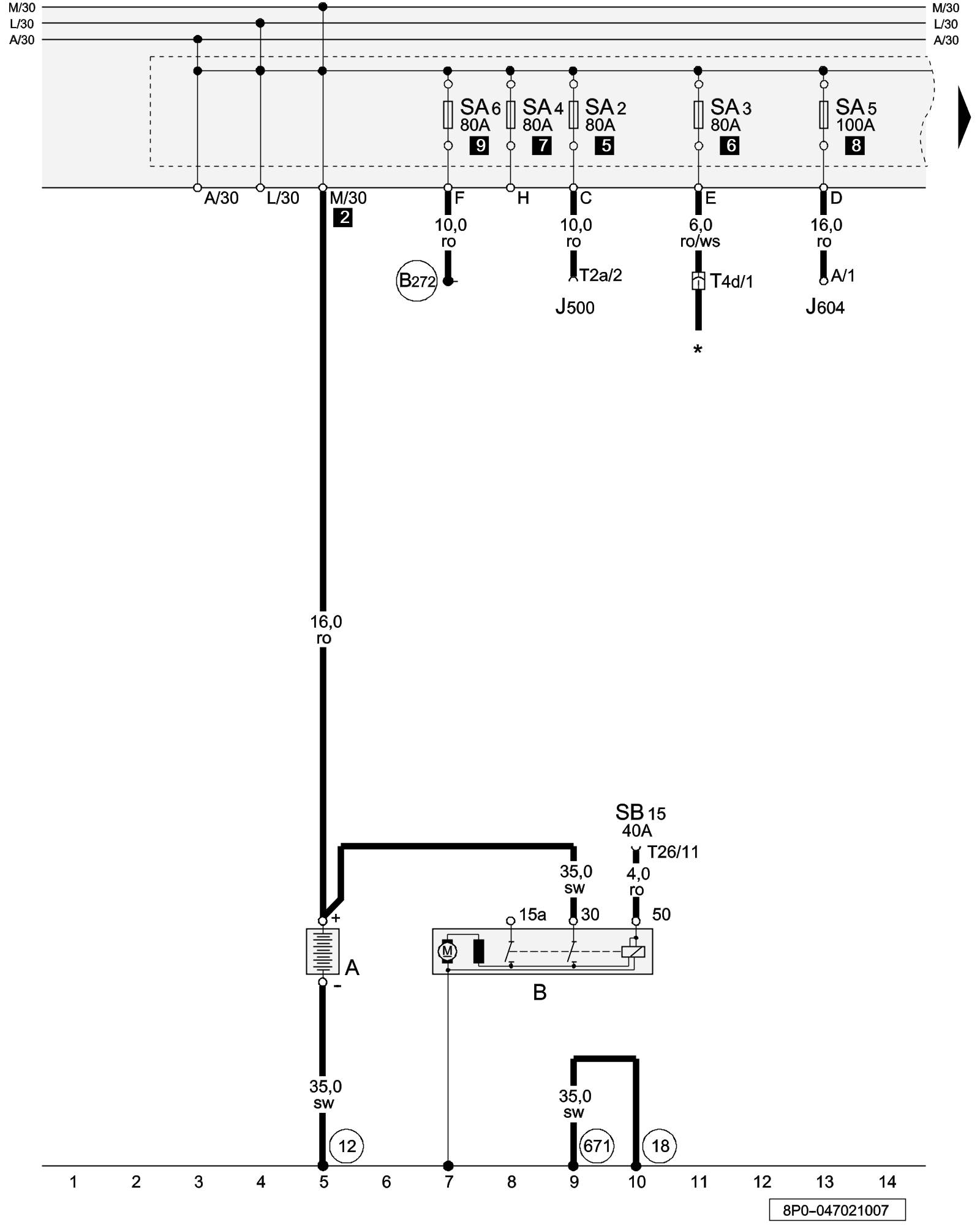

Diagram 47/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Starter, Battery, Fuses (on fuse panel) Battery





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

B - Starter

J500 - Power Steering Control Module Control Modules in Front Part Of Vehicle

J604 - Auxiliary Air Heater Control Module Control Modules in Interior Of Vehicle

SA2 - Fuse 2 (on fuse panel) Battery Overview Of Fuses

SA3 - Fuse 3 (on fuse panel) Battery Overview Of Fuses

SA4 - Fuse 4 (on fuse panel) Battery Overview Of Fuses

SA5 - Fuse 5 (on fuse panel) Battery Overview Of Fuses

SA6 - Fuse 6 (on fuse panel) Battery Overview Of Fuses

SB15 - Fuse 15 (on fuse panel) Overview Of Fuses

T2a - Double Connector, black (Connector A)

T4d - 4-Pin Connector, black, on coolant fan control (FC) (front end)

T26 - 26-Pin Connector, black, on electronics box engine compartment (Connector K)

(12) - Ground Connection (in engine compartment, left) Overview Of Ground Connections in Front Part Of Vehicle

(18) - Ground Connection (on engine block)

(671) - Ground Connection 1 (on left front long member) Overview Of Ground Connections in Front Part Of Vehicle

(B272) - Plus Connection (30) (in main wiring harness)

* - See Applicable Wiring Diagram Coolant Fan Control

Next Diagram 47/3 (Tracks 15-28)
