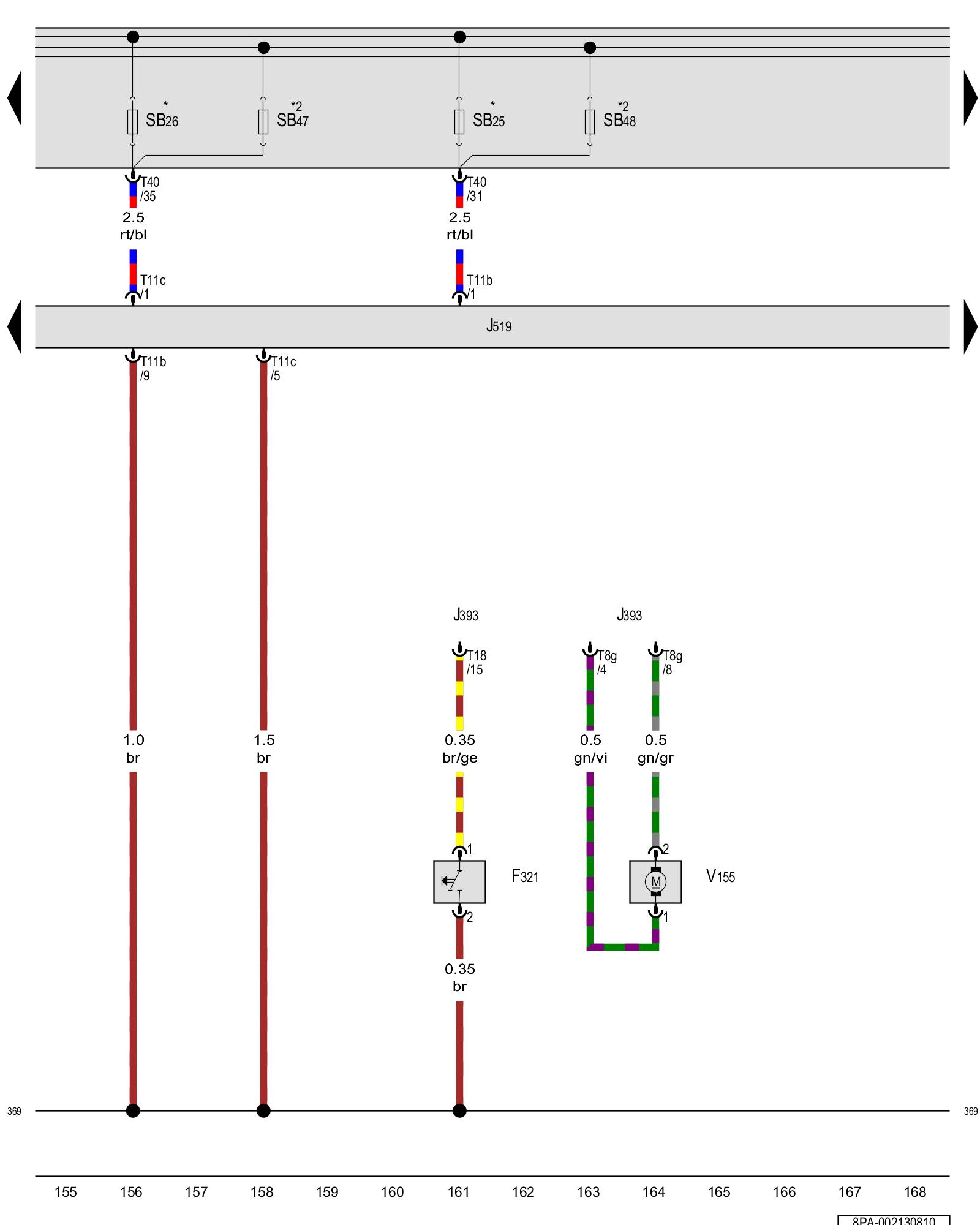

Diagram 2/13 (Tracks 155-168)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Parking brake contact switch, Vehicle electrical system control module, Fuel filler door unlock motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F321 - Parking brake contact switch

J393 - Comfort system central control module Overview Of Control Modules

J519 - Vehicle electrical system control module Control Modules in Interior Of Vehicle

SB25 - Fuse 25 (on fuse panel B) Overview Of Fuses

SB26 - Fuse 26 (on fuse panel B) Overview Of Fuses

SB47 - Fuse 47 (on fuse panel B) Overview Of Fuses

SB48 - Fuse 48 (on fuse panel B) Overview Of Fuses

T8g - 8-pin connector

T11b - 11-pin connector

T11c - 11-pin connector

T18 - 18-pin connector

T40 - 40-pin connector

V155 - Fuel filler door unlock motor Locations

(369) - Ground connection 4 (in main wiring harness)

* - E-Box low

*2 - E-Box high
