Diagram 2/25 (Tracks 323-336)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


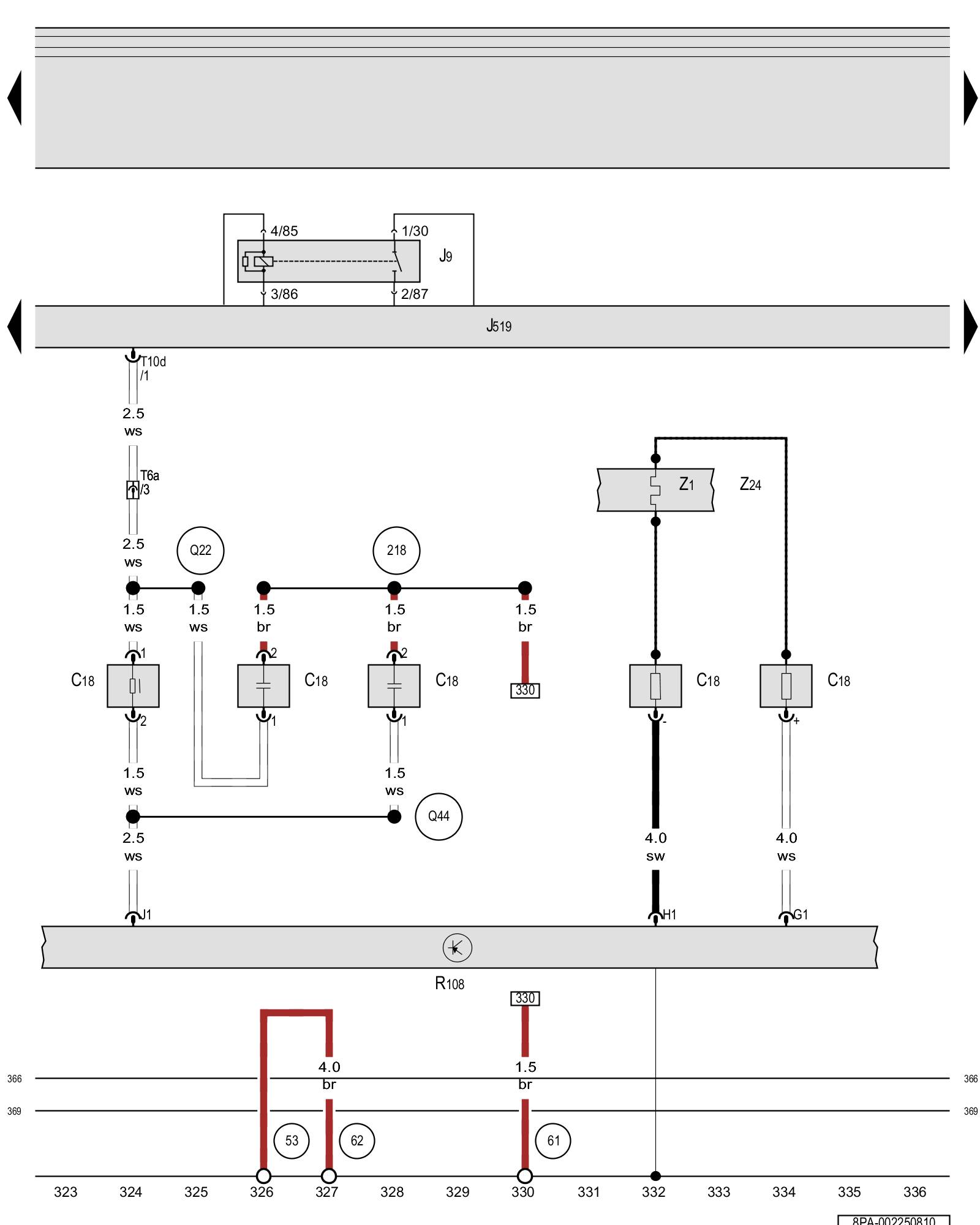

Windshield antenna suppression filter, Rear window defogger relay, Vehicle electrical system control module, Left antenna module, Rear window defogger, Rear window defogger with window antenna





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

C18 - Windshield antenna suppression filter

J9 - Rear window defogger relay Overview Of Relay

J519 - Vehicle electrical system control module Control Modules in Interior Of Vehicle

R108 - Left antenna module Locations

T6a - 6-pin connector, on the left C-pillar

T10d - 10-pin connector

Z1 - Rear window defogger Components Outside Pass Compartment - Group 1

Z24 - Rear window defogger with window antenna Locations

(53) - Ground connection in rear lid, right Overview Of Ground Connections in Rear Part Of Vehicle (3-door Models)

(61) - Ground connection on left C-pillar Overview Of Ground Connections in Rear Part Of Vehicle (3-door Models)

(62) - Ground connection on right C-pillar Overview Of Ground Connections in Rear Part Of Vehicle (3-door Models)

(218) - Ground connection 1 (in rear lid wiring harness)

(366) - Ground connection 1 (in main wiring harness)

(369) - Ground connection 4 (in main wiring harness)

(Q22) - Connection 1 (in rear lid wiring harness)

(Q44) - Connection 2 (in rear lid wiring harness)

Previous Diagram 2/24 (Tracks 309-322)

Next Diagram 2/26 (Tracks 337-350)
