Diagram 2/30 (Tracks 393-406)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

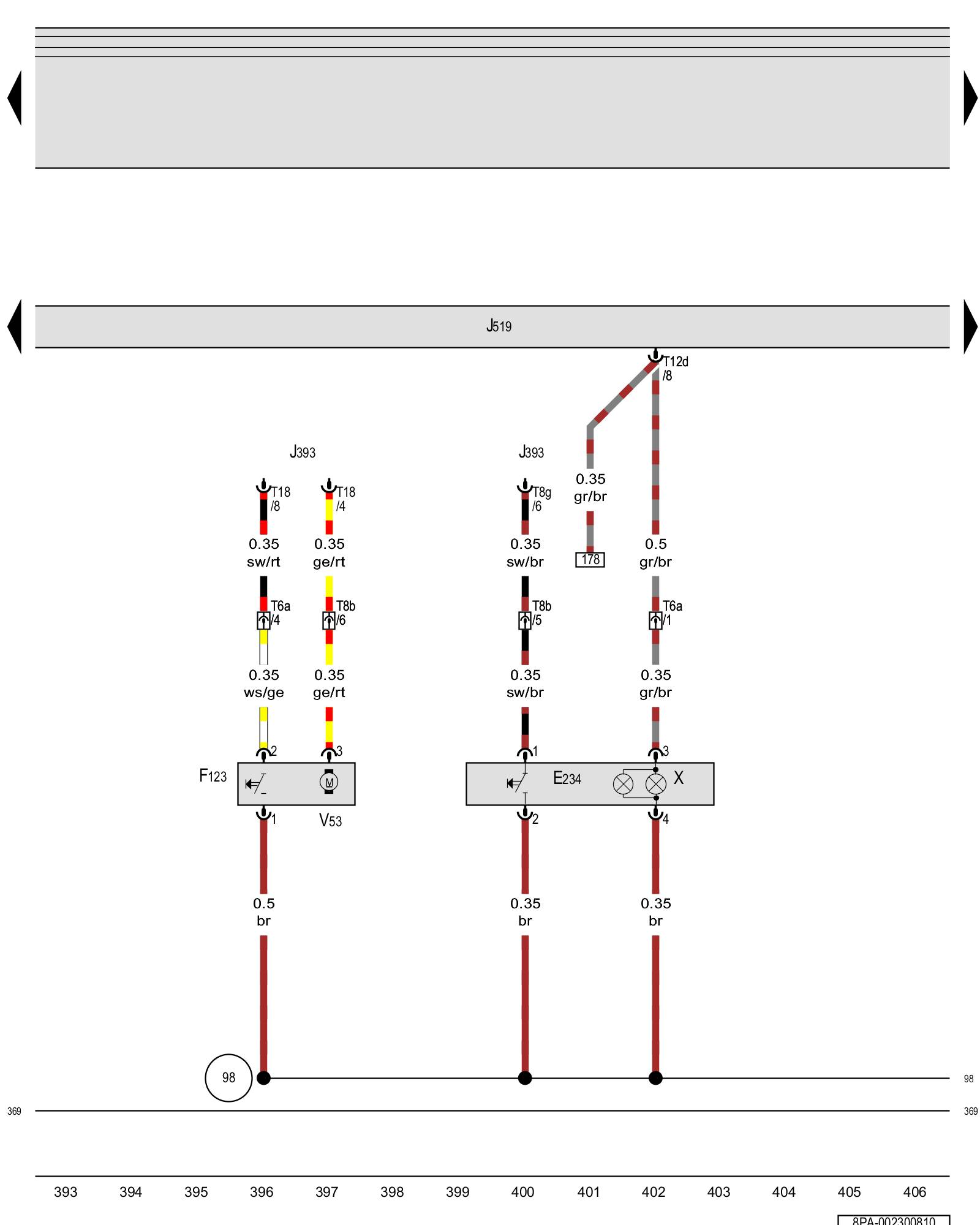

Release button in rear lid handle, Rear lid alarm switch, Vehicle electrical system control module, Rear lid central locking system motor, License plate lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E234 - Release button in rear lid handle

F123 - Rear lid alarm switch Rear Lid Lock

J393 - Comfort system central control module Overview Of Control Modules

J519 - Vehicle electrical system control module Control Modules in Interior Of Vehicle

T6a - 6-pin connector, on the left C-pillar

T8b - 8-pin connector, on the left C-pillar

T8g - 8-pin connector

T12d - 12-pin connector

T18 - 18-pin connector

V53 - Rear lid central locking system motor Rear Lid Lock

X - License plate lamp

(98) - Ground connection (in rear lid wiring harness)

(369) - Ground connection 4 (in main wiring harness)
