Diagram 2/32 (Tracks 421-434)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

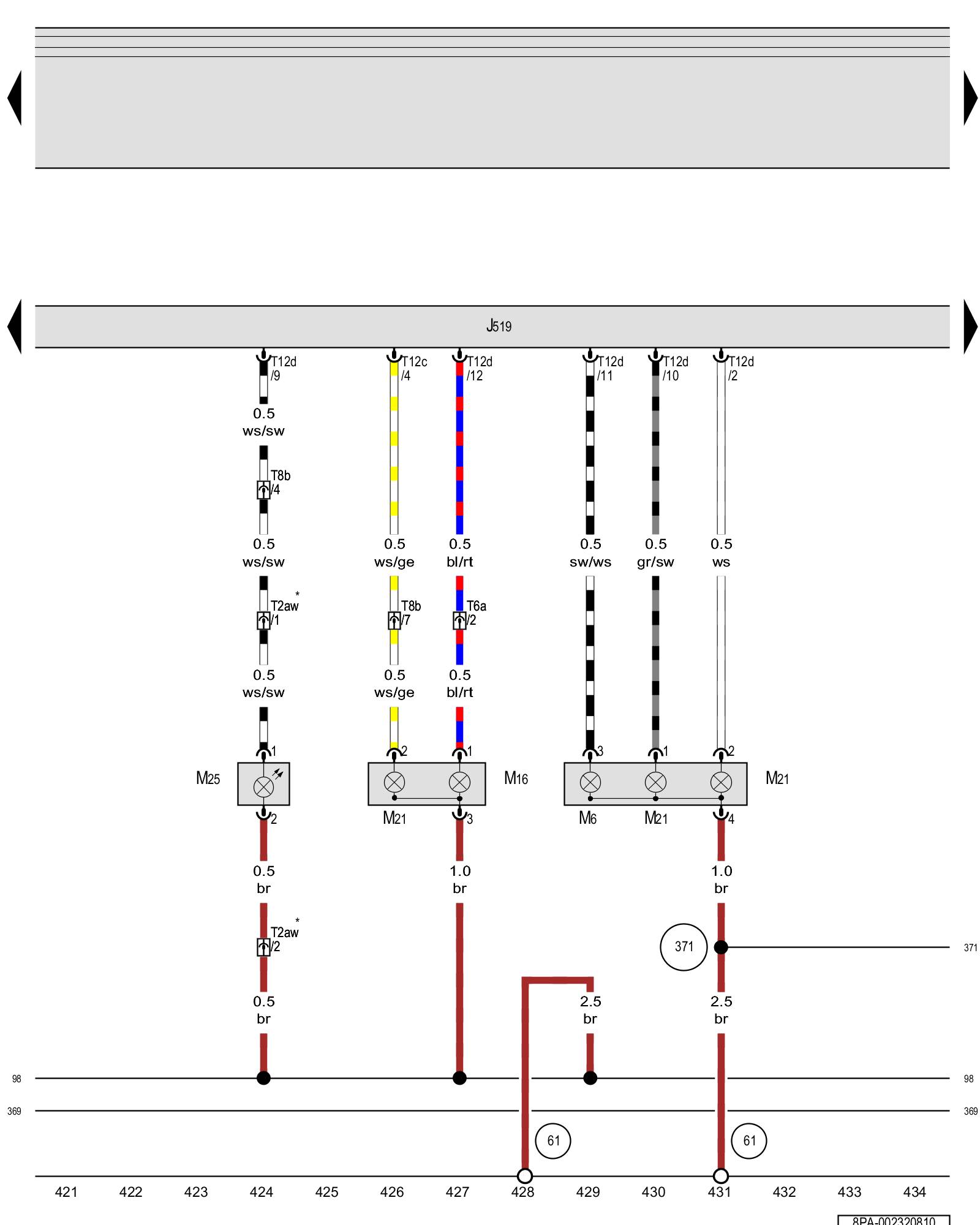

Vehicle electrical system control module, Left rear turn signal bulb, Left back-up lamp bulb, Left brake/tail lamp bulb, High-mounted brake lamp bulb





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle electrical system control module Control Modules in Interior Of Vehicle

M6 - Left rear turn signal bulb

M16 - Left back-up lamp bulb

M21 - Left brake/tail lamp bulb

M25 - High-mounted brake lamp bulb

T2aw - Double connector, in the rear lid

T6a - 6-pin connector, on the left C-pillar

T8b - 8-pin connector, on the left C-pillar

T12c - 12-pin connector

T12d - 12-pin connector

(61) - Ground connection on left C-pillar Overview Of Ground Connections in Rear Part Of Vehicle (3-door Models)

(98) - Ground connection (in rear lid wiring harness)

(369) - Ground connection 4 (in main wiring harness)

(371) - Ground connection 6 (in main wiring harness)

* - only for vehicles with S line equipment
