Diagram 2/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

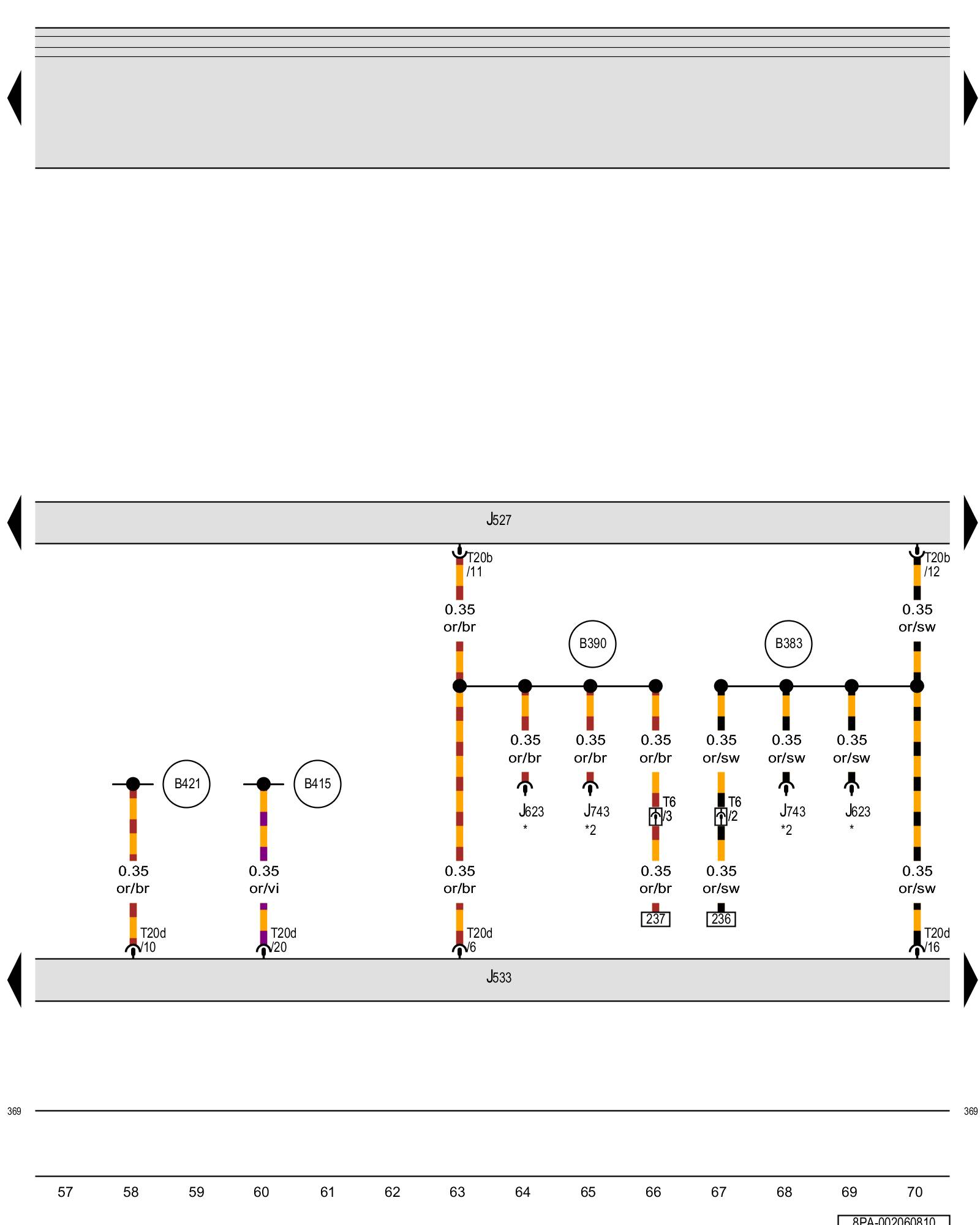

Steering column electronics control module, Data bus on board diagnostic interface





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J527 - Steering column electronics control module Control Modules in Interior Of Vehicle

J533 - Data bus on board diagnostic interface Control Modules in Interior Of Vehicle

J623 - Engine control module Control Modules in Front Part Of Vehicle

J743 - DSG transmission Mechatronic Control Modules in Front Part Of Vehicle DSG Transmission Mechatronic -J743-

T6 - 6-pin connector, near the left front longitudinal member

T20b - 20-pin connector

T20d - 20-pin connector

(369) - Ground connection 4 (in main wiring harness)

(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)

(B415) - Infotainment CAN Bus high connection 1 (in main wiring harness)

(B421) - Infotainment CAN bus low connection 1 (in main wiring harness)

* - Refer to applicable engine wiring diagram

*2 - Refer to applicable wiring diagram for automatic transmission

Previous Diagram 2/5 (Tracks 43-56)

Next Diagram 2/7 (Tracks 71-84)
