Diagram 101/10 (Tracks 113-126)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


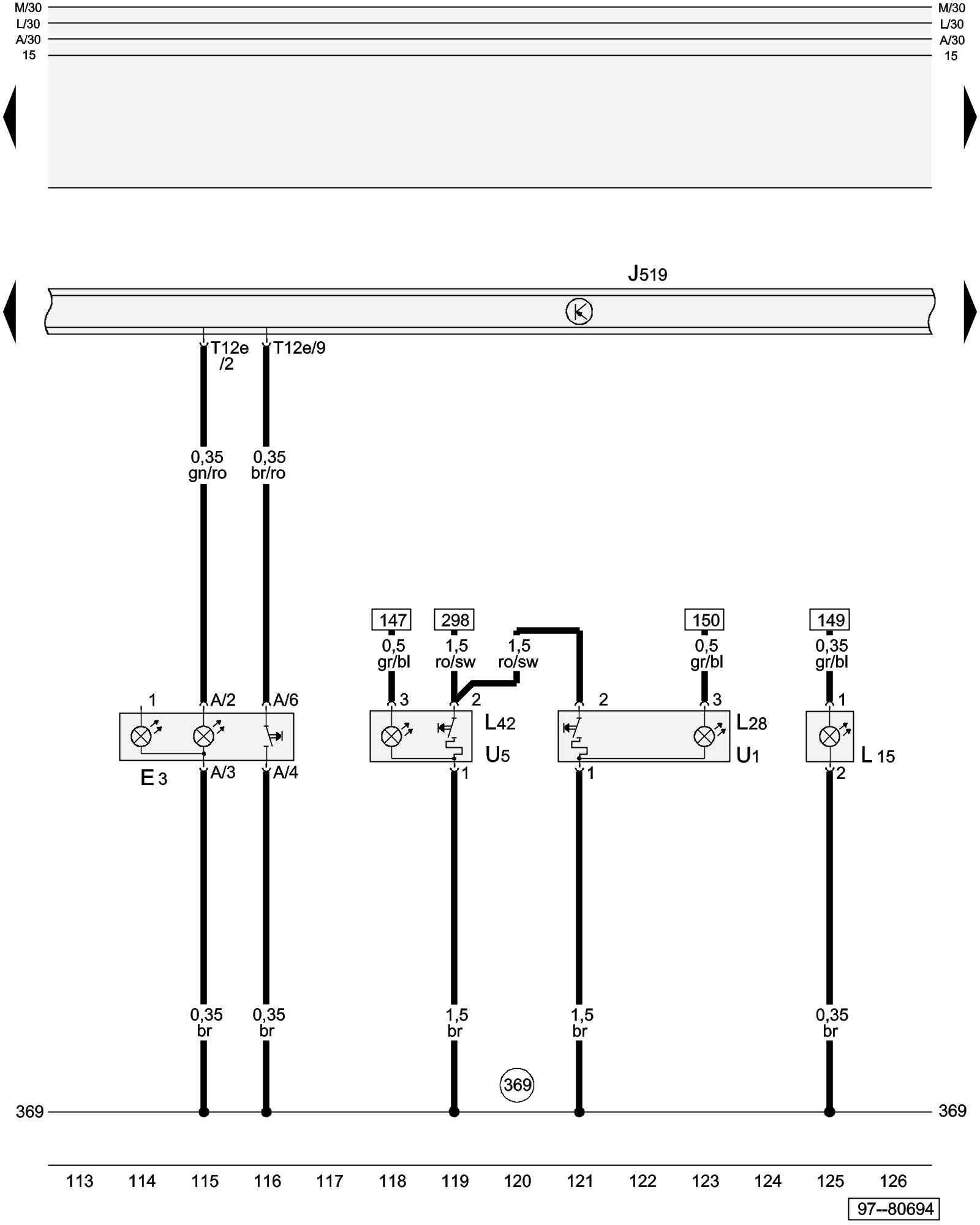

Emergency Flasher Switch, Cigarette Lighter, 12 V Socket





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E3 - Emergency Flasher Switch

J519 - Vehicle Electrical System Control Module Control Modules in Interior Of Vehicle

L15 - Ashtray Illumination

L28 - Cigarette Lighter Illumination

L42 - Socket Illumination

U1 - Cigarette Lighter

U5 - 12 V Socket

T12e - 12-Pin Connector, black (Connector G)

(369) - Ground Connection 4 (in main wiring harness)
