Diagram 101/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

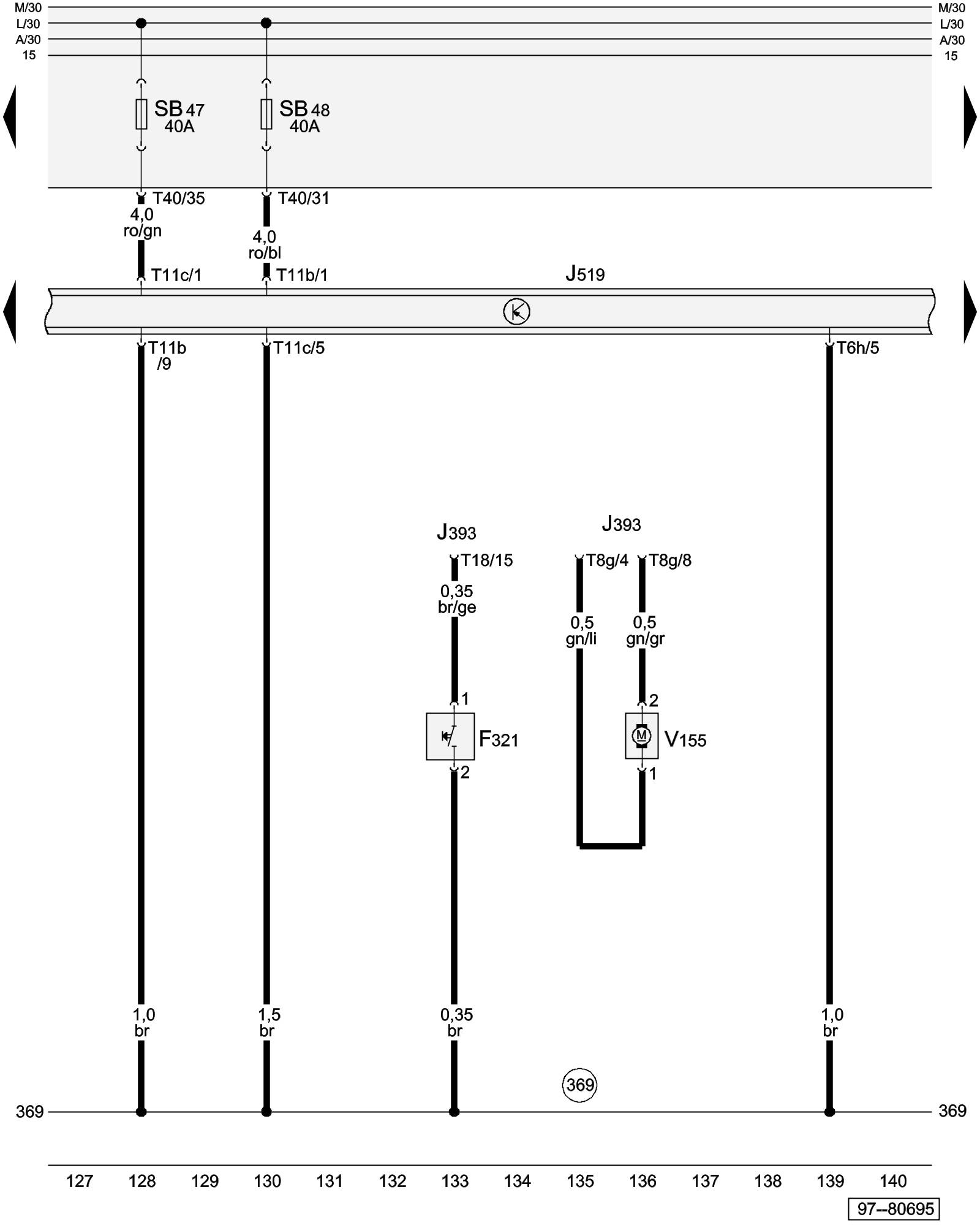

Parking Brake Contact Switch, Fuel Tank Lid Unlock Motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F321 - Parking Brake Contact Switch

J393 - Comfort System Central Control Module Overview Of Control Modules

J519 - Vehicle Electrical System Control Module Control Modules in Interior Of Vehicle

SB47 - Fuse 47 (on fuse panel B) Overview Of Fuses

SB48 - Fuse 48 (on fuse panel B) Overview Of Fuses

T6h - 6-Pin Connector, black (Connector J)

T8g - 8-Pin Connector, black (Connector B)

T11b - 11-Pin Connector, black (Connector A)

T11c - 11-Pin Connector, brown (Connector D)

T18 - 18-Pin Connector, brown (Connector A)

T40 - 40-Pin Connector, black, on electronics box engine compartment (Connector J)

V155 - Fuel Tank Lid Unlock Motor Locations

(369) - Ground Connection 4 (in main wiring harness)
