Diagram 101/20 (Tracks 253-266)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

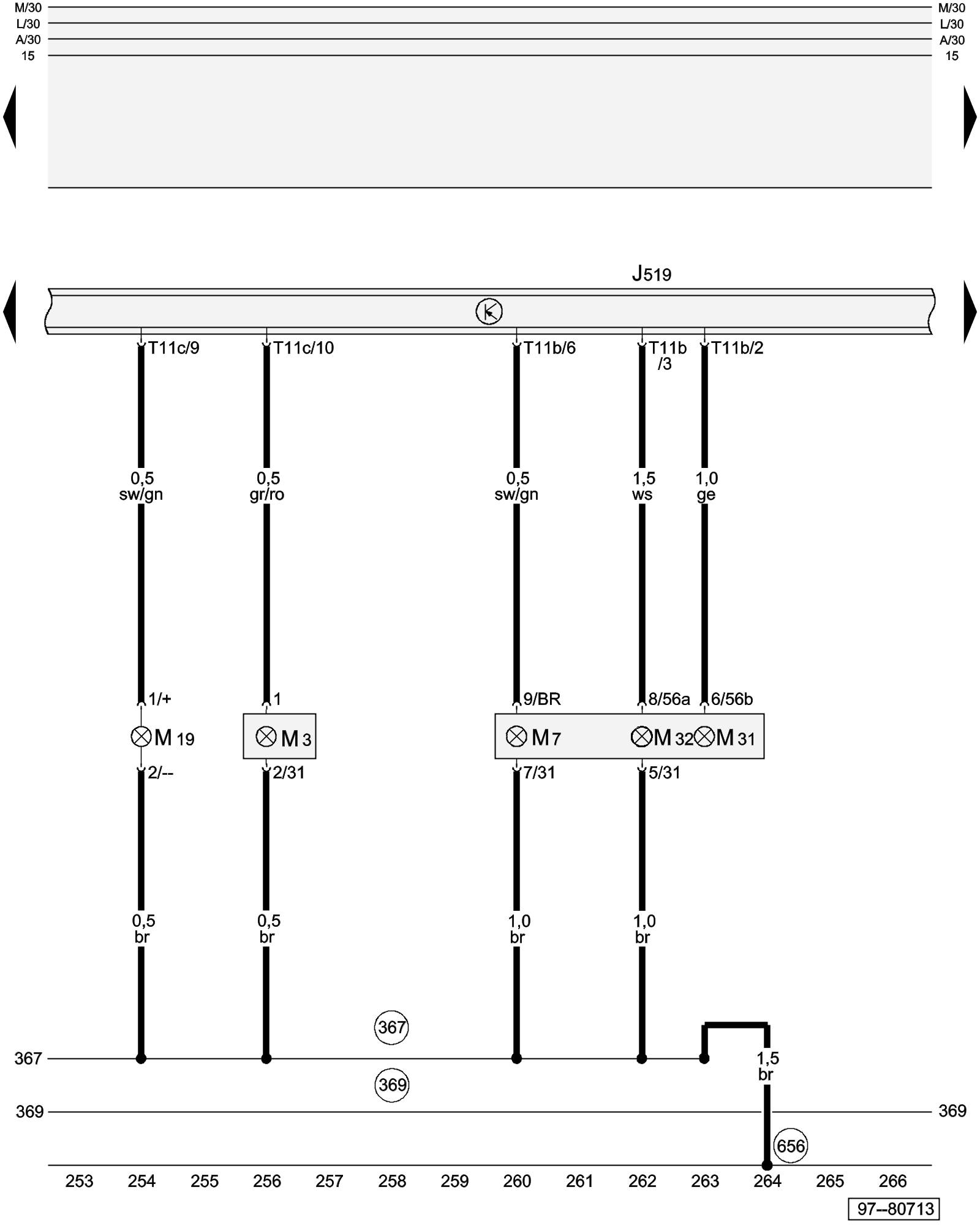

Right Parking Lamp, Front Right Parking Lamp, Right Side Turn Signal Lamp, Right Low Beam Headlamp, Right High Beam Headlamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle Electrical System Control Module Control Modules in Interior Of Vehicle

M3 - Right Parking Lamp

M7 - Right Front Turn Signal Lamp

M19 - Right Side Turn Signal Lamp

M31 - Right Low Beam Headlamp

M32 - Right High Beam Headlamp

T11b - 11-Pin Connector, black (Connector A)

T11c - 11-Pin Connector, brown (Connector D)

(367) - Ground Connection 2 (in main wiring harness)

(369) - Ground Connection 4 (in main wiring harness)

(656) - Ground Connection (on right headlamp) Overview Of Ground Connections in Front Part Of Vehicle
