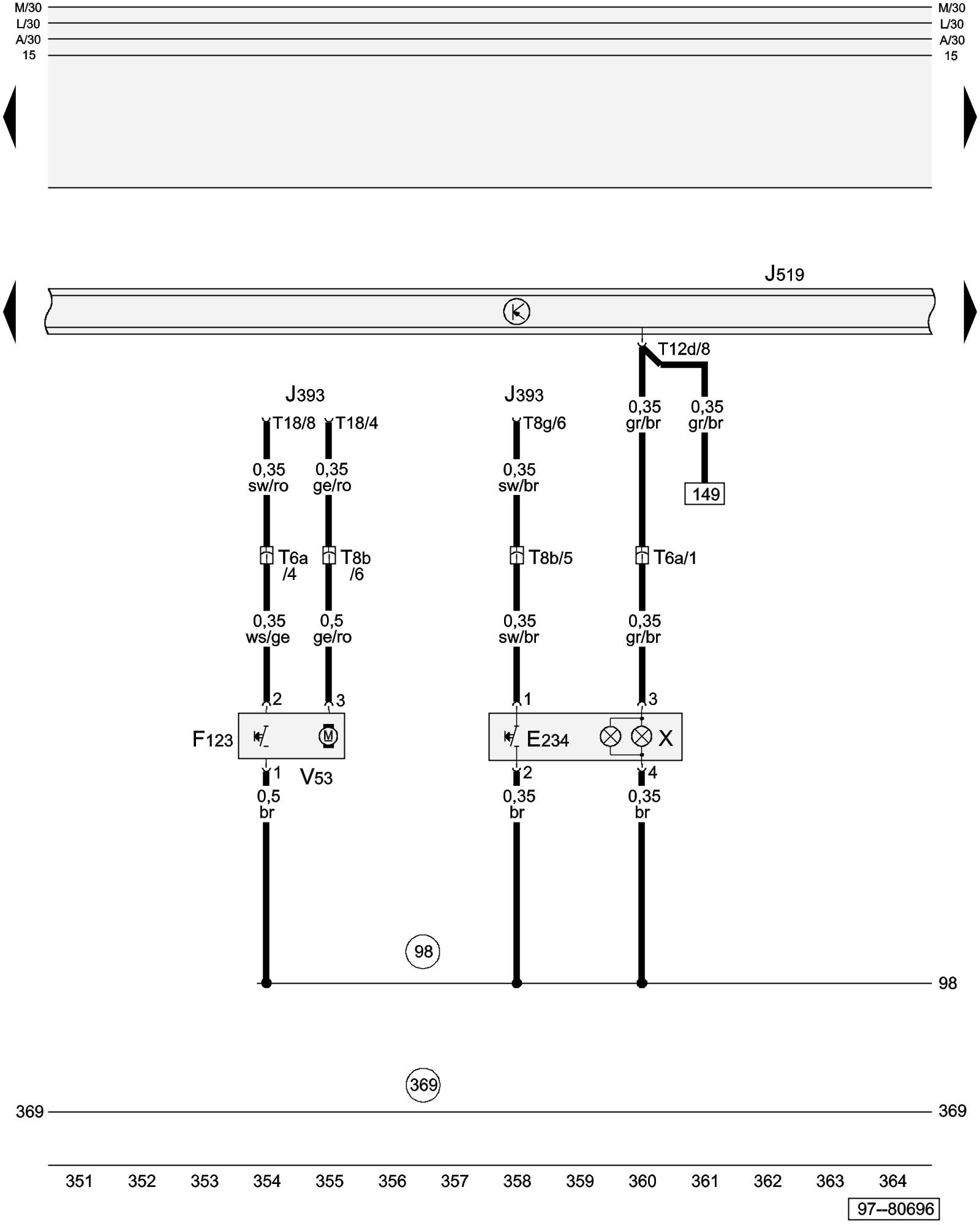

Diagram 101/27 (Tracks 351-364)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Trunk Lid Alarm Switch, Rear Lid Central Locking System Motor, License Plate Light





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E234 - Rear Lid Handle Unlock Switch

F123 - Trunk Lid Alarm Switch Rear Lid Lock

J393 - Comfort System Central Control Module Overview Of Control Modules

J519 - Vehicle Electrical System Control Module Control Modules in Interior Of Vehicle

T6a - 6-Pin Connector, black, on C-pillar, left

T8b - 8-Pin Connector, brown, on C-pillar, left

T8g - 8-Pin Connector, black (Connector B)

T12d - 12-Pin Connector, brown (Connector C)

T18 - 18-Pin Connector, brown (Connector A)

V53 - Rear Lid Central Locking System Motor Rear Lid Lock

X - License Plate Light

(98) - Ground Connection (in rear lid wiring harness)

(369) - Ground Connection 4 (in main wiring harness)
