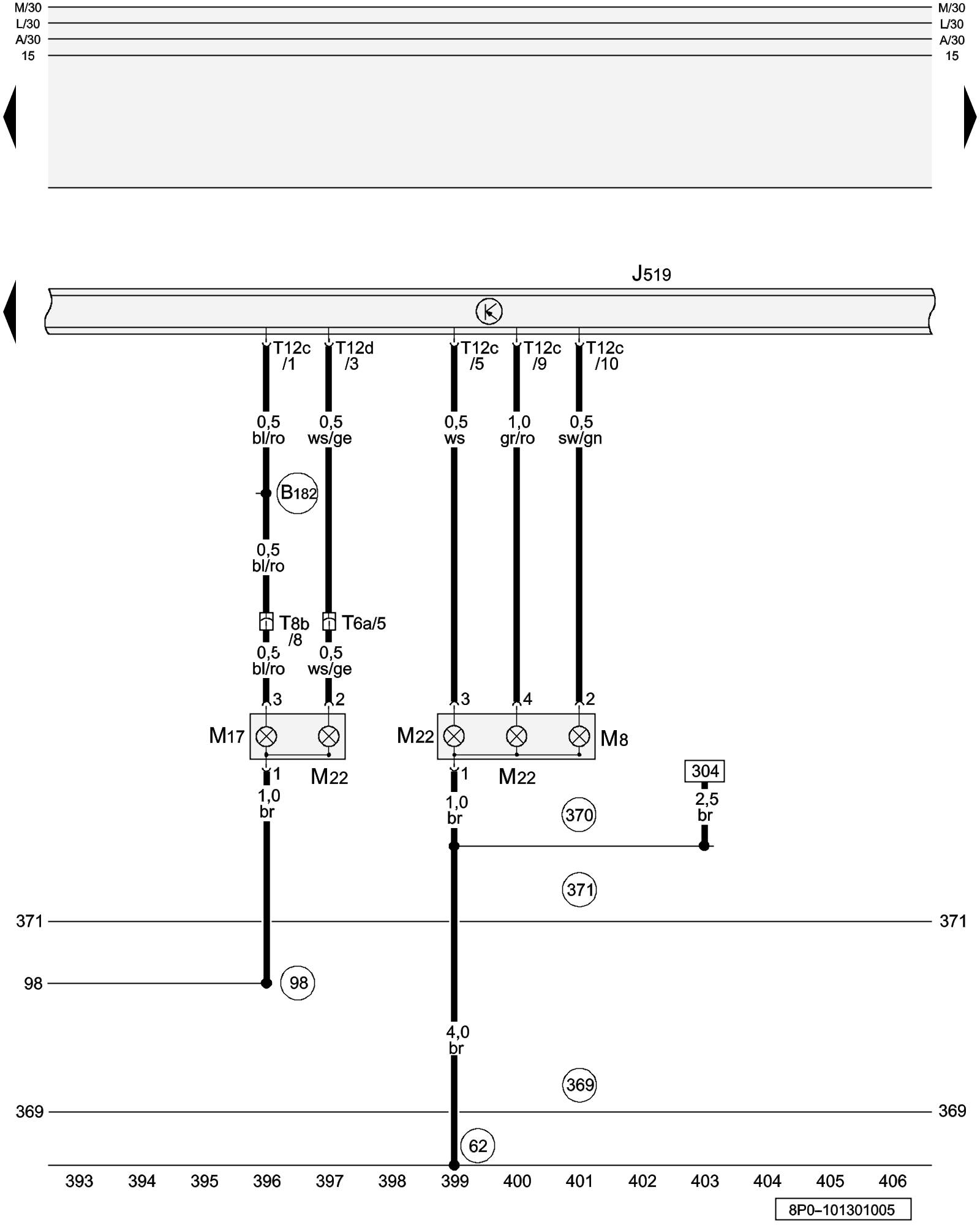

Diagram 101/30 (Tracks 393-406)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Right Taillamp, Right Rear Turn Signal Lamp, Right Brake Lamp, Right Back-Up Lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle Electrical System Control Module Control Modules in Interior Of Vehicle

M8 - Right Rear Turn Signal Lamp

M17 - Right Back-Up Lamp

M22 - Right Brake/Taillamp

T6a - 6-Pin Connector, black, on C-pillar, left

T8b - 8-Pin Connector, brown, on C-pillar, left

T12c - 12-Pin Connector, black (Connector B)

T12d - 12-Pin Connector, brown (Connector C)

(62) - Ground Connection (on right C-pillar) Overview Of Ground Connections in Rear Part Of Vehicle (3-door Models)

(98) - Ground Connection (in rear lid wiring harness)

(369) - Ground Connection 4 (in main wiring harness)

(370) - Ground Connection 5 (in main wiring harness)

(371) - Ground Connection 6 (in main wiring harness)

(B182) - Connection (RF) (in passenger compartment wiring harness)
