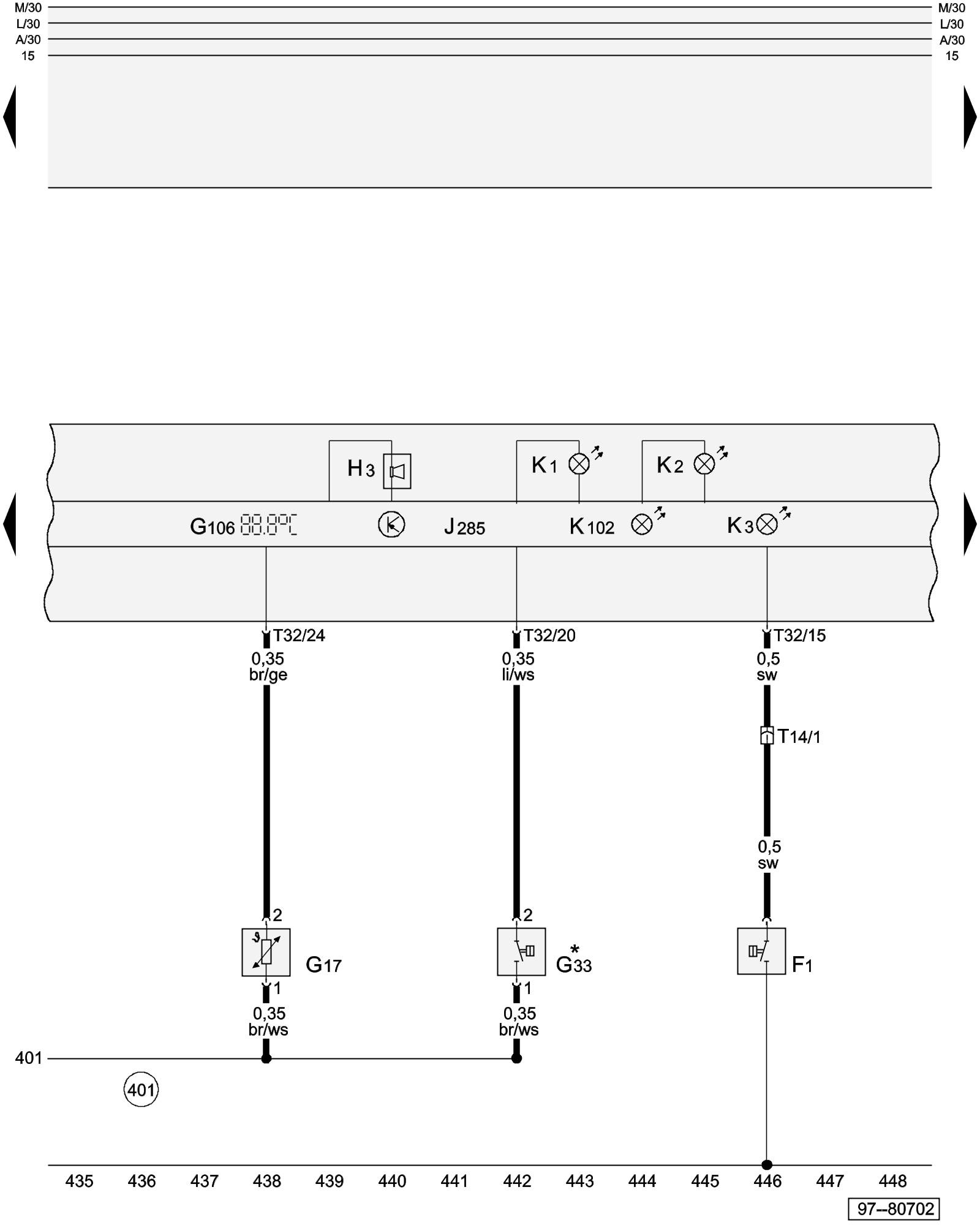

Diagram 101/33 (Tracks 435-448)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Instrument Cluster Control Module, Outside Air Temperature Sensor, Windshield Washer Fluid Level Sensor, Oil Pressure Switch, Warning Buzzer





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F1 - Oil Pressure Switch Locations

G17 - Outside Air Temperature Sensor Components Outside Pass Compartment - Group 1

G33 - Windshield Washer Fluid Level Sensor

G106 - Outside Air Temperature Display Components Inside Pass Compartment - Group 1

H3 - Warning Buzzer

J285 - Instrument Cluster Control Module Control Modules in Interior Of Vehicle

K1 - High Beam Indicator Lamp

K2 - Generator (GEN) Warning Lamp

K3 - Oil Pressure Warning Lamp

K102 - Rear Hatch/Trunk Lid Ajar Warning Lamp

T14 - 14-Pin Connector, black, near left front long member

T32 - 32-Pin Connector, blue (Connector A)

(401) - Sensor Ground Connection (in interior wiring harness)

* - Only models with windshield washer fluid level sensor
