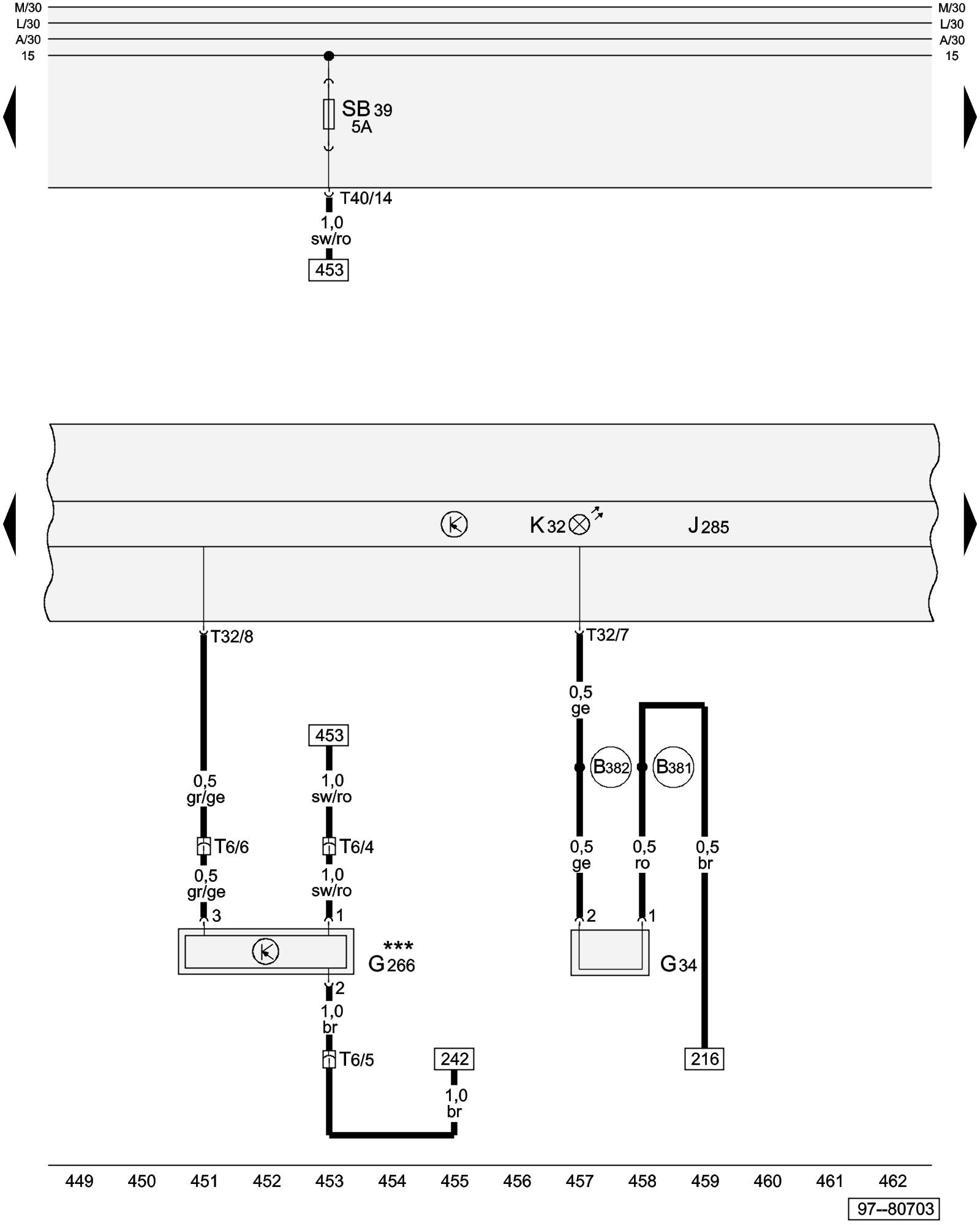

Diagram 101/34 (Tracks 449-462)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Instrument Cluster Control Module, Left Front Brake Pad Wear Sensor, Oil Level Thermal Sensor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G34 - Left Front Brake Pad Wear Sensor

G266 - Oil Level Thermal Sensor Locations

J285 - Instrument Cluster Control Module Control Modules in Interior Of Vehicle

K32 - Brake Pad Wear Indicator Lamp

SB39 - Fuse 39 (on fuse panel B) Overview Of Fuses

T6 - 6-Pin Connector, black, near left front long member

T32 - 32-Pin Connector, blue (Connector A)

T40 - 40-Pin Connector, black, on electronics box engine compartment (Connector J)

(B381) - Brake Wear Indicator Connection 3 (in main wiring harness)

(B382) - Brake Wear Indicator Connection 4 (in main wiring harness)

*** - Only models with extended service intervals
