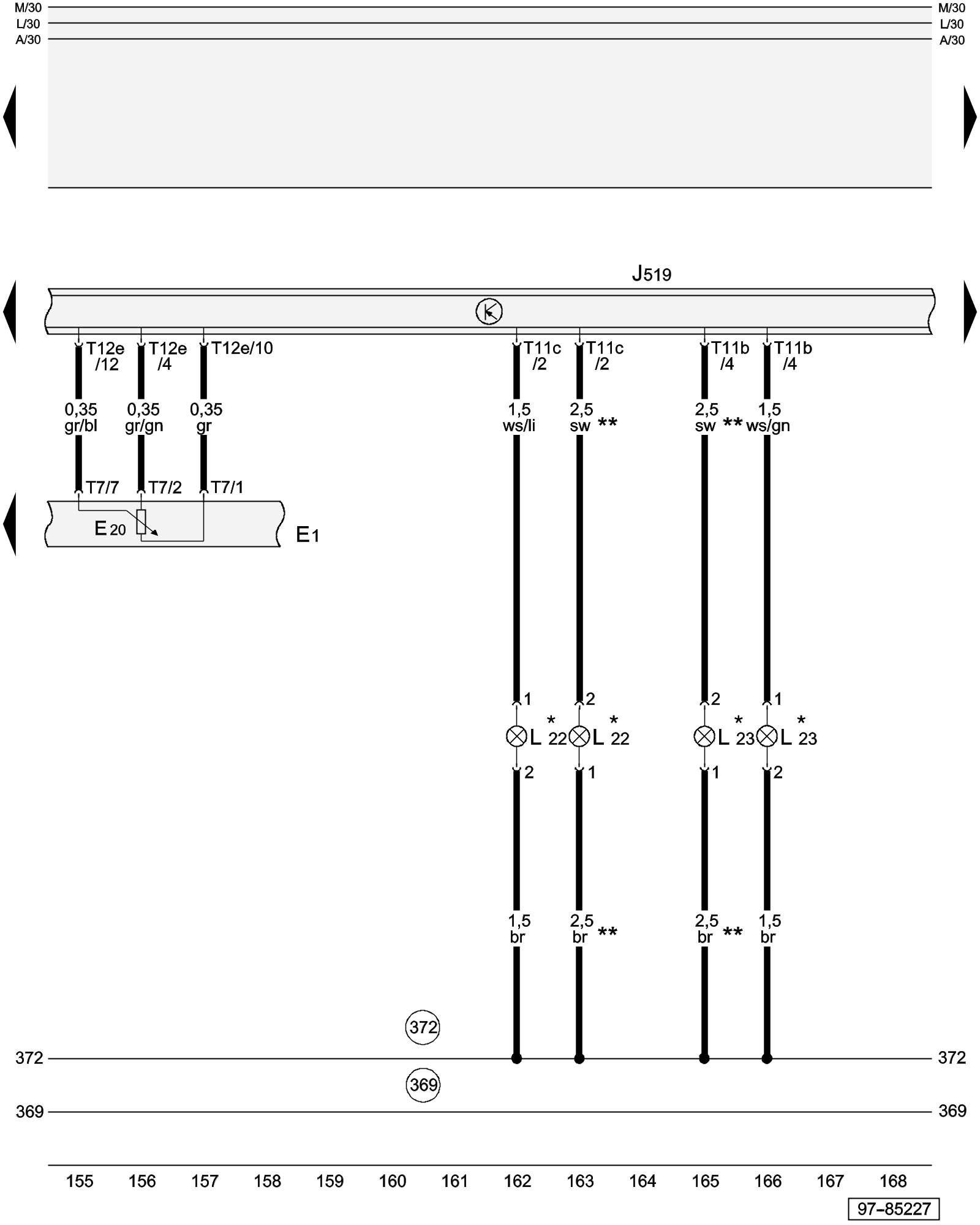

Diagram 112/13 (Tracks 155-168)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Instrument Panel Illumination Dimmer Switch, Left Front Fog Lamp, Right Front Fog Lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E1 - Light Switch

E20 - Instrument Panel Illumination Dimmer Switch

J519 - Vehicle Electrical System Control Module Control Modules in Interior Of Vehicle

L22 - Left Front Fog Lamp

L23 - Right Front Fog Lamp

T7 - 7-Pin Connector, black (Connector B)

T11b - 11-Pin Connector, black (Connector A)

T11c - 11-Pin Connector, brown (Connector D)

T12e - 12-Pin Connector, black (Connector G)

(369) - Ground Connection 4 (in main wiring harness)

(372) - Ground Connection 7 (in main wiring harness)

* - Only models with front fog lamps

** - Only models with S line equipment
