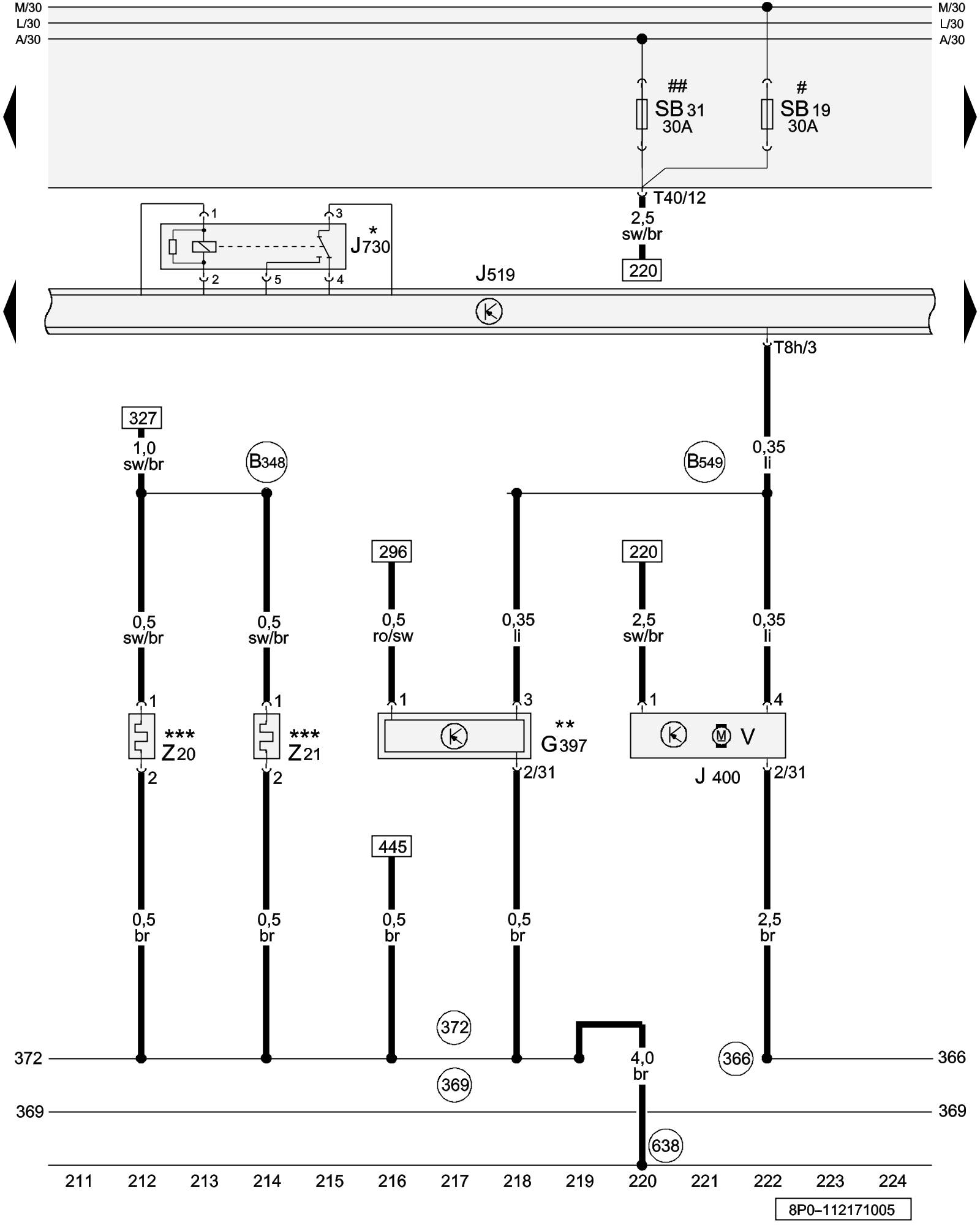

Diagram 112/17 (Tracks 211-224)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Rain/Light Recognition Sensor, Windshield Wiper Motor, Dual Washer Pump Relay 2





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G397 - Rain/Light Recognition Sensor

J400 - Wiper Motor Control Module Control Modules in Front Part Of Vehicle

J519 - Vehicle Electrical System Control Module Control Modules in Interior Of Vehicle

J730 - Dual Washer Pump Relay 2 Overview Of Relay

SB19 - Fuse 19 (on fuse panel B) Overview Of Fuses

SB31 - Fuse 31 (on fuse panel B) Overview Of Fuses

T8h - 8-Pin Connector, black (Connector F)

T40 - 40-Pin Connector, black, on electronics box engine compartment (Connector J)

V - Windshield Wiper Motor

Z20 - Left Washer Nozzle Heater

Z21 - Right Washer Nozzle Heater

(366) - Ground Connection 1 (in main wiring harness)

(369) - Ground Connection 4 (in main wiring harness)

(372) - Ground Connection 7 (in main wiring harness)

(638) - Ground Connection (on right A-pillar) Overview Of Ground Connections in Interior Of Vehicle

(B348) - Connection 1 (75A) (in main wiring harness)

(B549) - LIN-Bus Connection 2 (in main wiring harness)

* - Front Windshield Washer Pump Relay

** - Only models with automatic headlamp switching

*** - Only models with washer nozzles heater

# - Only models with electronics box Low => Component Locations

## - Only models with electronics box High => Component Locations
