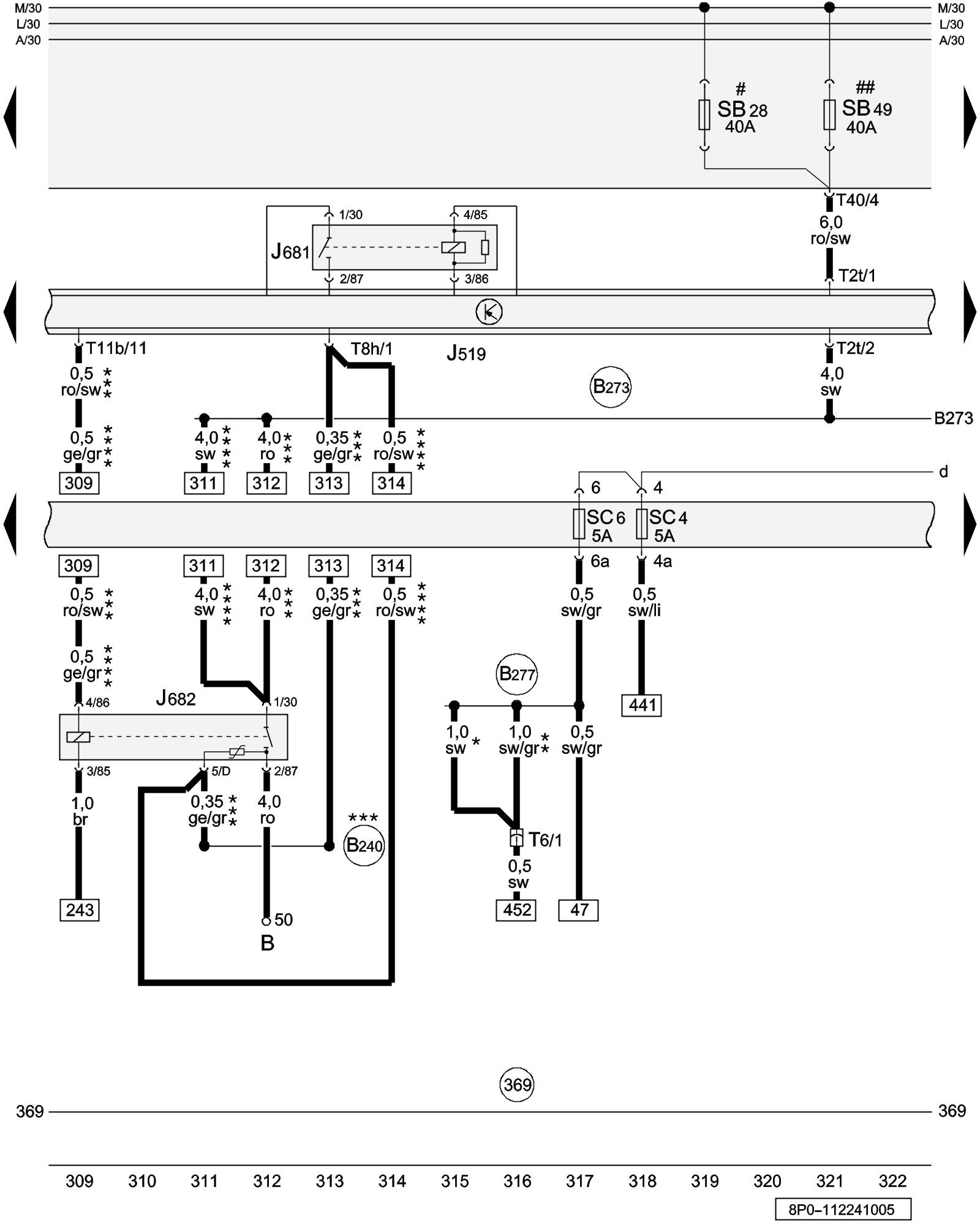

Diagram 112/24 (Tracks 309-322)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Power Supply Relay (terminal 15), Fuses (on fuse panel)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

B - Starter

J519 - Vehicle Electrical System Control Module Control Modules in Interior Of Vehicle

J681 - Power Supply Relay 2 (terminal 15) Overview Of Relay

J682 - Power Supply Relay (terminal 50) Overview Of Relay

SB28 - Fuse 28 (on fuse panel B) Overview Of Fuses

SB49 - Fuse 49 (on fuse panel B) Overview Of Fuses

SC4 - Fuse 4 (on fuse panel C) Overview Of Fuses

SC6 - Fuse 6 (on fuse panel C) Overview Of Fuses

T2t - Double Connector, black (Connector L)

T6 - 6-Pin Connector, black, near left front long member

T8h - 8-Pin Connector, black (Connector F)

T11b - 11-Pin Connector, black (Connector A)

T40 - 40-Pin Connector, black, on electronics box engine compartment (Connector J)

(369) - Ground Connection 4 (in main wiring harness)

(B240) - Plus Connection 2 (50) (in interior wiring harness)

(B273) - Plus Connection (15) (in main wiring harness)

(B277) - Plus Connection 1 (15a) (in main wiring harness)

* - Not applicable, phased-in modification

** - Phased-in modification

*** - Not applicable from November 2005

**** - Applicable from November 2005

# - Only models with electronics box Low => Component Locations

## - Only models with electronics box High => Component Locations
