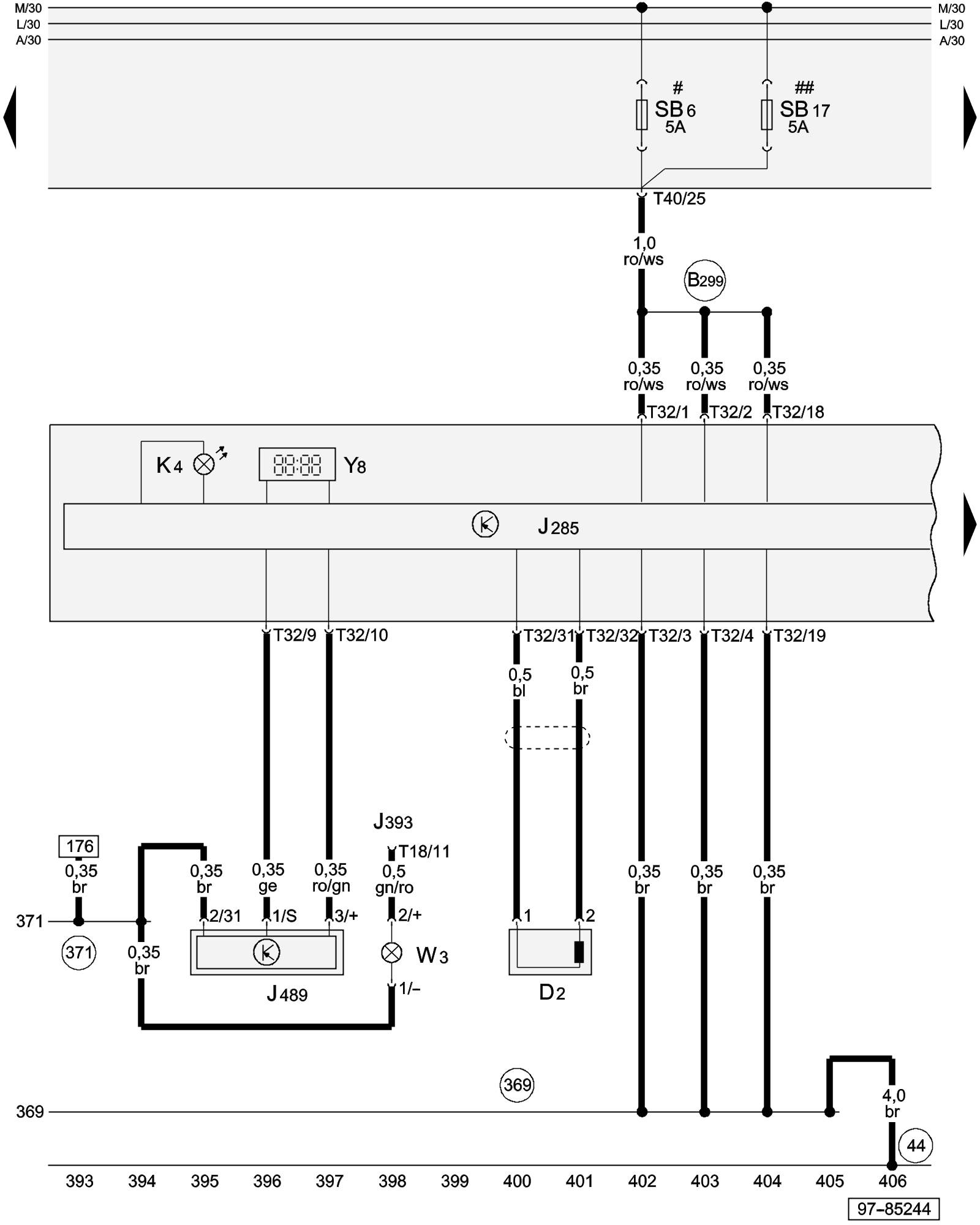

Diagram 112/30 (Tracks 393-406)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Instrument Cluster Control Module, Radio Frequency Controlled Clock, Luggage Compartment Light





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

D2 - Anti-Theft Immobilizer Reading Coil

J285 - Instrument Cluster Control Module Control Modules in Interior Of Vehicle

J393 - Comfort System Central Control Module Overview Of Control Modules

J489 - Radio Frequency Controlled Clock Receiver

K4 - Parking Light Indicator Lamp

SB6 - Fuse 6 (on fuse panel B) Overview Of Fuses

SB17 - Fuse 17 (on fuse panel B) Overview Of Fuses

T18 - 18-Pin Connector, brown (Connector A)

T32 - 32-Pin Connector, blue (Connector A)

T40 - 40-Pin Connector, black, on electronics box engine compartment (Connector J)

W3 - Luggage Compartment Light

Y8 - Radio Frequency Controlled Clock

(44) - Ground Connection (on left lower A-pillar) Overview Of Ground Connections in Interior Of Vehicle

(369) - Ground Connection 4 (in main wiring harness)

(371) - Ground Connection 6 (in main wiring harness)

(B299) - Plus Connection 3 (30) (in main wiring harness)

# - Only models with electronics box Low => Component Locations

## - Only models with electronics box High => Component Locations
