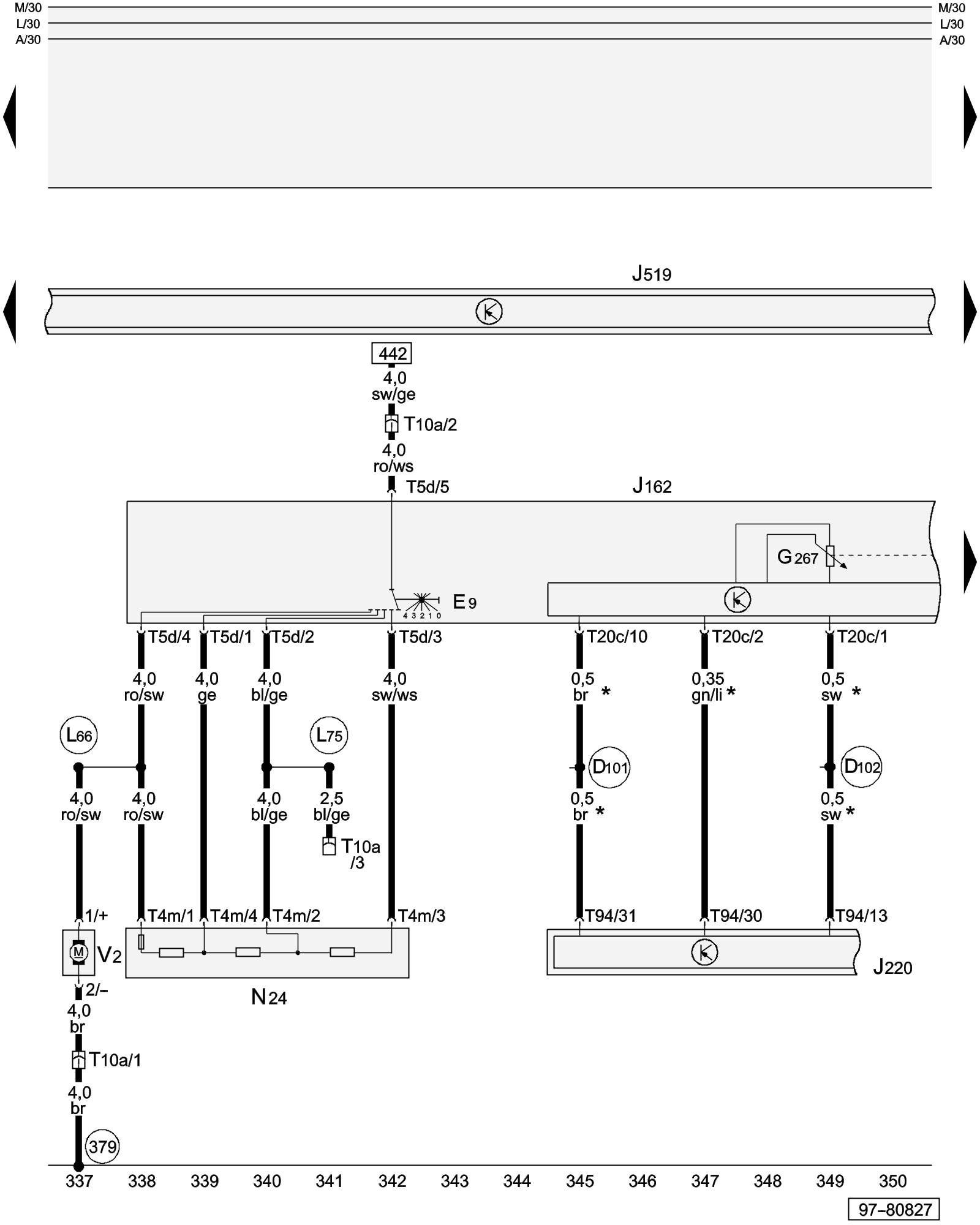

Diagram 102/26 (Tracks 337-350)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Fresh Air Blower Switch, Temperature Selector Knob Potentiometer





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E9 - Fresh Air Blower Switch

G267 - Temperature Selector Knob Potentiometer

J162 - Heater Control Module Control Modules in Interior Of Vehicle

J220 - Motronic Engine Control Module (ECM) Control Modules in Front Part Of Vehicle

J519 - Vehicle Electrical System Control Module Control Modules in Interior Of Vehicle

N24 - Fresh Air Blower Series Resistor With Fuse Heating & A/C Unit Components - Manual A/C System

T4m - 4-Pin Connector, black (Connector A)

T5d - 5-Pin Connector, black (Connector C)

T10a - 10-Pin Connector, black, behind glove compartment

T20c - 20-Pin Connector, black (Connector A)

T94 - 94-Pin Connector, black (Connector B)

V2 - Fresh Air Blower Heating & A/C Unit Components - Manual A/C System

(379) - Ground Connection 14 (in main wiring harness)

(D101) - Connection 1 (in engine compartment wiring harness)

(D102) - Connection 2 (in engine compartment wiring harness)

(L66) - Connection (in wiring harness) heater blower

(L75) - Connection 2 (in heater blower wiring harness)

* - Only models with fuel injection engine FSI, not applicable from November 2005
