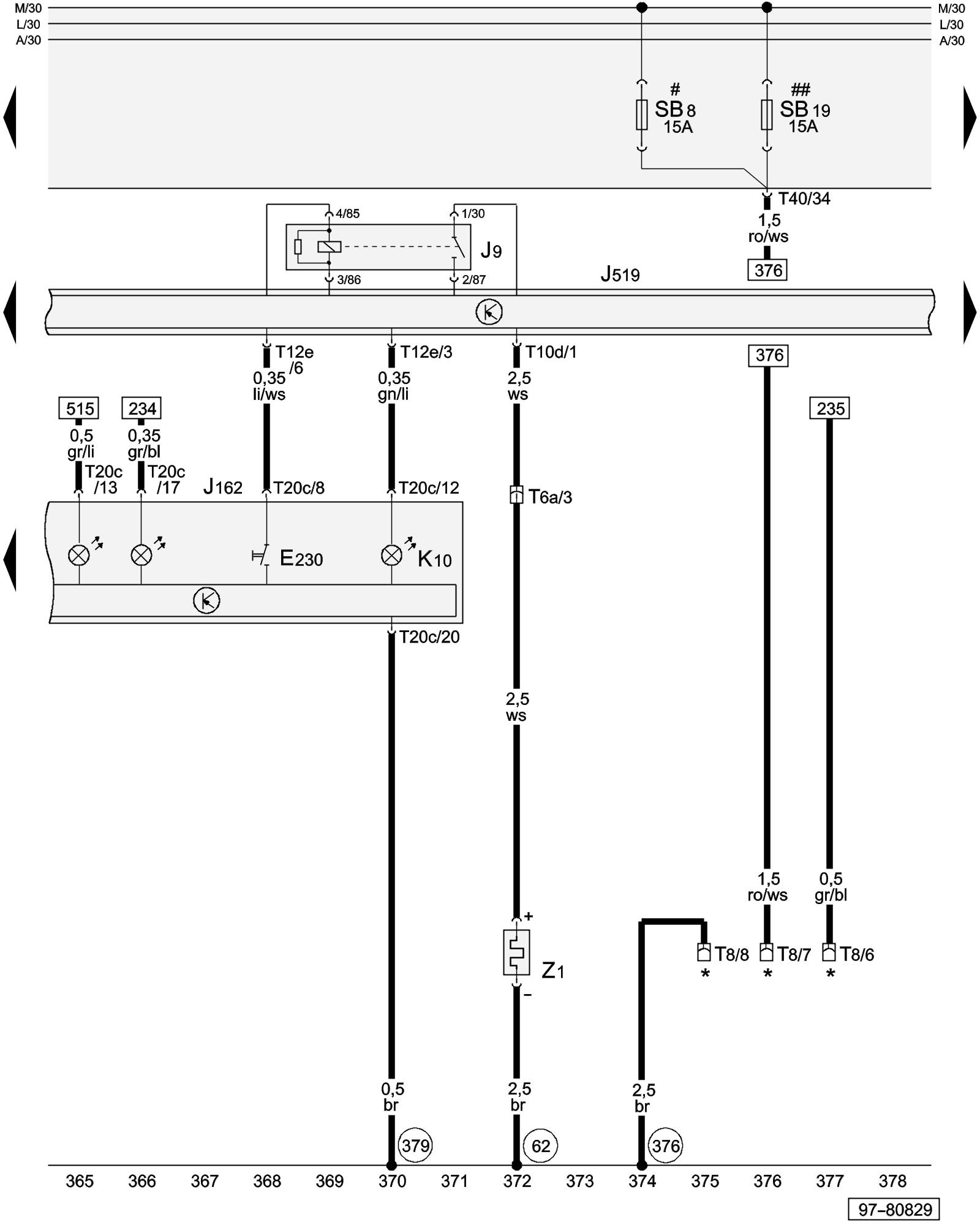

Diagram 102/28 (Tracks 365-378)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Heated Rear Window Button, Rear Window Defogger Relay





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E230 - Heated Rear Window Button

J9 - Rear Window Defogger Relay Overview Of Relay

J162 - Heater Control Module Control Modules in Interior Of Vehicle

J519 - Vehicle Electrical System Control Module Control Modules in Interior Of Vehicle

K10 - Heated Rear Window Warning Lamp

SB8 - Fuse 8 (on fuse panel B) Overview Of Fuses

SB19 - Fuse 19 (on fuse panel B) Overview Of Fuses

T6a - 6-Pin Connector, black, on C-pillar, left

T8 - 8-Pin Connector, black (Connector A)

T10d - 10-Pin Connector, black (Connector K)

T12e - 12-Pin Connector, black (Connector G)

T20c - 20-Pin Connector, black (Connector A)

T40 - 40-Pin Connector, black, on electronics box engine compartment (Connector J)

Z1 - Heated Rear Window Components Outside Pass Compartment - Group 1

(62) - Ground Connection (on right C-pillar) Overview Of Ground Connections in Rear Part Of Vehicle (3-door Models)

(376) - Ground Connection 11 (in main wiring harness)

(379) - Ground Connection 14 (in main wiring harness)

* - Only models with preparation for radio

# - Only models with electronics box Low => Component Locations

## - Only models with electronics box High => Component Locations
