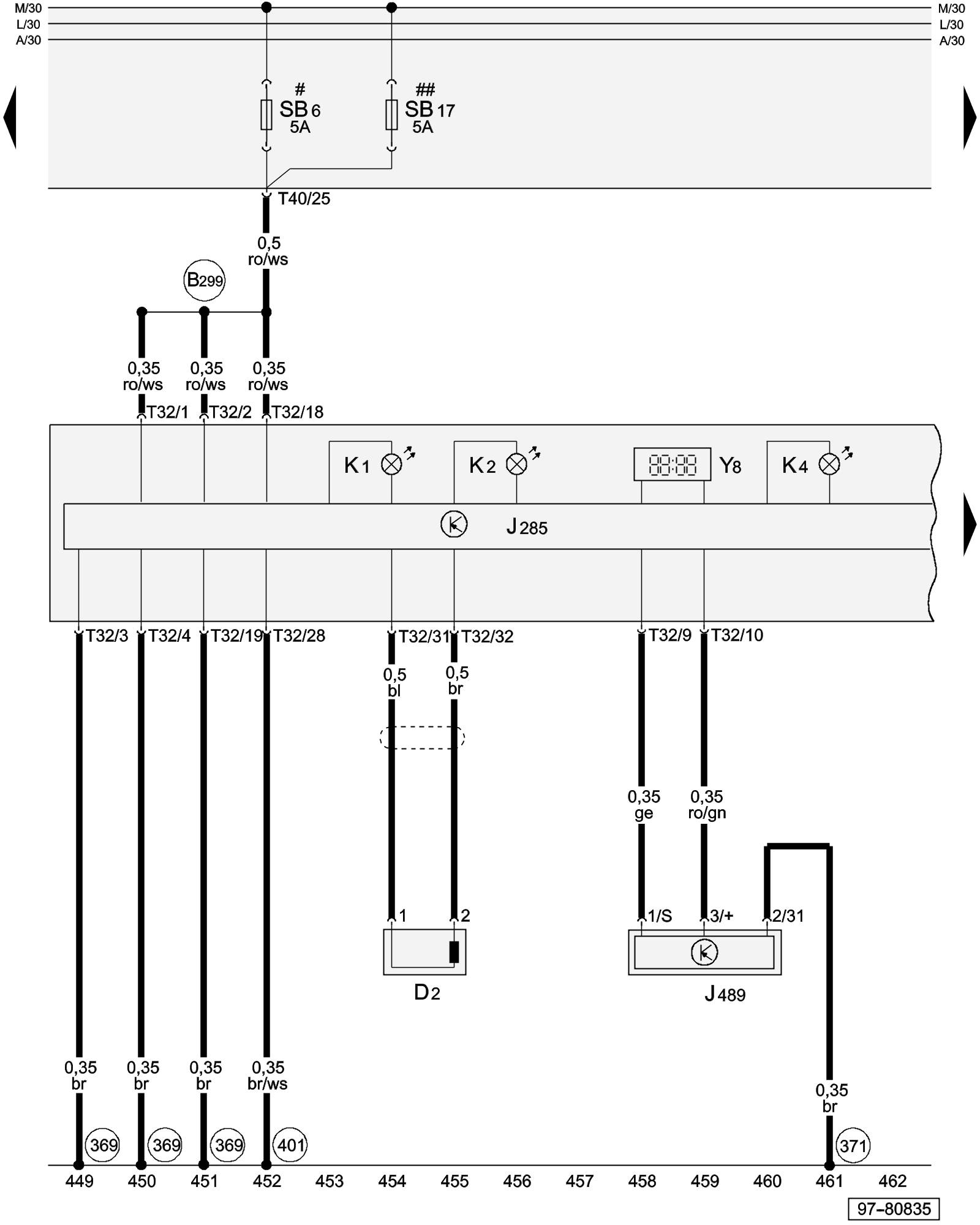

Diagram 102/34 (Tracks 449-462)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Radio Frequency Controlled Clock Receiver, Anti-Theft Immobilizer Reading Coil, Instrument Cluster Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

D2 - Anti-Theft Immobilizer Reading Coil

J285 - Instrument Cluster Control Module Control Modules in Interior Of Vehicle

J489 - Radio Frequency Controlled Clock Receiver

K1 - High Beam Indicator Lamp

K2 - Generator (GEN) Warning Lamp

K4 - Parking Light Indicator Lamp

SB6 - Fuse 6 (on fuse panel B) Overview Of Fuses

SB17 - Fuse 17 (on fuse panel B) Overview Of Fuses

T32 - 32-Pin Connector, blue (Connector A)

T40 - 40-Pin Connector, black, on electronics box engine compartment (Connector J)

Y8 - Radio Frequency Controlled Clock

(369) - Ground Connection 4 (in main wiring harness)

(371) - Ground Connection 6 (in main wiring harness)

(401) - Sensor Ground Connection (in interior wiring harness)

(B299) - Plus Connection 3 (30) (in main wiring harness)

# - Only models with electronics box Low => Component Locations

## - Only models with electronics box High => Component Locations
