Multiport Fuel Injection

Special Tools






Special tools, testers and auxiliary items required

• Fuel Inj. Pressure Gauge-CIS (V.A.G 1318)

• Adapter (V.A.G 1318/11)

• Adapter (V.A.G 1318/17-1) from Adapter Kit (V.A.G 1318/17)

• Double Connection (V.A.G 1318/23)

• Remote Control (V.A.G 1348/3 A) with Adapter Cable (V.A.G 1348/3-3)

• Connector Test Set (V.A.G 1594 C) or (V.A.G 1594 A)

Special tools, testers and auxiliary items required

• Adapter (V.A.G 1598/39-1)

• Adapter (V.A.G 1598/39-2)

• Test Box 105 Pin (V.A.G 1598/42)





• Assembly Tool (T10118)

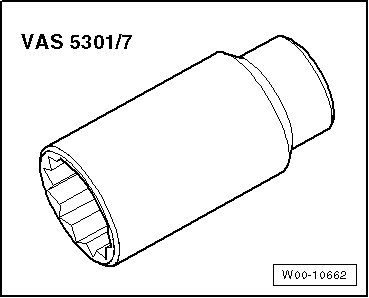

• Double Hexagon Socket, 1/2", 27 mm (VAS 5301/7)

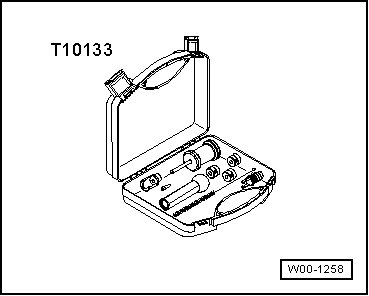

• Tool Set (T10133)





• Ring Spanner 7-Piece Set (3337)

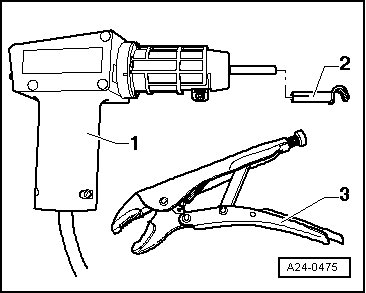

• Hot air gun - 1 - from the Wiring Harness Repair Kit (VAS 1978A))





• Nozzle attachment - 2 - also from the Wiring Harness Repair Kit (VAS 1978A)

• Commercially available locking pliers (vise grips) - 3 -

• Vehicle diagnostic, testing, and information system (VAS 5051B)
