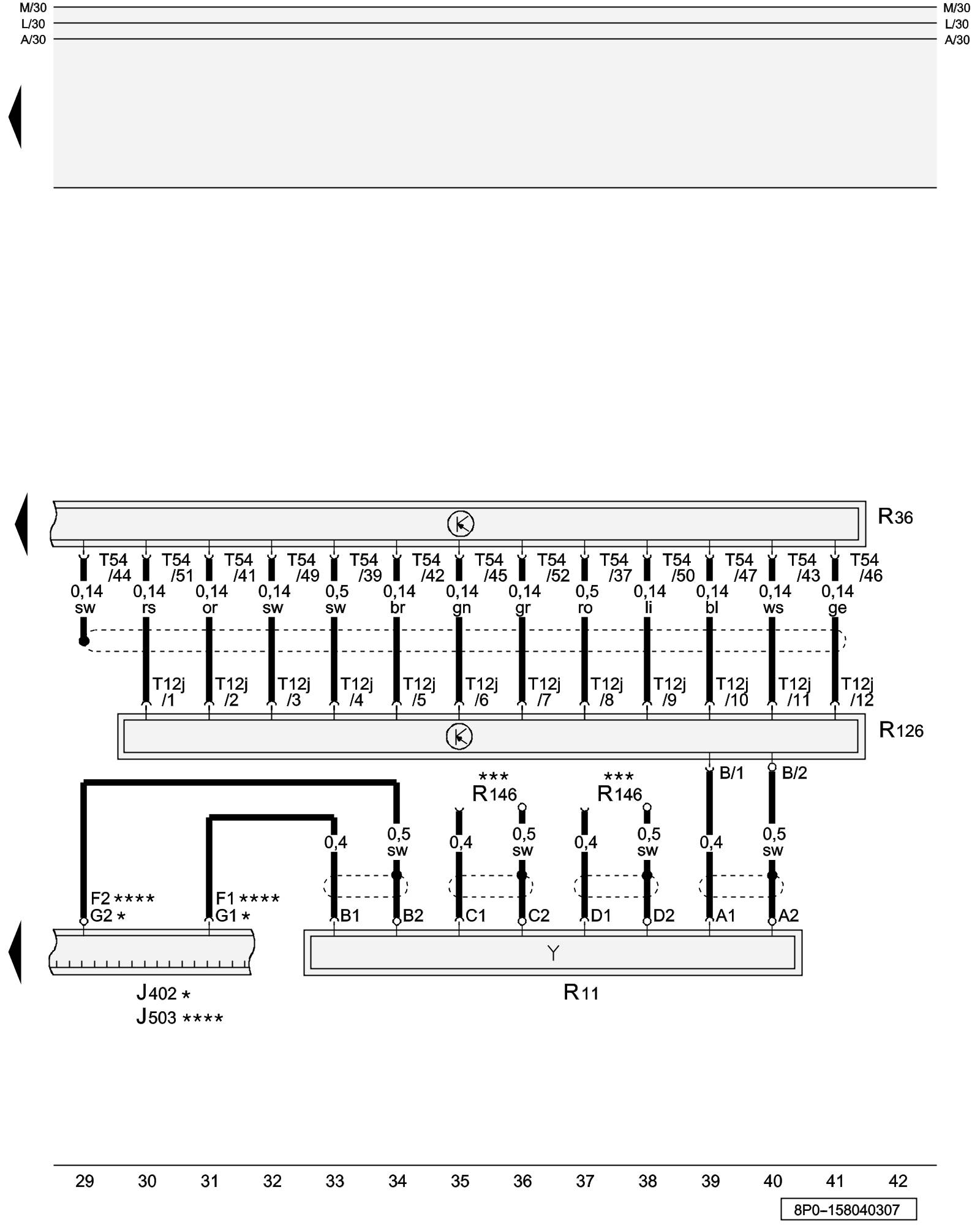

Diagram 177/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Roof Antenna, Telephone Baseplate





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J402 - Navigation System Operating Electronics Control Module Control Modules in Interior Of Vehicle

J503 - Radio/Navigation Display Control Module Control Modules in Interior Of Vehicle

R11 - Antenna Locations

R36 - Telephone Transceiver Phone System Component Overview

R126 - Telephone Baseplate Phone System Component Overview

R146 - Satellite Radio Overview Of Control Modules

T12j - 12-Pin Connector, brown (Connector A)

T54 - 54-Pin Connector, black (Connector A)

* - Only models with radio/navigation system (RNS-E)

*** - Only models with satellite radio

**** - Only models with radio/navigation system (RNS-Low)
