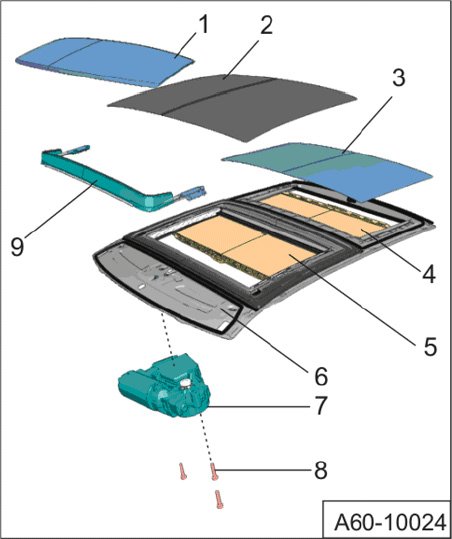

Exterior Assembly Parts

Exterior Assembly Parts







1 - Panel - 1 -
- Bonded to roof module.
- Cannot be removed undamaged without removing windshield.
2 - Panel - 2 -
3 - Panel - 3 -
- Bonded to roof module.
4 - Rear sun shade
- Removal
5 - Front sun shade
6 - Roof module
- Overview
7 - Sunroof motor
8 - Combination bolts
- 3.5 Nm
9 - Wind deflector
