Diagram 21/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

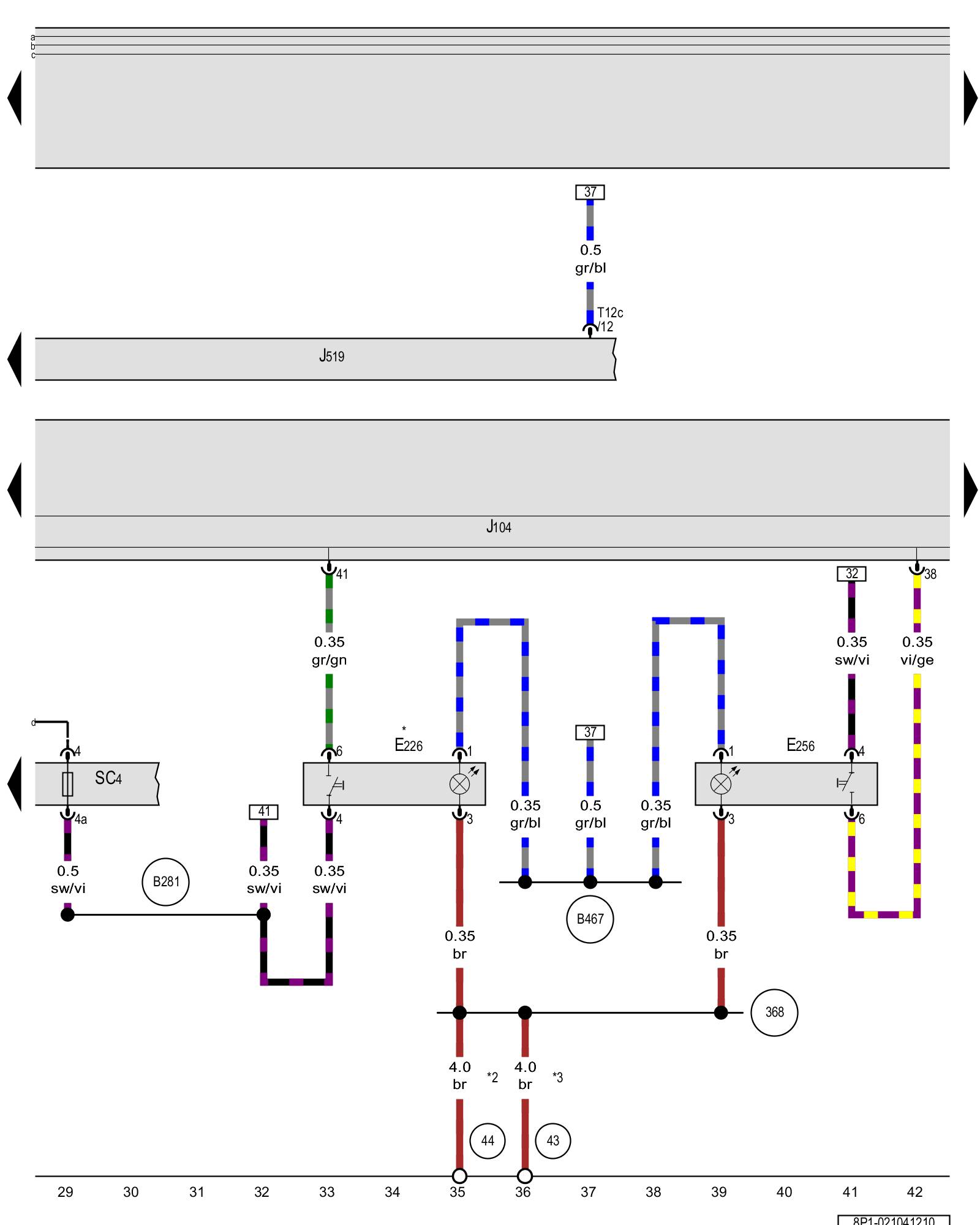

Tire pressure monitoring button, ASR/ESP button, ABS control module, Vehicle electrical system control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E226 - Tire pressure monitoring button

E256 - ASR/ESP button

J104 - ABS control module Control Modules in Front Part Of Vehicle

J519 - Vehicle electrical system control module Control Modules in Interior Of Vehicle

SC4 - Fuse 4 (on fuse panel C) Overview Of Fuses

T12c - 12-pin connector

(43) - Ground connection on A-pillar, lower right Overview Of Ground Connections in Interior Of Vehicle

(44) - Ground connection on A-pillar, lower left Overview Of Ground Connections in Interior Of Vehicle

(368) - Ground connection 3 (in main wiring harness)

(B281) - Positive connection 5 (15a) (in main wiring harness)

(B467) - Connection 3 (in main wiring harness)

* - If available

*2 - Only for left-hand drive vehicles

*3 - Only for right-hand drive vehicles

Previous Diagram 21/3 (Tracks 15-28)

Next Diagram 21/5 (Tracks 43-56)
