Diagram 2/14 (Tracks 169-182)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

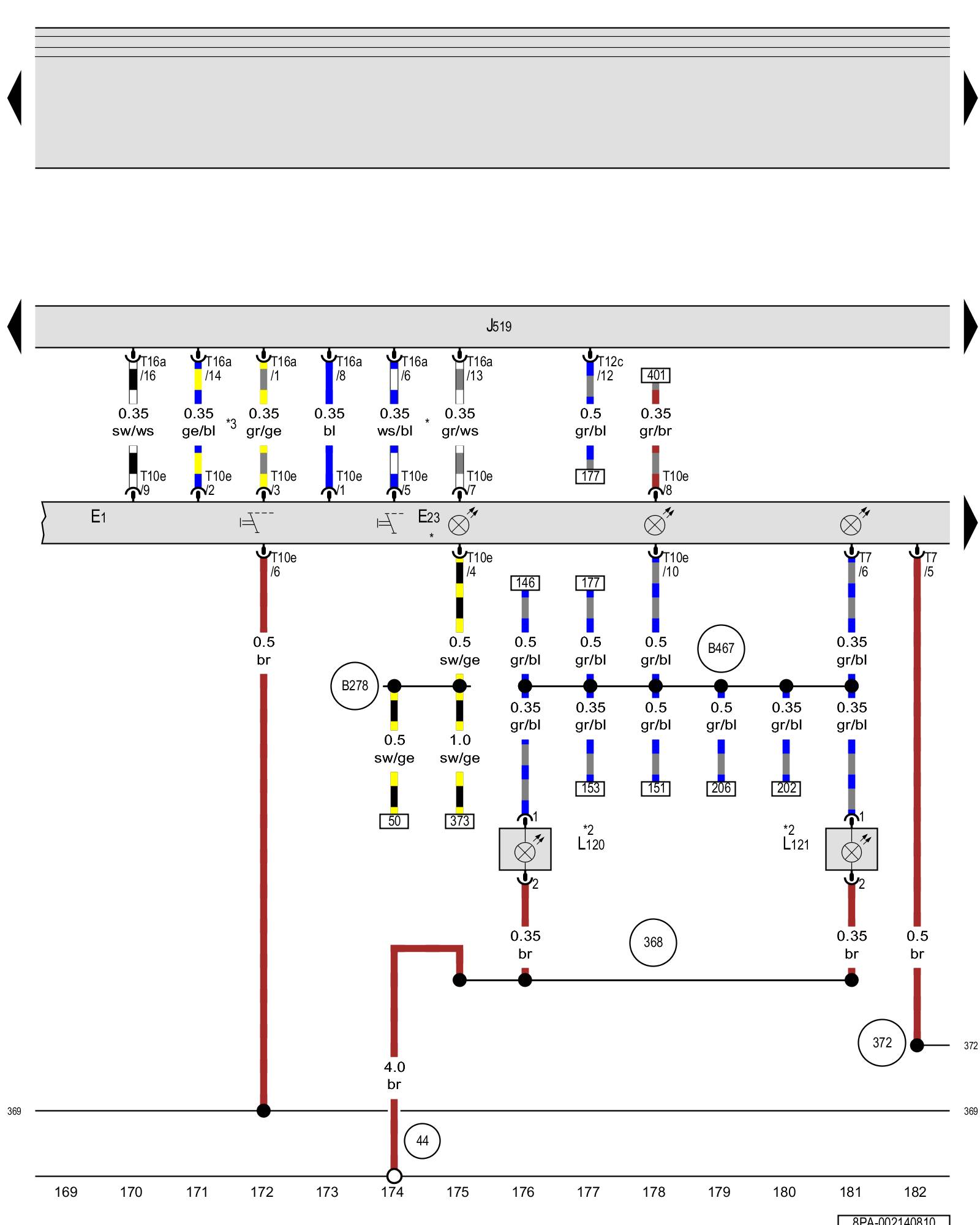

Light switch, Fog lamp and rear fog lamp switch, Vehicle electrical system control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E1 - Light switch

E23 - Fog lamp and rear fog lamp switch

J519 - Vehicle electrical system control module Control Modules in Interior Of Vehicle

L120 - Storage compartment illumination bulb

L121 - Cupholder illumination bulb

T7 - 7-pin connector

T10e - 10-pin connector

T12c - 12-pin connector

T16a - 16-pin connector

(44) - Ground connection on A-pillar, lower left Overview Of Ground Connections in Interior Of Vehicle

(368) - Ground connection 3 (in main wiring harness)

(369) - Ground connection 4 (in main wiring harness)

(372) - Ground connection 7 (in main wiring harness)

(B278) - Positive connection 2 (15a) (in main wiring harness)

(B467) - Connection 3 (in main wiring harness)

* - Only for vehicles with fog lamps

*2 - Only for vehicles with illuminated storage compartments and cupholders

*3 - Only for vehicles with automatic headlamp assist

Previous Diagram 2/13 (Tracks 155-168)

Next Diagram 2/15 (Tracks 183-196)
