Diagram 2/27 (Tracks 351-364)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Vehicle electrical system control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

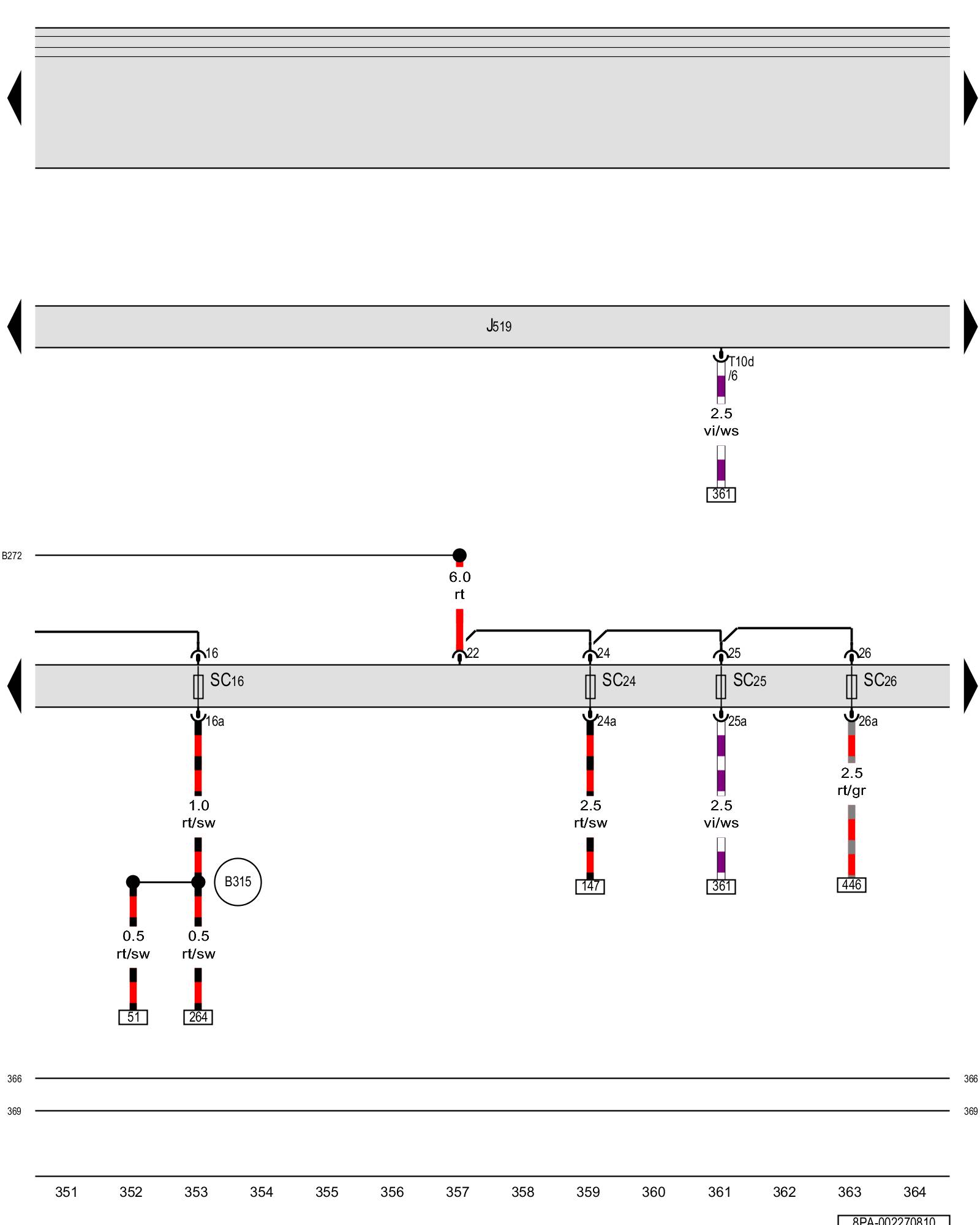

J519 - Vehicle electrical system control module Control Modules in Interior Of Vehicle

SC16 - Fuse 16 (on fuse panel C) Overview Of Fuses

SC24 - Fuse 24 (on fuse panel C) Overview Of Fuses

SC25 - Fuse 25 (on fuse panel C) Overview Of Fuses

SC26 - Fuse 26 (on fuse panel C) Overview Of Fuses

T10d - 10-pin connector

(366) - Ground connection 1 (in main wiring harness)

(369) - Ground connection 4 (in main wiring harness)

(B272) - Positive connection (30) (in main wiring harness)

(B315) - Positive connection 1 (30a) (in main wiring harness)

Previous Diagram 2/26 (Tracks 337-350)

Next Diagram 2/28 (Tracks 365-378)
