Diagram 101/23 (Tracks 295-308)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

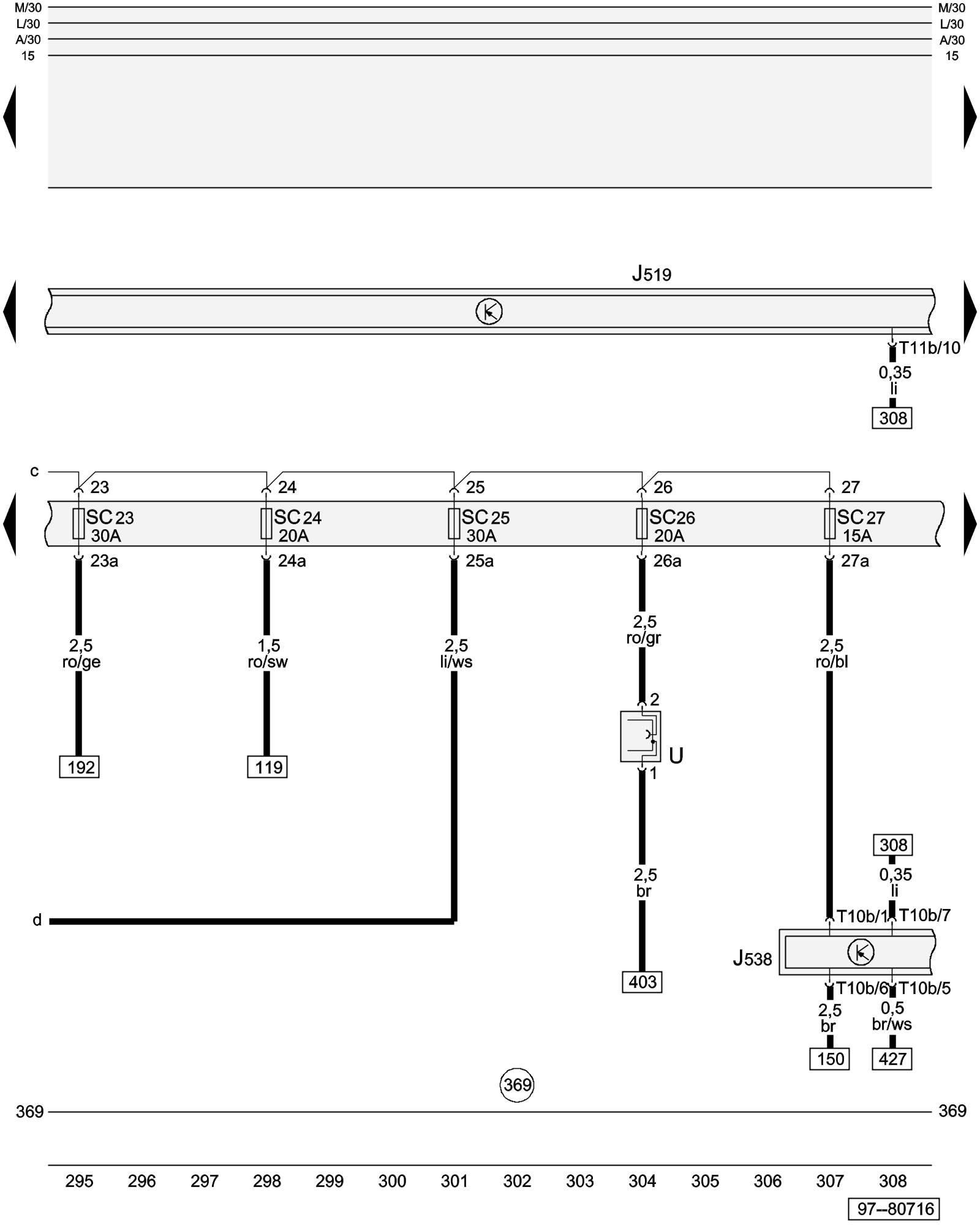

Fuel Pump (FP) Control Module, Socket, Fuses (on fuse panel)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle Electrical System Control Module Control Modules in Interior Of Vehicle

J538 - Fuel Pump (FP) Control Module Control Modules in Interior Of Vehicle

SC23 - Fuse 23 (on fuse panel C) Overview Of Fuses

SC24 - Fuse 24 (on fuse panel C) Overview Of Fuses

SC25 - Fuse 25 (on fuse panel C) Overview Of Fuses

SC26 - Fuse 26 (on fuse panel C) Overview Of Fuses

SC27 - Fuse 27 (on fuse panel C) Overview Of Fuses

T10b - 10-Pin Connector, black (Connector A)

T11b - 11-Pin Connector, black (Connector A)

U - Socket

(369) - Ground Connection 4 (in main wiring harness)

Previous Diagram 101/22 (Tracks 281-294)

Next Diagram 101/24 (Tracks 309-322)
