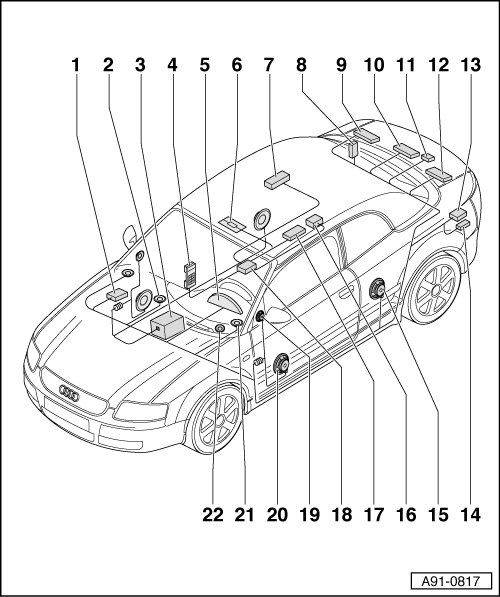

Telephone/Telematics Component Locations

Telephone/Telematics Component Locations





1 CD Changer (R41)

• In the glove compartment

2 Inside Loudspeaker (R70)

• In front instrument panel, center

3 Operating Electronics, Navigation Control Module (J402)

• In the top of the center console.

4 Telephone Handset (R37)

• On the center console at the top and on the right side

5 Instrument Cluster Display

• Instrument cluster, removing and installing. Refer to =>
Instrument Panel, Gauges and Warning Indicators Instrument Panel, Gauges and Warning Indicators

6 Front Interior Light With Emergency Call Button/Roadside Assistance Button/Telephone Microphone

• In Front Interior Light

• Roadside Assistance Button and Emergency Call Button, removing and installing, refer to => [ Emergency Roadside Assistance Call Button ] Navigation System

7 Telematics Auxiliary Antenna (R90)

• Behind the right side trim

• Removing and installing, Refer to => [ Antenna Tuner ] Radio System

8 Digital Sound System Control Module (R12)

• In the luggage compartment behind the right side trim

9 Right Antenna Module (R109)

• Behind the rear lid trim

10 Telephone Antenna (R65)

• Behind the rear lid trim

• Removing and installing, Refer to => [ Antenna Tuner ] Radio System

11 Navigation System Antenna (R50)

• Behind the rear lid trim

• Overview, refer to => [ Rear Lid Antennas ]

• Removing and installing, refer to => [ Navigation Antenna ] Navigation System

12 Left Antenna Module (R108)

• Behind the rear lid trim

13 Navigation Interface (R94)

• In the luggage compartment behind the left trim

14 Navigation/TV Tuner (J415)

• In the luggage compartment behind the left trim

15 Left Rear Speaker (R4)/Right Rear Speaker (R5)

• In the lower side trim

16 Fax/laptop Connector (R73)

• In center console, bottom

• Removing and installing, Refer to => [ Fax/laptop Connector ] Telephone/Telematics System

17 Function Selector Switch II (E272)

• In center console, bottom

• Removing and installing, refer to => [ Telematics Function Selector Switch II ] Telephone/Telematics System

18 Telephone/Telematics Control Module (J526)

• In electronics box under right front seat

• Removing and installing, Refer to => [ Telephone/Telematics Control Module ] Telephone/Telematics System

19 Left Front Treble Speaker (R20)/Right Front Treble Speaker (R22)

• In the top of the doors

20 Left Front Bass Speaker (R21)/Right Front Bass Speaker (R23)

• In bottom of the door.

21 Left Front Midrange Speaker (R103)/Right Front Midrange Speaker (R104)

• In the instrument panel on the left and right side

22 Telematics Auxiliary Speaker (R91)

• In driver's side storage compartment

• Removing and installing, Refer to => [ Telematics Auxiliary Speaker ] Radio System
