Ground Connections

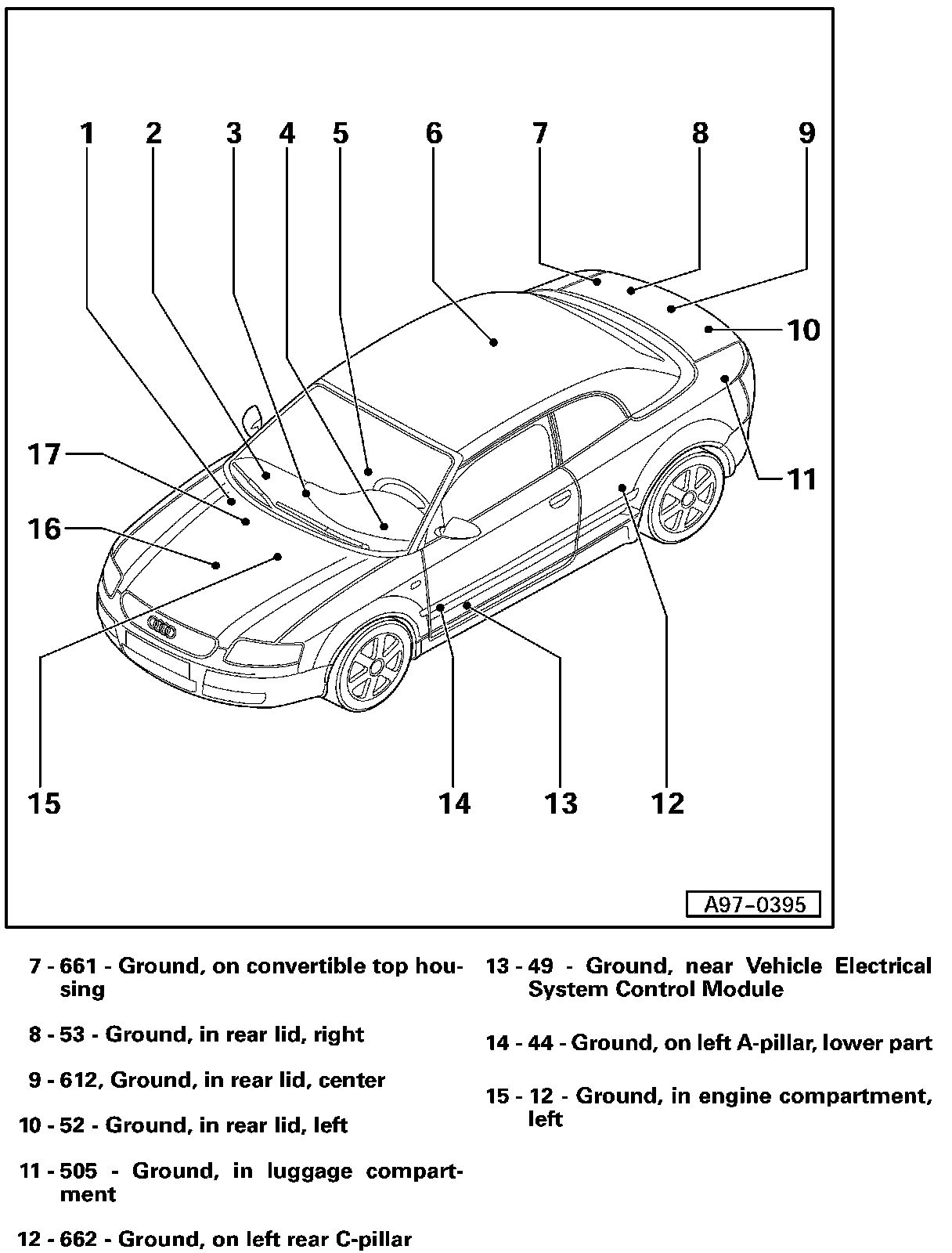

Ground Connections (part 1):

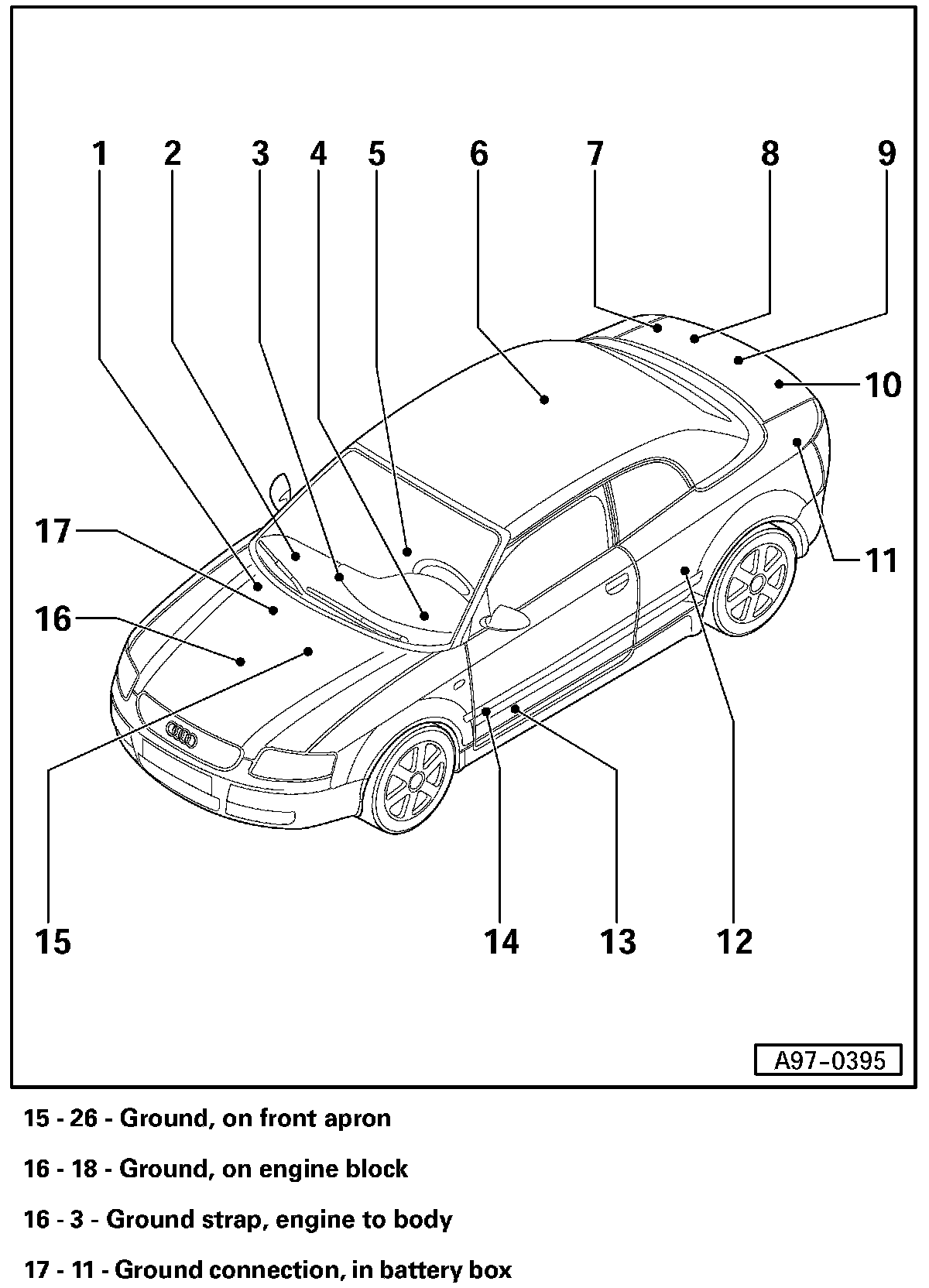

Ground Connections (Part 2):

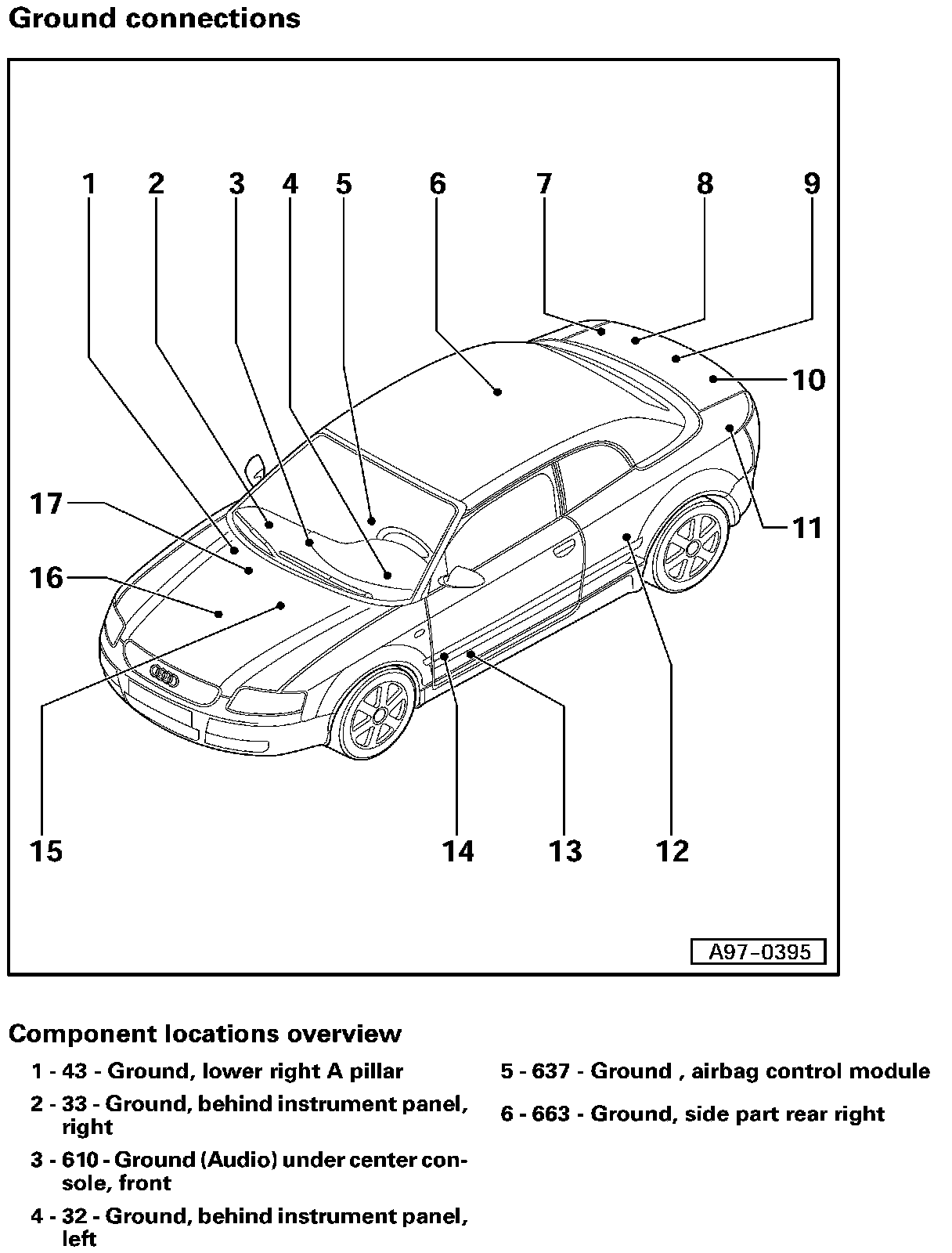

Ground Connections (Part 3):
