Cylinder Head, Valvetrain

Special Tools





Special tools, testers and auxiliary items required

• Pressure hose (VW 653/3)

• Spark Plug Removal Tool (3122 B)

• Valve Seal Removal Tool (3364)

• Valve Stem Seal Driver (3365)

• Valve Cotter Disassembly and Assembly Device (VAS 5161)





Special tools, testers and auxiliary items required

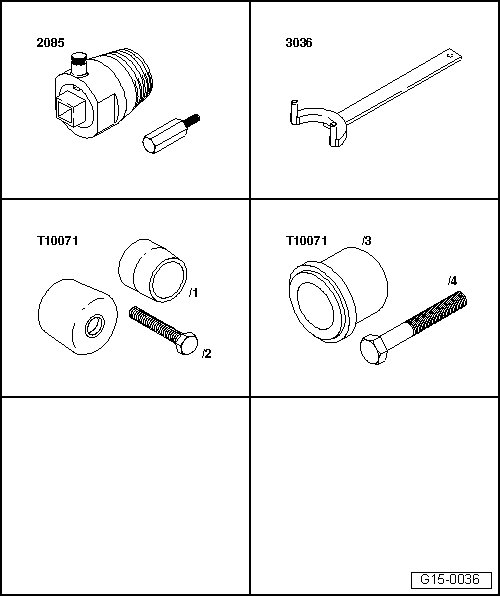

• Seal Remover (2085)

• Counter Holder Tool (3036)

• Seal Installer (3241)

• Assembly Tool (T10071)





Special tools, testers and auxiliary items required

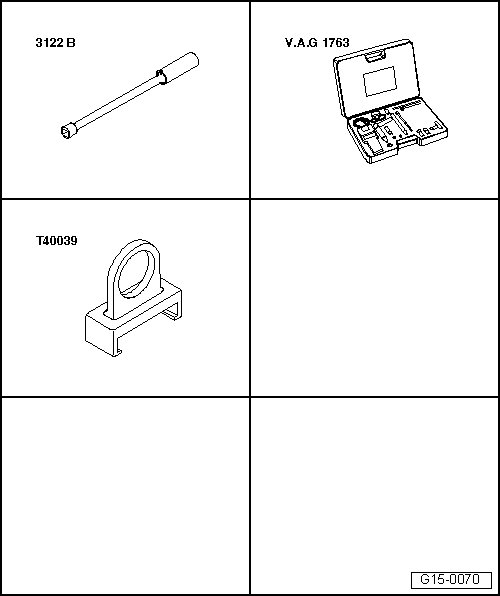

• Spark plug removal tool (3122 B)

• Compression tester (V.A.G 1763)

• Ignition Coil Puller (T40039)

Special tools, testers and auxiliary items required

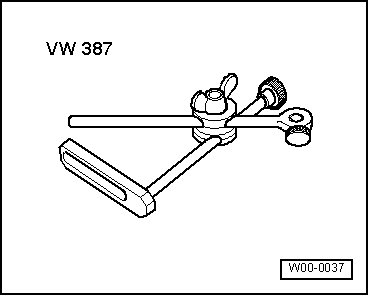

• Dial Gauge Holder (VW 387)

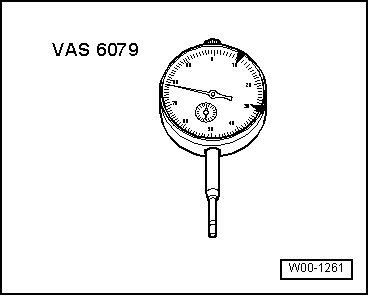

• Dial Gauge (VAS 6079)

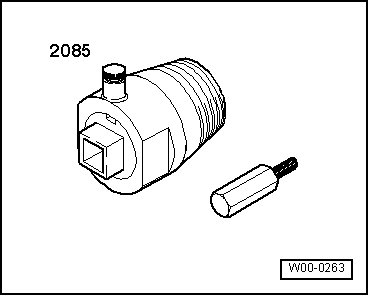

• Seal Puller - General Useage (2085)

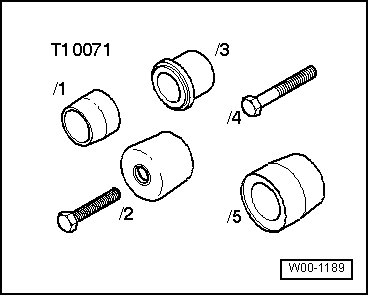

• Assembly Tool (T10071)





• Bracket For Chain Adjustment (3366)
