Component Locations, Overview
Component Locations, Overview
Components A to F are not shown in the exploded view.
A - Brake Light Switch -F- and Brake Vacuum Vent Valve Switch -F47-
- In footwell on pedal bracket near brake pedal
B - Data Link Connector (DLC)
- In knee protection on driver's side
C - Fuel Pump (FP) Relay -J17-
- In the micro-central electrics behind storage compartment on driver' side, relay position 4
- Installation location
D - Clutch Vacuum Vent Valve Switch -F36-
- In footwell on pedal bracket near brake pedal
E - Throttle Position (TP) Sensor -G79- and Sender -2- for accelerator pedal position - G185-
- In footwell on accelerator pedal (both sensors are located in one housing)
F - Electronic Power Control (EPC) warning lamp -K132-
- In instrument cluster
- With Electronic Power Control (EPC) warning lamp -K132-. Notes for EPC warning lamp
- With exhaust Malfunction Indicator Lamp (MIL). Notes for Malfunction Indicator Lamp (MIL)

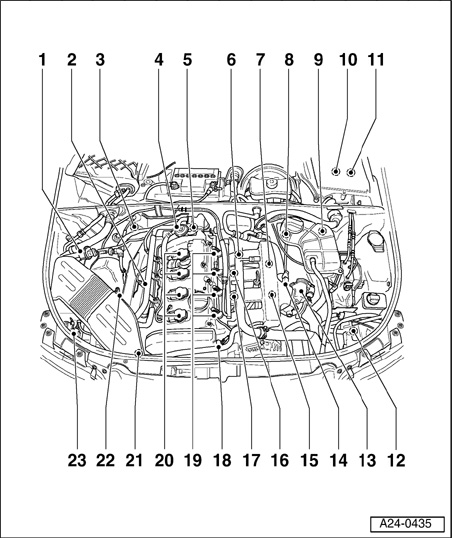

1 - Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80-
2 - Heated Oxygen Sensor (HO2S) -G39- 55 Nm
- Constant oxygen sensor
- Check Oxygen Sensor (O2S) and oxygen sensor control before Three Way Catalytic Converter (TWC)
- Check oxygen sensor aging of oxygen sensor before catalytic converter
- Check oxygen sensor heating for Oxygen Sensor (O2S) before Three Way Catalytic Converter (TWC)
3 - Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) -G130- 55 Nm
- Check Oxygen Sensor (O2S) and oxygen sensor control behind Three Way Catalytic Converter (TWC)
- Check oxygen sensor heater for Oxygen Sensor (O2S) behind Three Way Catalytic Converter (TWC)
4 - Combi valve for secondary air inlet
- Checking, removing and installing:
5 - Engine Coolant Temperature (ECT) Sensor -G62-
- If necessary, release pressure of cooling system before removing
6 - Engine Speed (RPM) Sensor -G28-
7 - Secondary Air Injection (AIR) Solenoid Valve -N112-
- Location
- Connector green
8 - Bracket for connectors
- Location
- Accessible with coolant expansion tank removed and moved to side
9 - Bracket for connectors
- Location
- Accessible with coolant expansion tank removed and moved to side
10 - Electronics box (plenum chamber)
- Location for Motronic Engine Control Module (ECM) -J220- with Barometric Pressure (BARO) Sensor -F96-
- Location for Motronic Engine Control Module (ECM) Power Supply Relay -J271-
- Installation locations
- Check voltage supply of Engine Control Module (ECM)
- Procedure to follow after open circuit in voltage supply
- Replacing Engine Control Module (ECM)
- Component location for Engine Electronics Fuse -S282- for Motronic
11 - Electronics box (plenum chamber)
- Location for Secondary Air Injection (AIR) Pump Relay -J299-
- Check Secondary Air Injection (AIR) Pump Relay -J299-:
12 - Charge Air Pressure Sensor -G31-
- Location: Charge Air Pressure Sensor -G31- is installed into top of charge air cooler
13 - Throttle Valve Control Module -J338-
- With Throttle drive (power accelerator activation) -G186-, Angle sensor -1- for throttle drive (power accelerator activation) -G187- and Angle sensor -2- for throttle drive (power accelerator activation) -G188-
- When replacing, perform adaptation
14 - Intake Air Temperature (IAT) Sensor -G42-
15 - Recirculating valve for turbocharger -N249-
- Location
16 - Knock Sensor (KS) 1 -G61-
17 - Knock Sensor (KS) 2 -G66-
18 - Camshaft Position (CMP) Sensor -G40-
19 - Fuel Injectors
- Cylinder 1 Fuel Injector -N30-
- Cylinder 2 Fuel Injector -N31-
- Cylinder 3 Fuel Injector -N32-
- Cylinder 4 Fuel Injector -N33-
20 - Ignition Coils
- Ignition Coil 1 with Power Output Stage -N70-
- Ignition Coil 2 with Power Output Stage -N127-
- Ignition Coil 3 with Power Output Stage -N291-
- Ignition Coil 4 with Power Output Stage -N292-
21 - Wastegate Bypass Regulator Valve -N75-
22 - Mass Air Flow (MAF) Sensor -G70-
23 - Secondary Air Injection (AIR) Pump Motor -V101-
Fig. 1 Locations on connector bracket
The following connections are located underneath the coolant expansion tank:
1 - 3-pin connector, blue
For Knock Sensor (KS) 2 -G66-
1 - 4-pin connector, brown
For Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) -G130- and Oxygen Sensor (O2S) Heater 1 -Z29- (bank 1, sensor 2)
3 - 3-pin connector, grey
For Engine Speed (RPM) Sensor -G28-
4 - 3-pin connector, green
For Knock Sensor (KS) 1 -G61-
5 - 6-pin connector, black
For Oxygen Sensor (O2S) -G39- and Oxygen Sensor (O2S) Heater -Z19- (bank 1, sensor 1)
Fig. 2 Location of Fuel Pump (FP) Relay -J17-
- on the 9-unit relay carrier in driver's footwell, left, position 1
Checking Fuel Pump (FP) Relay -J17-
Fig. 3 Location of Brake Light Switch -F- and Brake Vacuum Vent Valve Switch -F47-, Clutch Vacuum Vent Valve Switch -F36-
1 - Brake Light Switch -F-, Brake Vacuum Vent Valve Switch -F47-
2 - Clutch Vacuum Vent Valve Switch -F36-
Removing and installing switches

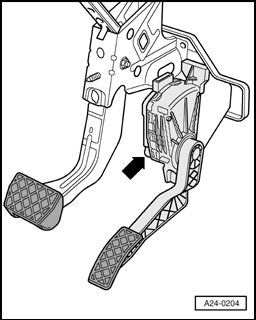

Fig. 4 Location of Throttle Position (TP) Sensor 1 -G79- and Sender -2- for accelerator pedal position -G185-
- Both the Throttle Position (TP) Sensor 1 -G79- and the Sender -2- for accelerator pedal position -G185- are stored in one housing.
Fig. 5 Location of Engine Control Module (ECM) in electronics box (plenum chamber)
Replacing Engine Control Module (ECM) (without metal anti-theft housing)
Replacing Engine Control Module (ECM) (with metal anti-theft housing)
Fig. 6 Component locations in electronics box (plenum chamber).
1.1 - Not used
1.2 - Not used
2 - Motronic Engine Control Module (ECM) Power Supply Relay -J271-
3 - Secondary Air Injection (AIR) Pump Relay -J299-
4 - Not used
A - Fuse S282 for engine electronics
B - Fuse S130 for secondary air pump
C - Not used
Fig. 7 Location of Secondary Air Injection (AIR) Solenoid Valve -N112- and Recirculating valve for turbocharger -N249-
- Location: underneath intake line
1 - Secondary Air Injection (AIR) Solenoid Valve -N112-
2 - Recirculating valve for turbocharger -N249-
NOTE: The illustration shows bottom view of intake line.
Fig. 8 Location of Charge Air Pressure Sensor -G31-
Charge Air Pressure Sensor -G31- (arrow) screwed into top of charge air cooler.
