Campaign - Bluetooth(R) Functionality Enabling

91 06 15

June 23, 2006

2012425

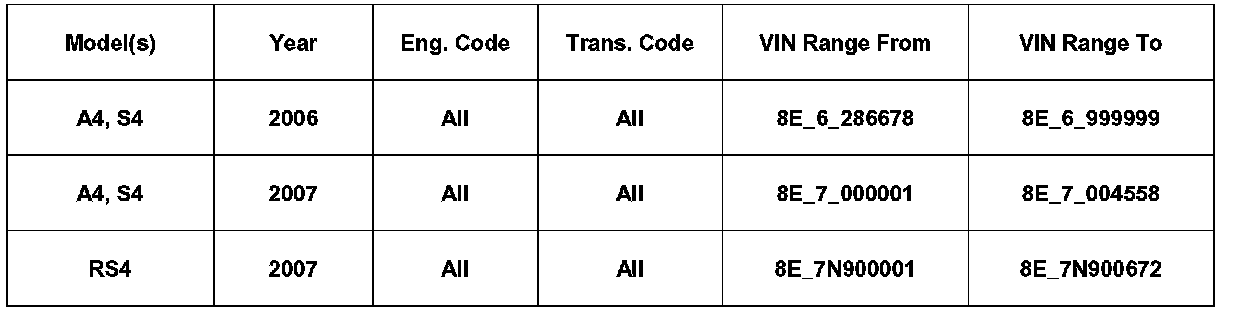

Applicable Vehicles

Condition

Vehicle must meet ALL of the following criteria.

1. Procedure is valid only for vehicles that show the IR code in the OTIS View Campaign inquiry screen on the day of repair.

2. Vehicle must be within the Limited New Vehicle Warranty.

3. Procedure must be performed within the allotted time frame stated in this Technical Service Bulletin.

Procedure must also be performed on applicable vehicles in Dealer inventory.

This Technical Bulletin is in effect for 15 months from date of publication as listed above. After that date, this Technical Service Bulletin will expire and no longer be in effect.

This Required Vehicle Update (RVU) has been proactively released to prevent the following condition from occurring in the vehicle.

It is not possible to bond a cell phone via Bluetooth to the vehicle.

Technical Background

Bluetooth functionality was disabled in the Telephone preparation control unit.

Production Solution

Bluetooth functionality is enabled in the Telephone preparation control unit.

Service

Check, and if necessary, enable Bluetooth functionality in the Telephone preparation control unit.

1. Select Vehicle Self Diagnosis � 77 - Telephone � 10-Adaption � Channel 133.

2. If the stored value is 0, change it to 1 and save the value to enable Bluetooth functionality. If the value is already 1, no further action is required.





Warranty
